AAP Galvanised Steel Reducing Tee, 1-1/2" x 1"
Available

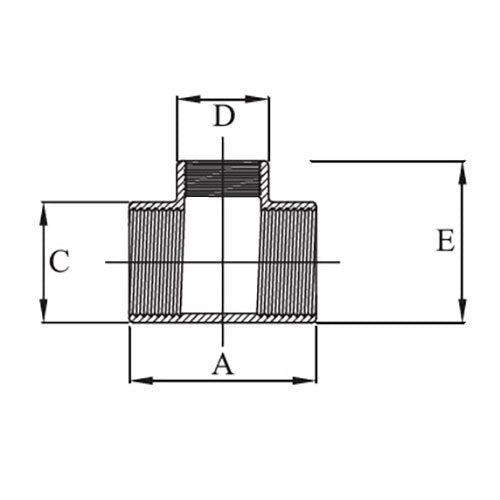

This AAP galvanised reducing tee is a mild steel fitting with BSP threads. It is supplied in 13 sizes, 1-1/2 x 1/2" (40 x 15mm) to 4 x 3" (100 x 80mm). A reducing tee has a run of one size and a branch of a smaller size. This one is threaded inside (female) at all three ports. Sizes are given as the run first, then the branch, for example 1 x 1/2. A is the length of the run, C the run outside diameter, D the branch outside diameter and E the height.
It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It is galvanised. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.
Where this product is used
- Taking a smaller branch off a threaded steel pipe run
- Reducing the size of a branch without a separate bush
- General threaded steel pipework
Features
- 13 sizes, 1-1/2 x 1/2" (40 x 15mm) to 4 x 3" (100 x 80mm)
- Mild steel, galvanised, BS EN 10241:2000
- BSP threads
- Thread: BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Galvanised reducing tee, mild steel |
| Finish | Galvanised |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Female (internal) thread at all three ports |
| Applicable standard | BS EN 10241:2000, steel threaded pipe fittings |
| Test pressure | Sample tested to 5.2 MPa |
| Sizes | 1-1/2 x 1/2" (40 x 15mm) to 4 x 3" (100 x 80mm) (13 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order. Sizes are given as the run first, then the branch.
Related AAP products: AAP Galvanised Steel Equal Tee, AAP Galvanised Steel 90 Degree Elbow, Female-Female, AAP Galvanised Steel Hexagon Bush, AAP Galvanised Steel Reducing Socket.
| Option | Part number | SKU |
|---|---|---|
| 1-1/2" x 1/2" | ST4015G | A0076223 |
| 1-1/2" x 3/4" | ST4020G | A0076224 |
| 2" x 1/2" | ST5015G | A0076227 |
| 2" x 3/4" | ST5020G | A0076228 |
| 1-1/2" x 1" | ST4025G | A0076225 |
| 1-1/2" x 1-1/4" | ST4032G | A0076226 |
| 2" x 1" | ST5025G | A0076229 |
| 2" x 1-1/4" | ST5032G | A0076230 |
| 2" x 1-1/2" | ST5040G | A0076231 |
| 2-1/2" x 2" | ST6550G | A0076232 |
| 3" x 2" | ST8050G | A0076233 |
| 3" x 2-1/2" | ST8065G | A0076234 |
| 4" x 3" | ST9480G | A0076235 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Galvanised Steel Reducing Tee: 1-1/2" x 1"
SKU: A0076225 | Model: ST4025G
AAP ST4025G: AAP Galvanised Steel Reducing Tee, 1-1/2" x 1". Pipe Size (inch): 1-1/2 x 1. Pipe Size (mm): 40 x 25. Length (A): 91.
