AAP 3000lb Socket Weld Reducing Insert, 2" x 1-1/4"

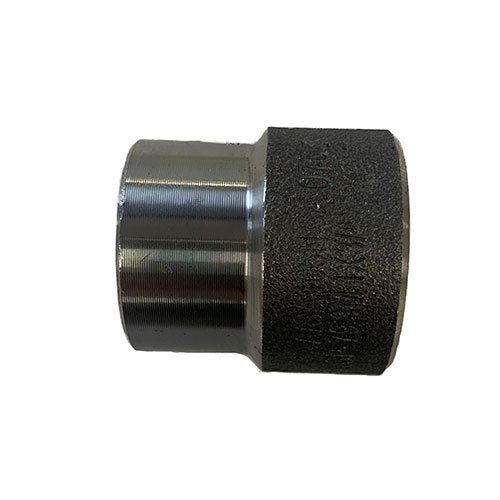

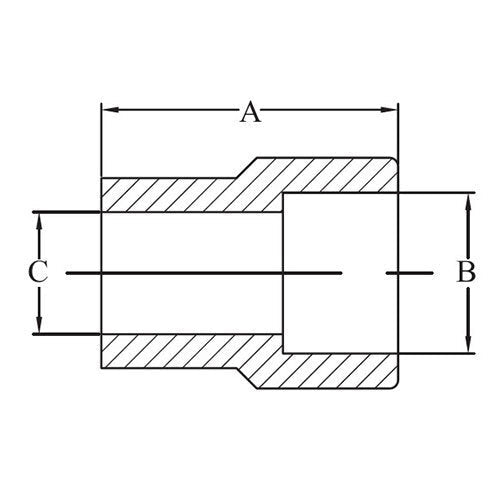

This AAP socket weld reducing insert is a forged carbon steel fitting. It is supplied in 10 sizes, 3/4 x 1/2" (20 x 15mm) to 2 x 1-1/2" (50 x 40mm). A reducing insert fits into the socket of a socket weld fitting to reduce it to a smaller pipe size. The size is given as the larger socket first, then the smaller. A, B and C are the dimensions lettered on the AAP drawing; AAP's table does not name them.

The socket weld high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.

Where this product is used

• High pressure socket weld pipework in carbon steel
• Reducing a socket weld connection to a smaller pipe size
• Fitting a smaller pipe into an existing socket weld fitting

Features

• 10 sizes, 3/4 x 1/2" (20 x 15mm) to 2 x 1-1/2" (50 x 40mm)
• Forged carbon steel, MSS SP-79-2011
• 3000 lb rating
• Rating: 3000 lb, socket weld ends

Key specifications

Choosing the right option

Choose the size to match your pipe, and weld the pipe into the socket in line with your site welding procedure. Sizes are given as the larger socket first, then the smaller.

Related AAP products: AAP 3000lb Socket Weld Reducing Coupling, AAP 3000lb Socket Weld Reducing Tee, AAP 3000lb Socket Weld Coupling, AAP 3000lb Socket Weld 90 Degree Elbow.
