AAP Resilient Swing Check Valve, 2-1/2"

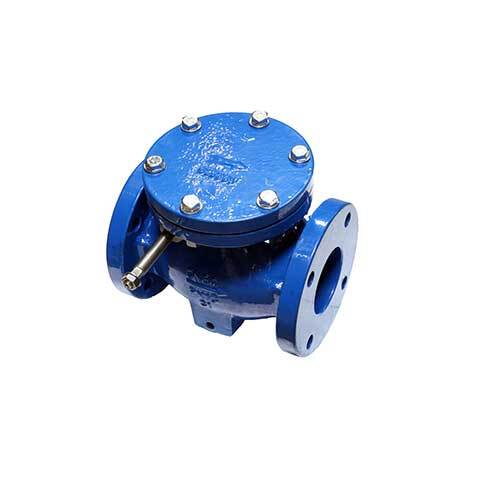

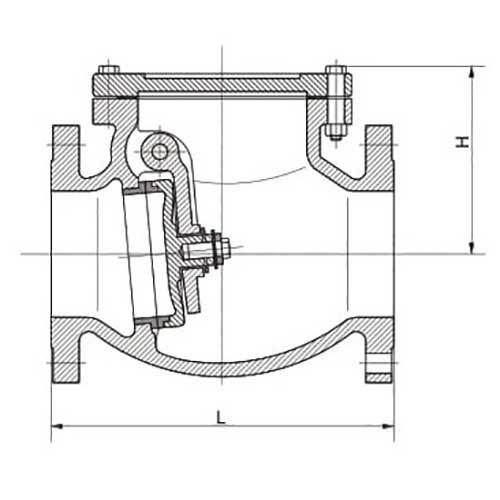

This AAP resilient seat flanged swing check valve has a cast iron body, cover and disc, an EPDM disc trim, a bronze body trim and flanges to AS 2129 Table E. It is supplied in 9 sizes from 2" (50mm) to 12" (300mm). A resilient seat swing check valve lets flow through in a nearly straight line and closes by swinging a hinged disc, here fitted with an EPDM disc trim, against the seat when flow reverses. It can be fitted with a counter lever and weight.

The maximum working temperature is 120°C and the cold working pressure is 1,600 kPa (16 bar), with flanges to AS 2129 Table E. The 2-1/2" valve weighs the same, 14kg as the 2" valve.

Where this product is used

• Water treatment plants
• Pump discharge lines with a counter lever and weight fitted
• Protecting pumps from reverse flow when they stop
• Preventing reverse flow on flanged water pipework

Features

• 9 sizes from 2" (50mm) to 12" (300mm)
• Cast iron body, cover and disc, ductile iron hanger
• EPDM disc trim, bronze body trim, brass side plug
• Flanges to AS 2129 Table E
• Cold working pressure 1,600 kPa (16 bar), maximum 120°C
• Counter lever and weight can be fitted

Key specifications

Choosing the right option

Choose the size to match your Table E flanges, and check the hole count against your mating flange.
