4 in (100 mm) Knife Gate Valve, Retainer Type, Table D | VKGRS100D

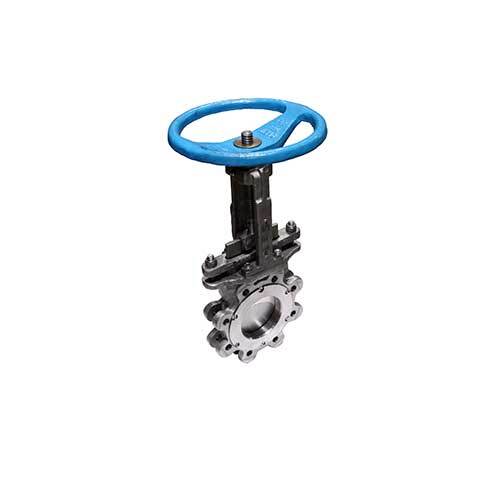

This AAP stainless steel retainer type knife gate valve has a CF8M stainless steel body, a 316 stainless steel gate and flanged ends to AS 2129 Table D (manufacturer-stated). It is supplied in 5 sizes from 4 in (100 mm) to 12 in (300 mm).

A knife gate valve closes with a thin flat gate that slides across the line and cuts through thick or solids-laden fluid, which is why it is used on slurries, effluent and pulp where a wedge gate would clog. AAP says its stainless steel knife gate valves are designed for inline service, and that a support flange should be used if the valve is installed on a dead end.

AAP gives a maximum working temperature of 100 degrees C and a cold working pressure of 1,034 kPa (10.34 bar), with a design to MSS SP-81 and flanges to AS 2129 Table D (all manufacturer-stated). The seat is NBR held in a retainer, with a CF8M body and a 316 stainless steel gate.

AAP can also supply EPDM, PTFE, stainless steel metal, Viton, ceramic and polyurethane seats for this valve (manufacturer-stated). Ask AIMS if your fluid or temperature needs a different seat.

Where this product is used

• Tailings, slurries and mining process lines
• Effluent, abattoir waste and water treatment
• Paper pulp, sugar and food processing lines
• Isolation on lines with solids that would foul a wedge gate valve

Features

• 5 sizes from 4 in (100 mm) to 12 in (300 mm)
• CF8M body with a 316 stainless steel gate and an NBR seat in a retainer
• Other seat materials available from AAP (manufacturer-stated)
• Cold working pressure 1,034 kPa (10.34 bar), maximum 100 degrees C (manufacturer-stated)
• Design to MSS SP-81, flanges to AS 2129 Table D (manufacturer-stated)
• Braided PTFE gland packing

Materials

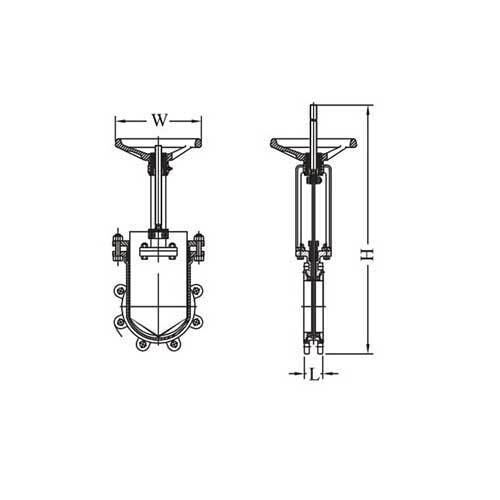

Key specifications

Options and part numbers

Bolt sizes and numbers follow the AAP catalogue for each flange table. Check them against your mating flange before you order.

Selecting the right option

Choose the size and the flange table, D or E, that matches your pipework, and check the bolt size and number of bolts against your flanges. The valve is for inline service, so fit a support flange on a dead end, and check the seat material suits your fluid and temperature.

Related products

See also AAP Stainless Steel Knife Gate Valve, Retainer Type, Table E, AAP Stainless Steel Knife Gate Valve, Metal Seat, Table D, AAP Stainless Steel Knife Gate Valve, Metal Seat, Table E and AAP Stainless Steel Gate Valve, Screwed.
