****Pipe Size 150mm has 20 weeks lead time from the order date. Contact AIMS for assistance.****

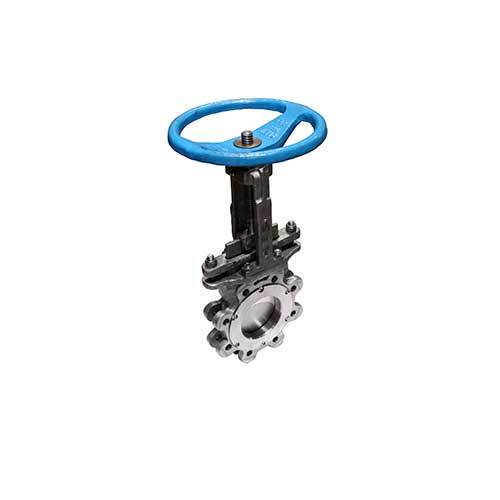

AAP Stainless Steel Knife Gate Valve Table-D
- The stainless Steel Knife gate valve is designed for inline service.
- Should the valve be used on a dead-end application a support flange should be used.
Valve Design
MSS SP-81
Flanges
AS2129
Cold Working Pressure
1034kPa
Max Working Temperature
200°C
Material List
Stem
304 Stainless Steel
Body
CF8M
Gland
CF8M
Gate
304 Stainless Steel
Yoke
CF8
Hand Wheel
Cast Steel
Clevis
CF8
Grease Nipple
304 Stainless Steel
Specifications
Specifications
Specifications
Applications
Applications
Applications
- Tailing, Slurries, Mining, Effluents, Food Processing, Abattoir Waste, Paper Pulp, Sugar Engineering, Water Treatment
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
AAP Stainless Steel Knife Gate Valve Table-D
AAP Stainless Steel Knife Gate Valve Table-D
SKU: A0081341
- Wide Range
- Reliable Services
- Proven Trust
Available
The AAP Stainless Steel Knife Gate Valve Table-D by AAP is a Stainless Steel Gate Valve made of 304 Stainless Steel and designed for inline service. It provides 1034kPa cold working pressure and is suitable for Mining operations.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
****Pipe Size 150mm has 20 weeks lead time from the order date. Contact AIMS for assistance.****
AAP Stainless Steel Knife Gate Valve Table-D
- The stainless Steel Knife gate valve is designed for inline service.
- Should the valve be used on a dead-end application a support flange should be used.
Valve Design
MSS SP-81
Flanges
AS2129
Cold Working Pressure
1034kPa
Max Working Temperature
200°C
Material List
Stem
304 Stainless Steel
Body
CF8M
Gland
CF8M
Gate
304 Stainless Steel
Yoke
CF8
Hand Wheel
Cast Steel
Clevis
CF8
Grease Nipple
304 Stainless Steel
Specifications
Specifications
Specifications
Applications
Applications
Applications
- Tailing, Slurries, Mining, Effluents, Food Processing, Abattoir Waste, Paper Pulp, Sugar Engineering, Water Treatment
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
AAP Stainless Steel Knife Gate Valve Table-D
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The AAP Stainless Steel Knife Gate Valve Table-D by AAP is a Stainless Steel Gate Valve made of 304 Stainless Steel and designed for inline service. It provides 1034kPa cold working pressure and is suitable for Mining operations. |
Regular price
From $1,902.33
Sale price
From $1,902.33
Regular price
Unit price
/per
| AAP | Stainless Steel Gate Valve |
Pipe Size (inch)
4,6,8,10,12
Pipe Size (mm)
100,150,200,250,300
|
Choose your option
AAP Stainless Steel Knife Gate Valve Table-D
AAP Stainless Steel Knife Gate Valve Table-D
SKU: A0081341
Hurry up, only 16 items left in stock.
The AAP Stainless Steel Knife Gate Valve Table-D by AAP is a Stainless Steel Gate Valve made of 304 Stainless Steel and designed for inline service. It provides 1034kPa cold working pressure and is suitable for Mining operations.
