AAP Stainless Gate Valve-Retainer Type Table-E

AAP Stainless Gate Valve-Retainer Type Table-E

SKU: A0081351

Type: Stainless Steel Gate Valve

$1,131.32
$1,131.32
Inc. GST
Buy It Now

Available

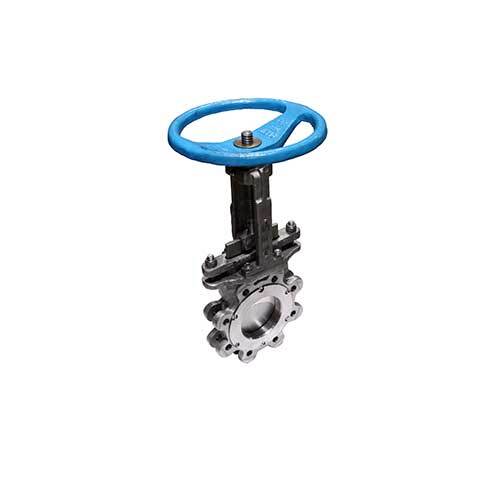

The AAP Stainless Gate Valve by AAP is a Stainless Steel Gate Valve with a 316 Stainless Steel gate. It provides a Cold Working Pressure of 1034kPa and is suitable for flow control systems.

Resources

Stainless Steel Knife Gate Valve Retainer Type (Table E)

  • Stainless Steel Knife gate valve is designed for inline service.
  • Should the valve be used on a dead-end application a support flange should be used.
  • AAP Can also supply the folflowing seats - EPDM, PTFE, Stainless Steel Metal Seats, Viton, Ceramic and Polyurethane

Material List



  • Body - CF8M
  • Gland Packing - Braided PTFE
  • Gland - CF8M
  • Gate - 316 Stainless Steel
  • Yoke - CF8
  • Hand Wheel - Cast Steel
  • Stem - 304 Stainless Steel
  • Clevis - CF8
  • Grease Nipple - 304 Stainless Steel
  • Bearing Housing - CF8
  • Retainer - CF8M
  • Retainer Screw - 316 Stainless Steel
  • Seat - NBR

"

Specifications

  • Valve Design - MSS SP-81
  • flange - AS2129
  • Cold Working Pressure - 1034kPa
  • MAX Working Temperature - 100°C
