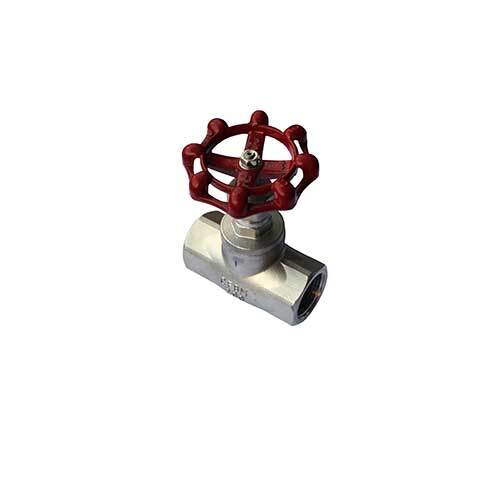

AAP Stainless Steel Globe Valve, 1/2"

This AAP stainless steel globe valve has a CF8M stainless steel body, cap and gland ring, a 316 stainless steel disc and stem, PTFE packing and gasket, and female threaded ends. It is supplied in 6 sizes from 1/2" (15mm) to 2" (50mm).

A globe valve regulates flow with a movable disc that closes down onto a stationary ring seat inside a roughly spherical body. Flow turns through the body, so a globe valve has a higher pressure drop than a gate valve of the same size. The maximum working temperature is 180°C and the cold working pressure is 1,380 kPa (13.8 bar), with a thread to AS 1722.1. The handwheel and name plate are aluminium alloy.

Where this product is used

• Corrosive liquids and harsh environments
• Washdown, marine and coastal pipework where brass or iron would not last
• Chemical and process lines, once material compatibility is checked
• Throttling and regulating flow in stainless steel pipework

Features

• 6 sizes from 1/2" (15mm) to 2" (50mm)
• CF8M stainless steel body, cap and gland ring
• 316 stainless steel disc and stem, PTFE gasket and packing
• Thread to AS 1722.1
• Cold working pressure 1,380 kPa (13.8 bar), maximum 180°C
• Suits corrosive liquids and harsh environments

Key specifications

Choosing the right option

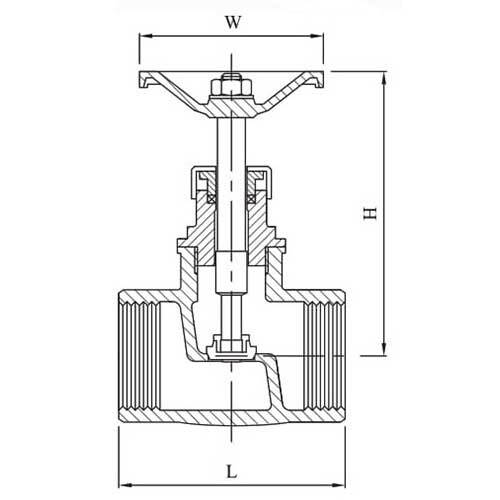

Choose the size to match your pipe thread, and check that CF8M and PTFE suit your fluid and temperature. L is the length of the valve, H is the overall height with the handwheel and W is the width across the handwheel, as shown on the AAP drawing.
