Beaver g316 stainless steel bow shackles, 6mm
Available
Beaver G316 stainless steel bow shackles are grade 316 stainless steel bow screw pin shackles in 6mm to 16mm mm body diameters.
These shackles are not to be used for lifting. For lifting, use a rated Grade S or Grade M shackle.
Where this product is used
- Saltwater, boat and coastal environments
- Food and pharmaceutical processing environments
Features
- Grade 316 (marine grade) stainless steel, polished finish
- Screw pin closure, removable pin for easy connection and disconnection
- High corrosion resistance, suited to saltwater and coastal environments
- Not to be used for lifting
Key specifications
| Specification | Detail |
|---|---|
| Brand | Beaver |
| Product type | Bow Shackle |
Choosing the right option
Choose the diameter to suit the fitting it connects to. This shackle is not rated for lifting: do not use it to lift or suspend loads, and do not use it where failure could injure anyone. This product is not rated for lifting. Do not use it to lift or suspend loads. For lifting applications use a rated lifting product marked with a working load limit (WLL).
For rated lifting shackles see the: Beaver Yellow Pin Grade S Screw Pin Dee Shackle, Beaver Screw Pin Anchor Bow Shackle.

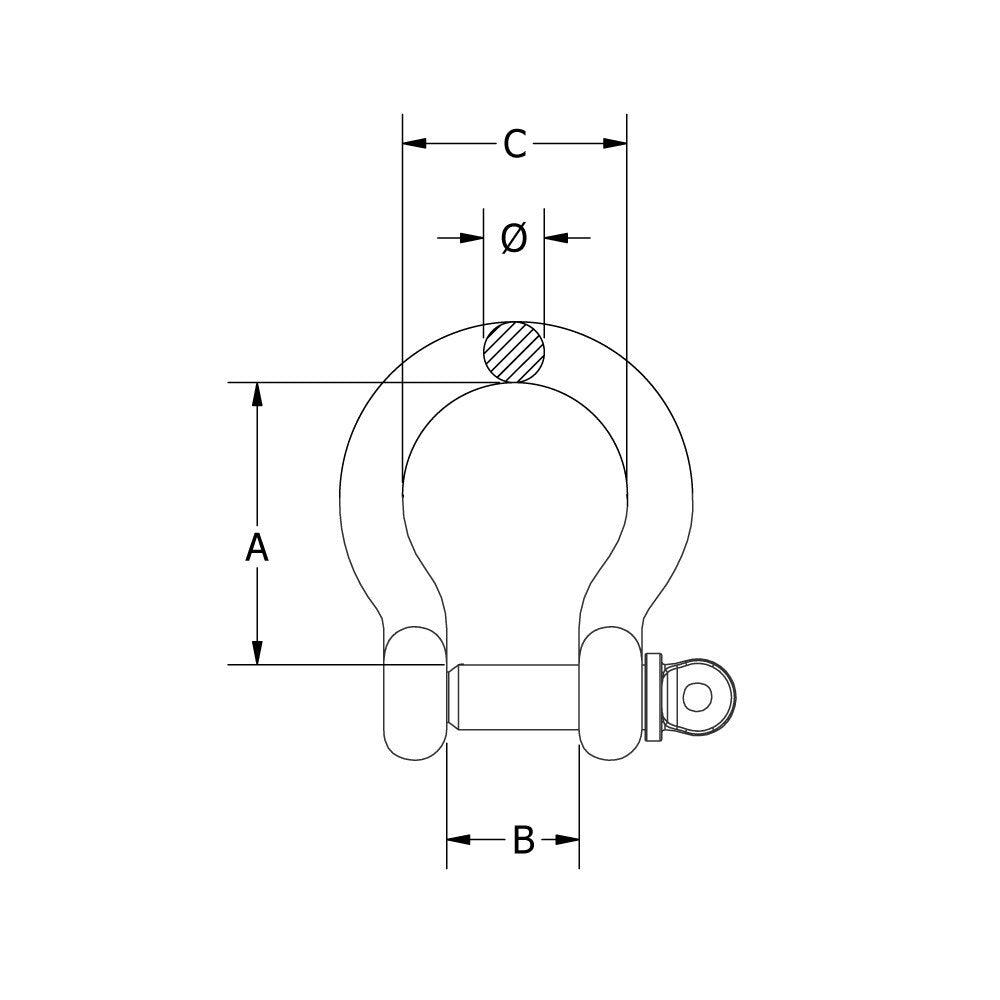

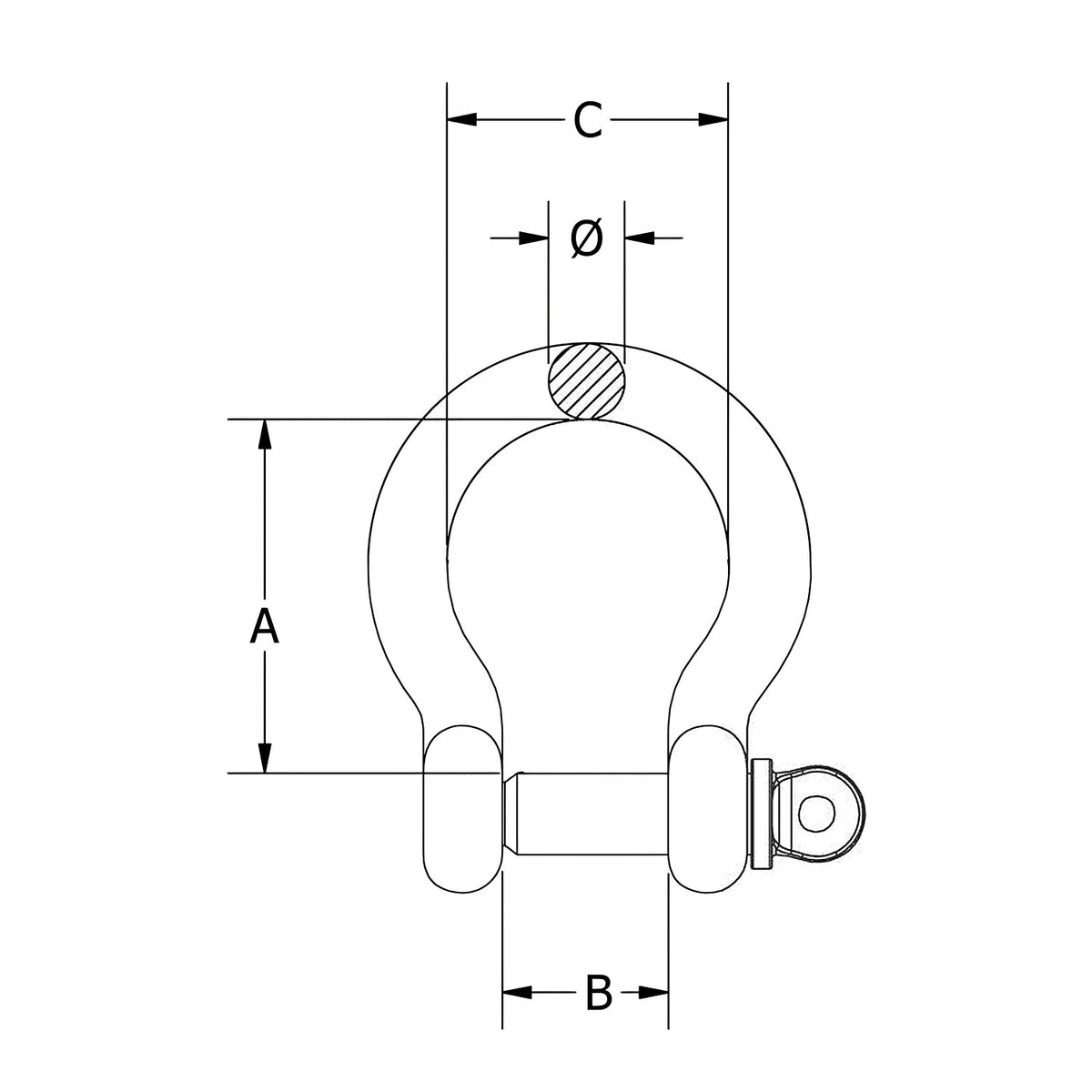

| Code | Body diameter (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Weight each (kg) |
|---|---|---|---|---|---|
| 615506 | 6 | 31 | 13 | 21 | 0.03 |
| 615510 | 10 | 44 | 21.5 | 35.5 | 0.11 |
| 615512 | 12 | 52.5 | 27 | 41 | 0.22 |
| 615516 | 16 | 73.5 | 32 | 54 | 0.49 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Beaver G316 Stainless Steel Bow Shackle: 6mm
SKU: A0190530 | Model: 615506
Beaver g316 stainless steel bow shackles, 6mm. Code: 615506. Body diameter (mm): 6.
