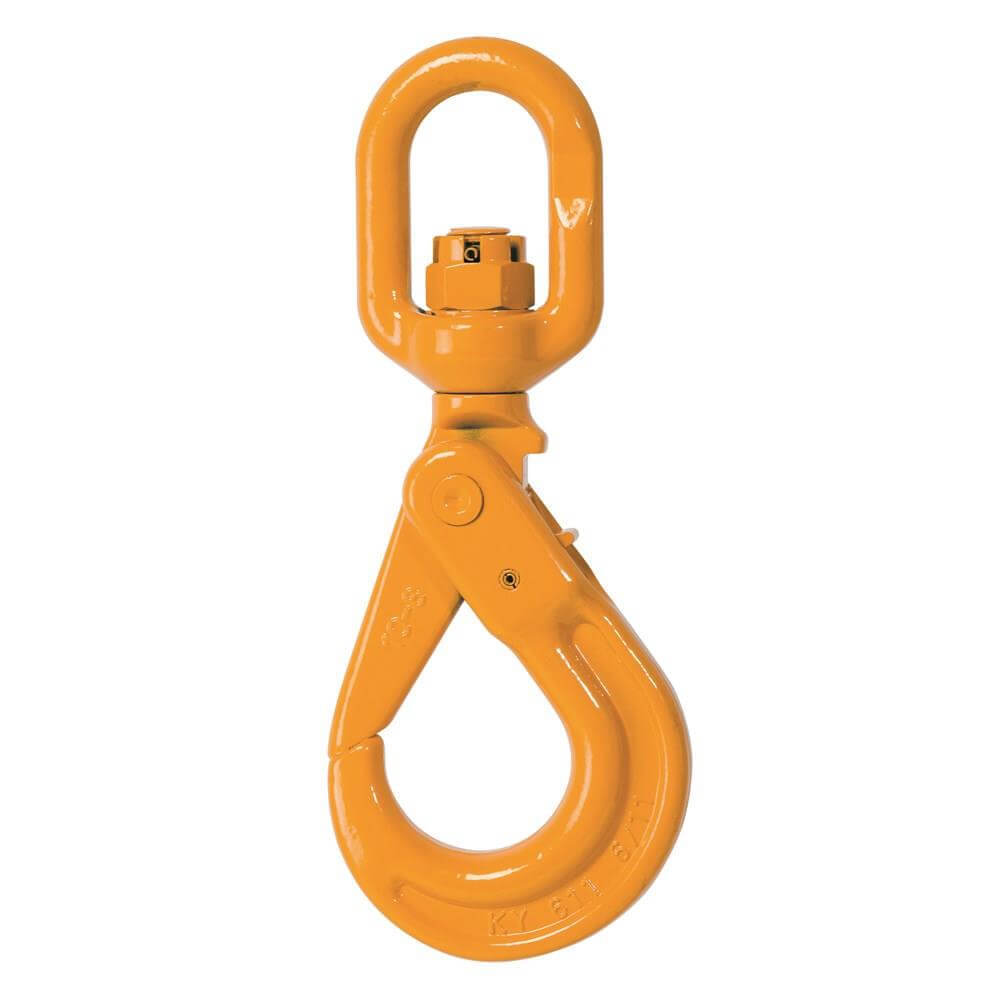

Beaver grade 80 eye swivel self locking safety hooks, 7-8

Beaver Grade 80 eye swivel self locking safety hooks suit 7-8mm to 20mm Grade 80 chain, with working load limits (WLL) of 2,000kg (2 t) to 12,500kg (12.5 t).

Its Grade 80 lifting components are made from heat treated alloy steel, are tested throughout manufacture, and meet AS 3776, Lifting Components for Grade T Chain Slings. They carry distinguishing marks, including the brand, grade and size and a date of manufacture and batch ID.

Where this product is used

• Heavy duty lifting with Grade 80 chain, where a swivel self locking hook is needed
• Chain sling assemblies

Features

• Grade 80 eye swivel self locking safety hook, WLL 2,000kg (2 t) to 12,500kg (12.5 t)
• Does not swivel under load: do not swivel this hook under load
• Replacement trigger kit available for each size
• Marked with brand, grade and size, date of manufacture and batch ID
• Meets AS 3776, Lifting Components for Grade T Chain Slings

Key specifications

Choosing the right option

Chain size is the Grade 80 chain size the component suits.

Choose the size by the WLL and the chain size it must match, and make sure every part of the assembly (chain, link, hook and lifting point) is Grade 80 and rated for the load. Do not swivel this hook under load. If the load must be able to rotate while lifted, use a bearing type swivel hook instead. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.
