Beaver ratchet tie downs, Hook and Keeper / 25 x 5
Available
The is an assemblies comply with AS/NZS 4380.
Its ratchet assemblies are 100% polyester webbing that is heat set, stretched and polyurethane (PU) impregnated, with the lashing capacity stencilled on the webbing and two protective sleeves supplied. Each strap carries a blue polyester safety label and a stitched serial number for traceability, and that capacity is verified by break tests in its NATA laboratories. Lashing capacity, not breaking strength, is the rating to use: never load a tie down beyond its LC, and check the LC of the lowest rated item in the restraint system. Cargo winches are not approved for lifting; do not use these assemblies to lift or suspend loads.
Where this product is used
- Securing cargo on trucks and trailers
- Securing loads for transport
Features
- Seven assemblies from 25mm to 75mm webbing, 450kg to 5,000kg LC
- 100% polyester webbing, heat set, stretched and PU impregnated
- Hook and keeper or black vinyl S hook ends, depending on code
- Two protective sleeves and a lashing capacity marking on the webbing
- Rubber grip handle on the 25mm and 35mm assemblies
- Complies to AS/NZS 4380
Key specifications
| Specification | Detail |
|---|---|
| Brand | Beaver |
| Product type | Ratchet Tie Down |
Supplied with
- Winches shall not be loaded in excess of lashing capacity
- A minimum of two layers of polyester webbing must be wound around the winch drum when tensioning
- Cargo winches are not approved for lifting
Choosing the right option
Beaver's LC is the lashing capacity.
Pick the webbing width and LC to suit the load and the restraint plan, the length to suit the load plus a margin to wind the strap onto the ratchet, and the end fitting to suit the anchor points. The LC of the lowest rated item in the system governs.
Other Beaver load restraint products: the: Beaver 50mm x 9 m Ratchet Tie Down with Hook and Keeper, 2,500kg LC (RTD055PL), Beaver 25mm x 2 m Motorbike Cam Buckle Tie Down with S Hooks, 250kg LC (MBT020), Beaver Safety Cargo Nets with Tie Ropes and Cam Buckles, 2.46 m to 3.44 m, Beaver G70 Ratchet Type Loadbinders with Winged Eye Grab Hooks, 6mm to 13mm Chain.
| Code | Width (mm) | Length (m) | Hook type | Handle | LC (kg) | Weight (kg) |
|---|---|---|---|---|---|---|

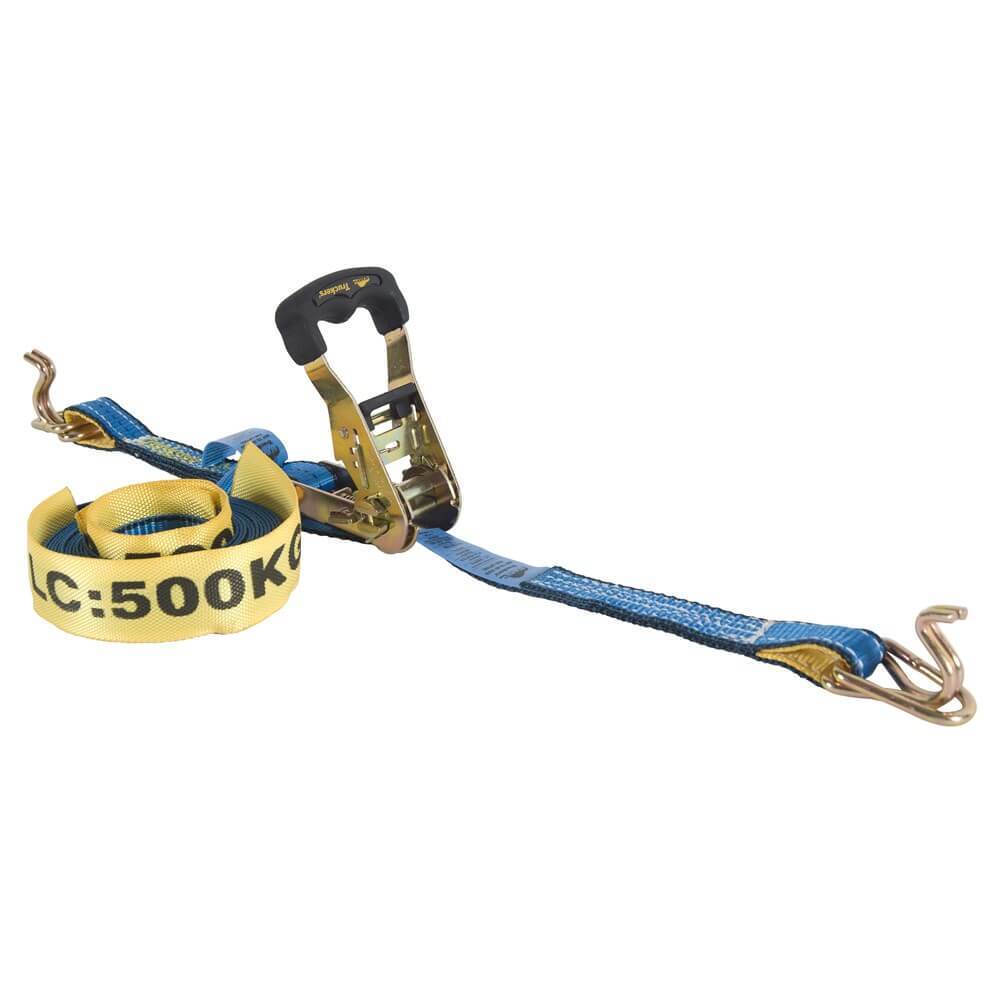

| 349025RB | 25 | 5 | Hook and keeper | Rubber grip handle | 500 | 0.8 |

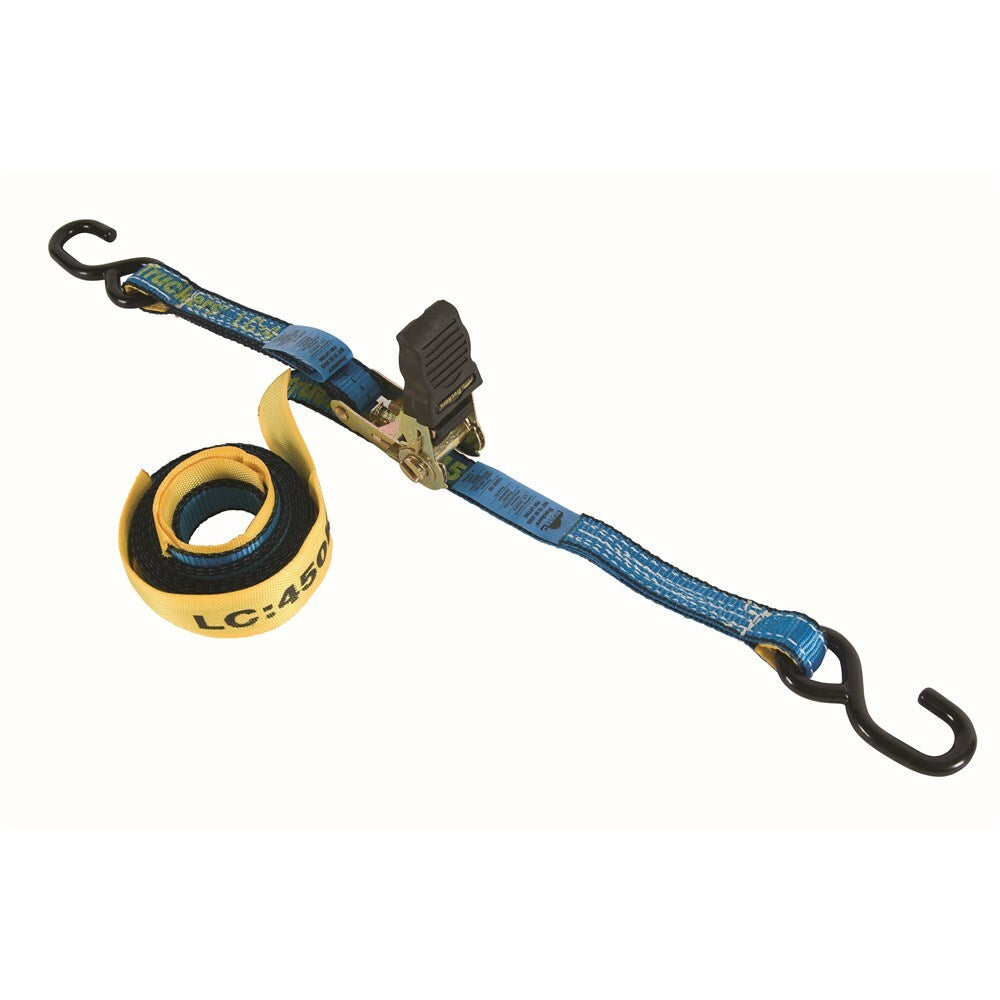

| 349025RSB | 25 | 4 | Black vinyl S hooks | Rubber grip handle | 450 | 0.75 |

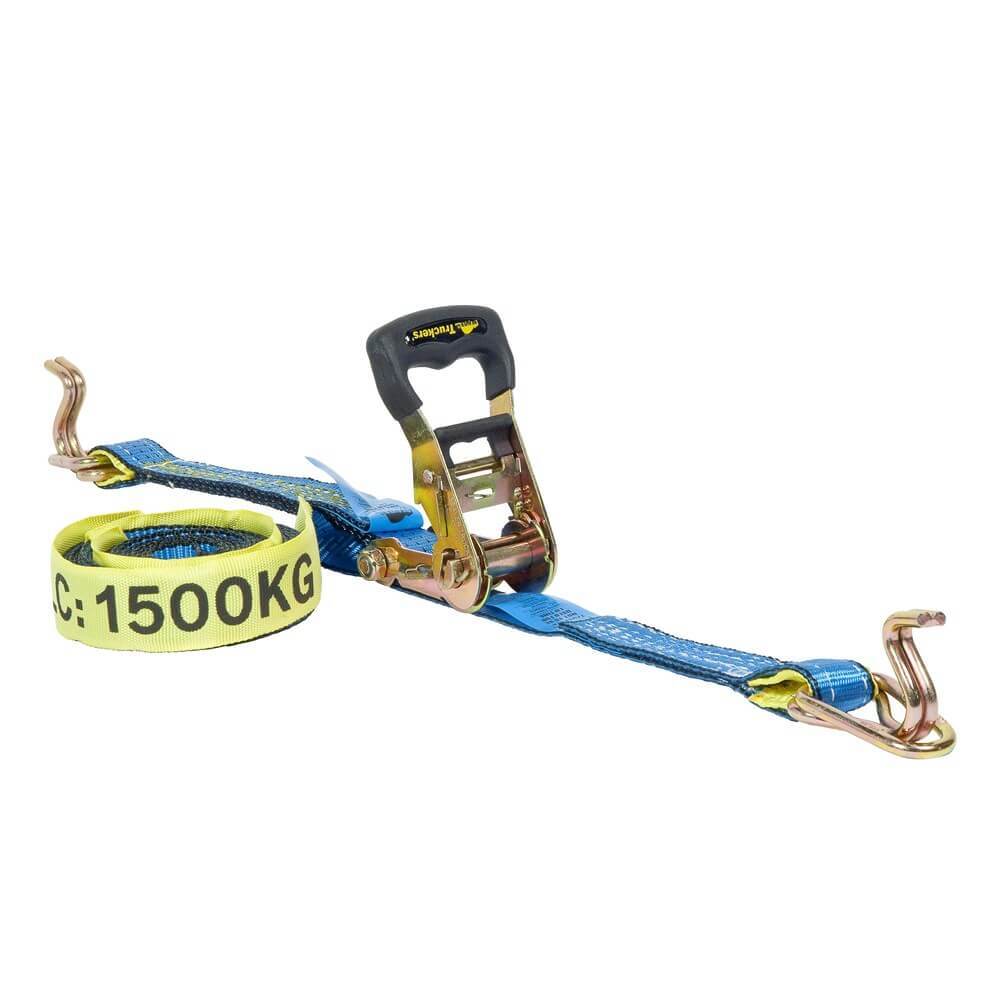

| 349035RB | 35 | 6 | Hook and keeper | Rubber grip handle | 1,500 | 1.6 |
| 349035RSB | 35 | 6 | Black vinyl S hooks | Rubber grip handle | 1,000 | 1.5 |

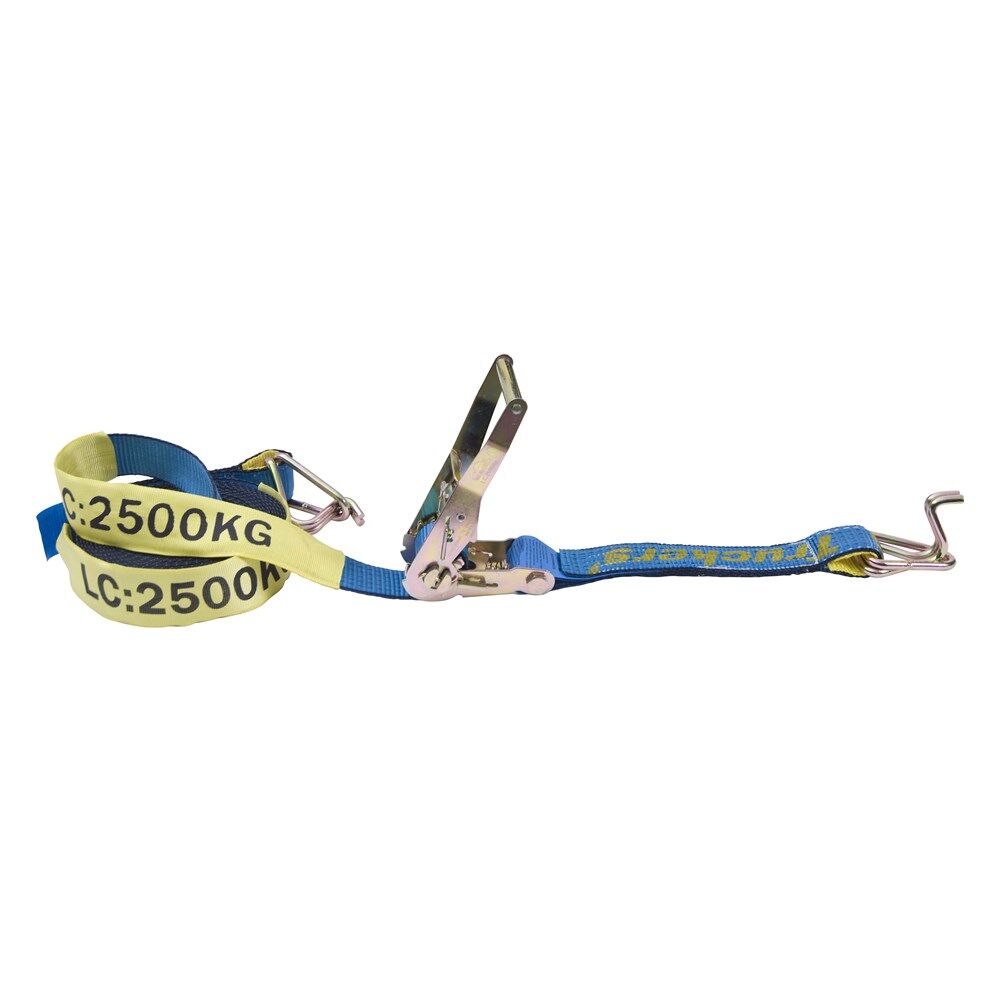

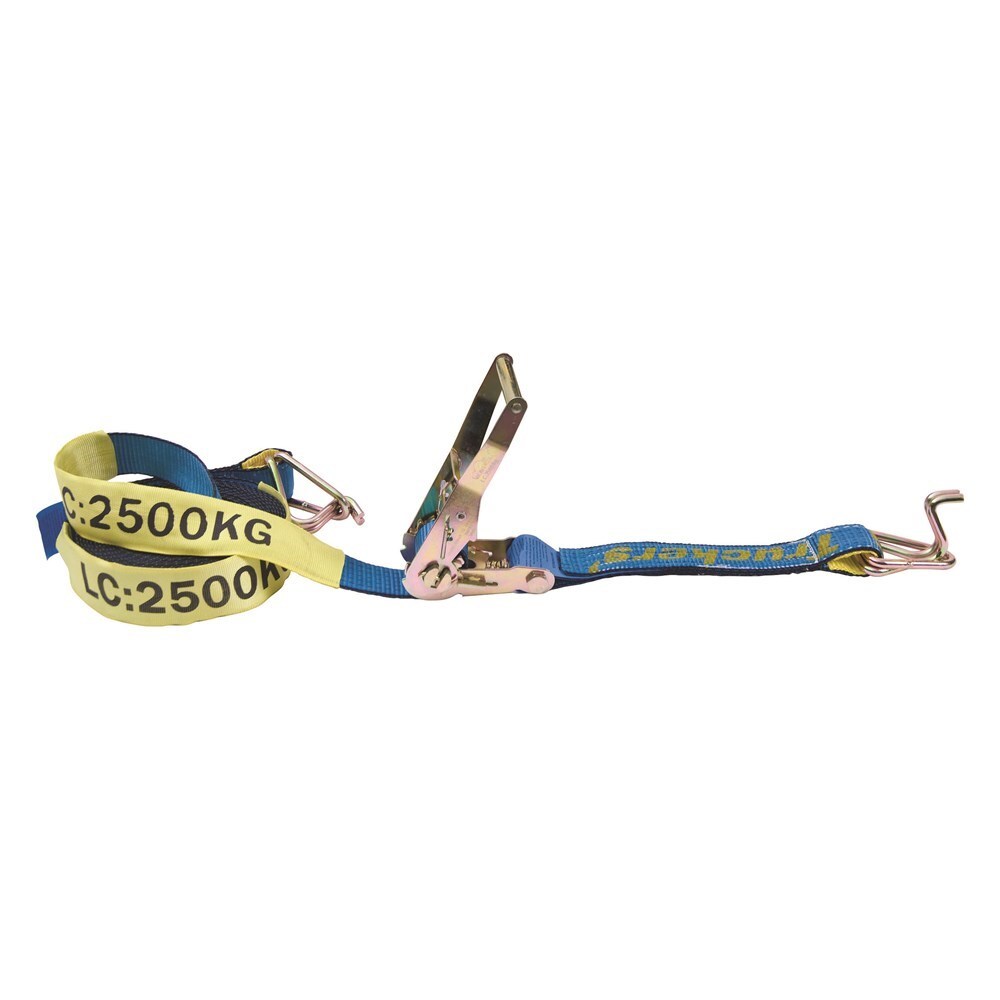

| RTD055PL-4 | 50 | 4 | Hook and keeper | Not | 2,500 | 1.2 |
| RTD055PL-12 | 50 | 12 | Hook and keeper | Not | 2,500 | 3.4 |

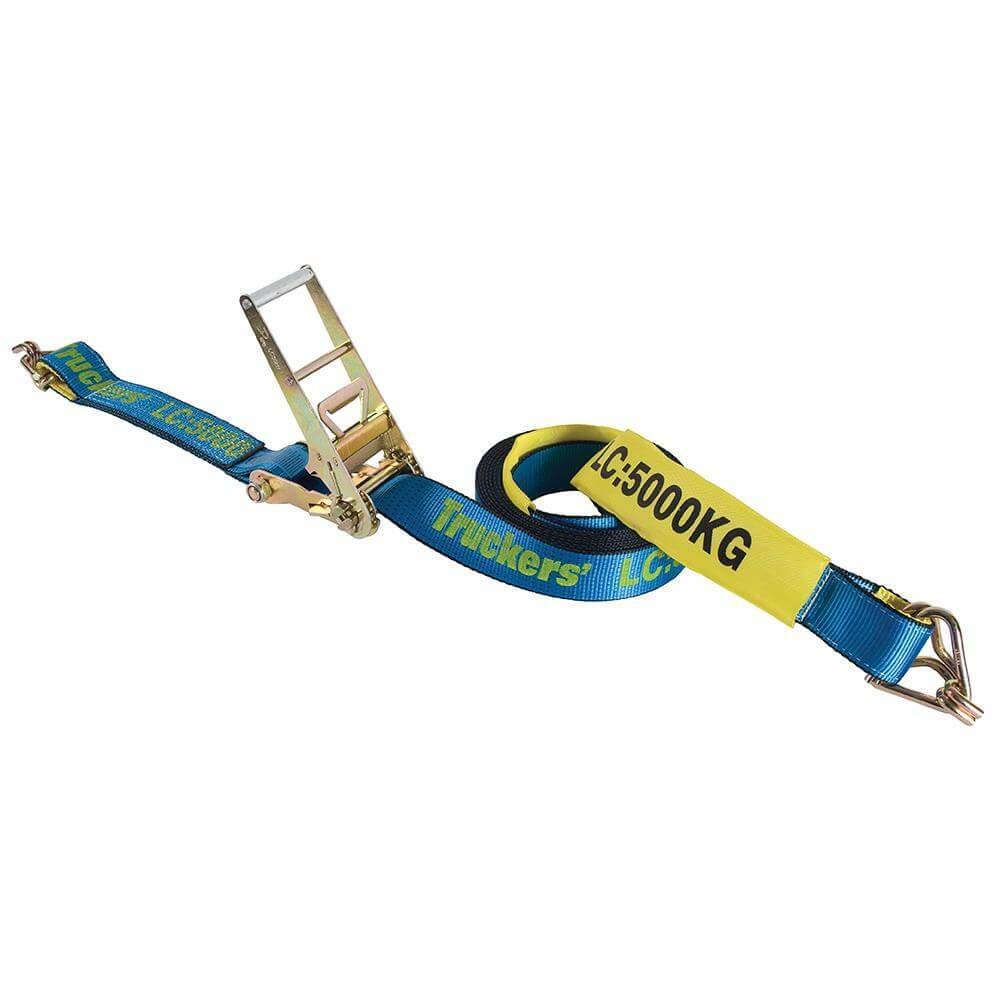

| 349075-12 | 75 | 12 | Hook and keeper | H/Duty (heavy duty) ratchet | 5,000 | 8.2 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Beaver Ratchet Tie Down Assemblies, 25 mm to 75 mm Webbing, 450 kg to 5,000 kg LC: Hook and Keeper / 25 x 5
SKU: A0103108 | Model: 349025RB
Beaver 349025RB 25mm x 5 m ratchet tie down, hook and keeper, 500kg lashing capacity, 0.8kg.
