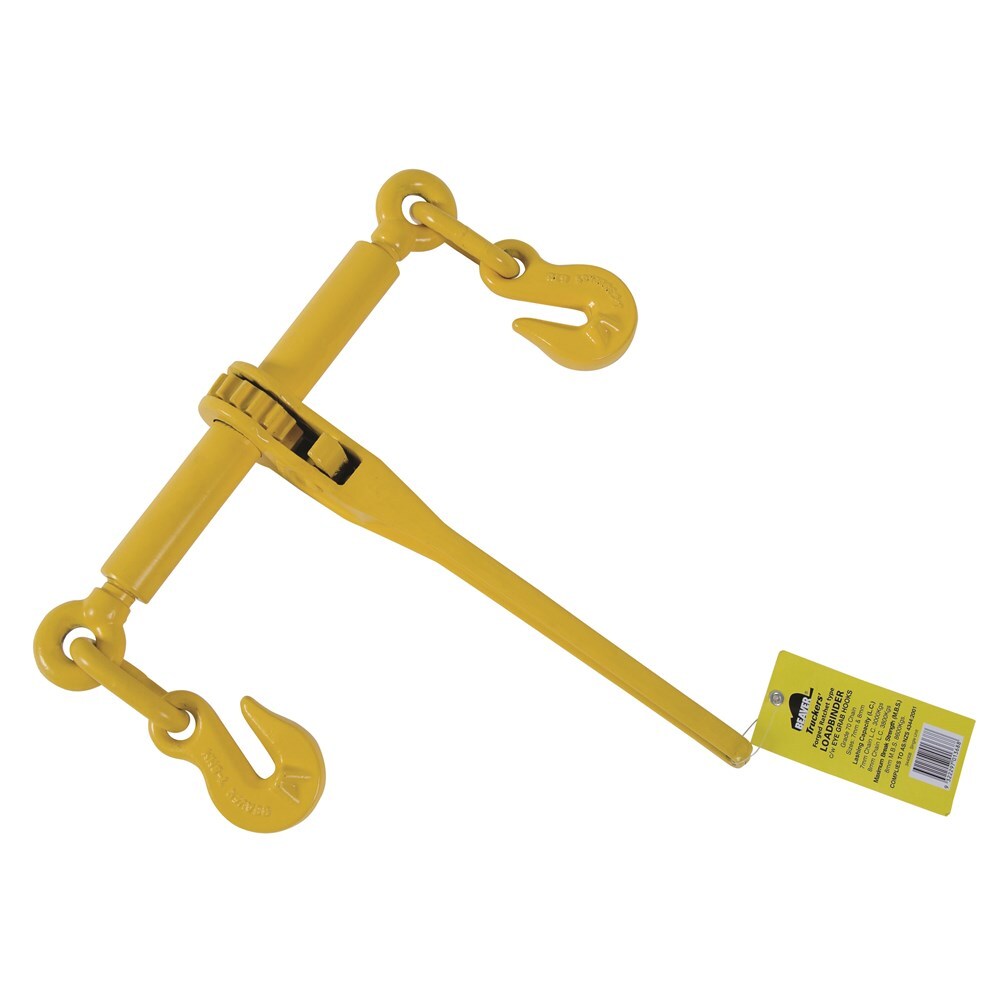

Beaver G70 Ratchet Type Loadbinder, 6 mm, 2,300 kg LC (344006)

The Beaver G70 ratchet type loadbinder tensions Grade 70 transport chain. This listing carries four chain sizes, 6, 7-8, 10 and 13 mm, codes 344006 to 344013, each fitted with winged eye grab hooks and a yellow painted finish (manufacturer-stated). Lashing capacities (LC) run from 2,300 kg to 9,000 kg (manufacturer-stated).

Beaver states the loadbinders are to AS/NZS 4344 (manufacturer-stated). Beaver's note, printed against its grab hook loadbinders: using grab hooks bends the chain link the hook engages and reduces the strength of the chain by 25 percent, so the lashing capacity of the system must be reduced by 25 percent as prescribed in AS/NZS 4344 (manufacturer-stated). The 25 percent figures in the table are AIMS's arithmetic on Beaver's LC.

Beaver states Grade 70 lashings and fittings are not approved for lifting. Do not use this product to lift or suspend loads; for lifting use a rated lifting product marked with a working load limit (WLL).

Where this product is used

• Tensioning Grade 70 transport chain lashings on transport equipment, as Beaver describes its Grade 70 transport chain and fittings (manufacturer-stated)

Features

• Ratchet type loadbinder in four chain sizes, 6, 7-8, 10 and 13 mm (manufacturer-stated)
• Winged eye grab hooks (manufacturer-stated)
• Yellow painted finish, to AS/NZS 4344 according to Beaver (manufacturer-stated)
• Lashing capacities of 2,300, 3,800, 6,000 and 9,000 kg before any grab hook reduction (manufacturer-stated)

Beaver's loadbinder guidelines

• Operate by hand only, from a standing position, and stay clear of the handle, as load binding systems store energy that can release suddenly (manufacturer-stated)
• Inspect the loadbinder before each use for wear, bending, cracks and gouges, and replace it if any are present (manufacturer-stated)
• Use only the appropriate size and grade of chain with the loadbinder (manufacturer-stated)
• Do not use handle extensions such as pipes or cheater bars, as they can overload and weaken the system (manufacturer-stated)
• Check the loadbinder is tight before moving, and stop and recheck tightness frequently (manufacturer-stated)

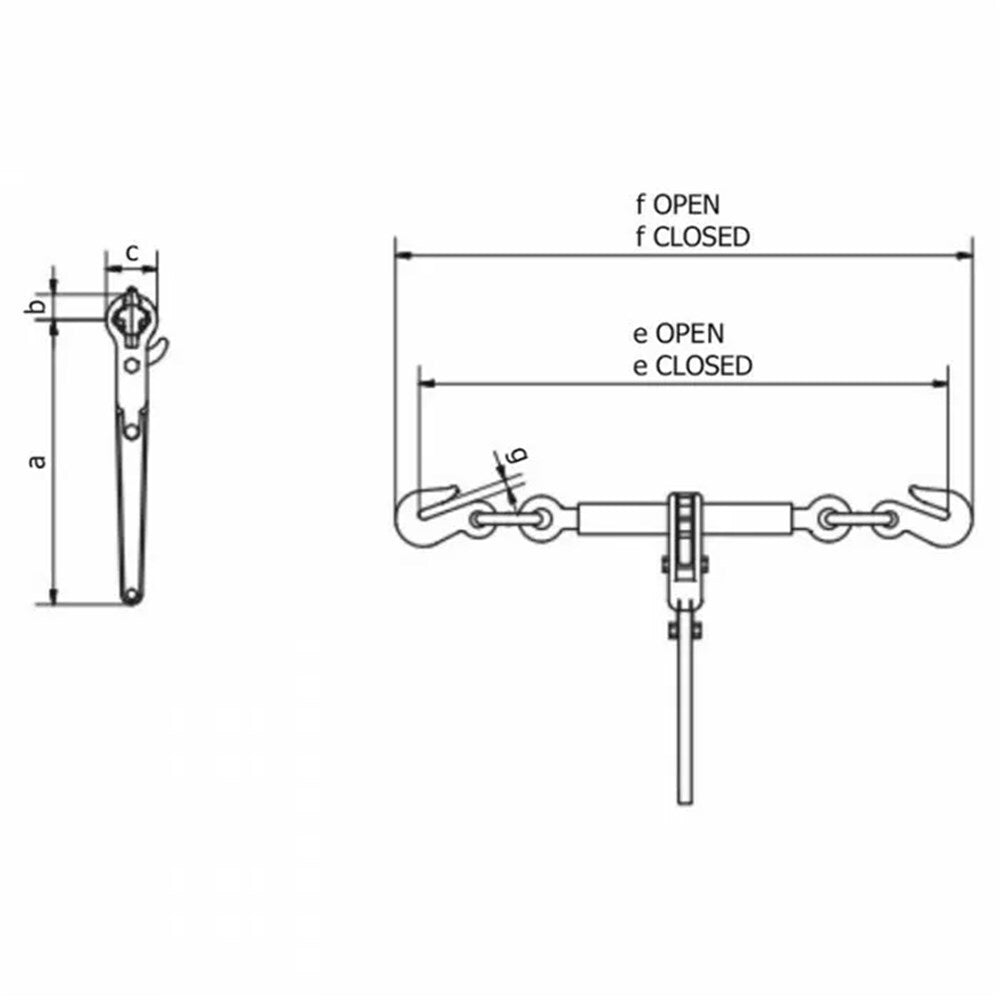

Dimensions

Dimensions in millimetres, as listed by Beaver.

Key specifications

Figures are from Beaver's data sheet for these codes. Beaver's Materials Handling Technical Manual (Vol. 4) lists a larger g dimension for each code (9.5, 11, 12 and 15 mm) and the same values otherwise; the data sheet figures are used here. Beaver does not define dimension letters a, b, c, e, f and g; they refer to its diagram, and f and e are lengths with the loadbinder closed and open. Beaver's website says the winged grab hooks are needed to reach full lashing capacity, which does not match the 25 percent reduction printed in its manual; confirm the capacity to use with AIMS or Beaver.

Selecting the right option

Choose the loadbinder to match the chain size you are tensioning, then check the lashing capacity of the whole system, including the 25 percent reduction for grab hooks, against the load. The lashing capacity of the weakest part of the system governs.

Related products

Other Beaver loadbinders: the ratchet type with eye claw hooks, the safety release loadbinder, the double swivel lever loadbinder and the web dog loadbinder. Check each item is rated for the load before you order.
