Beaver g70 ratchet loadbinders, chain size (mm) 10

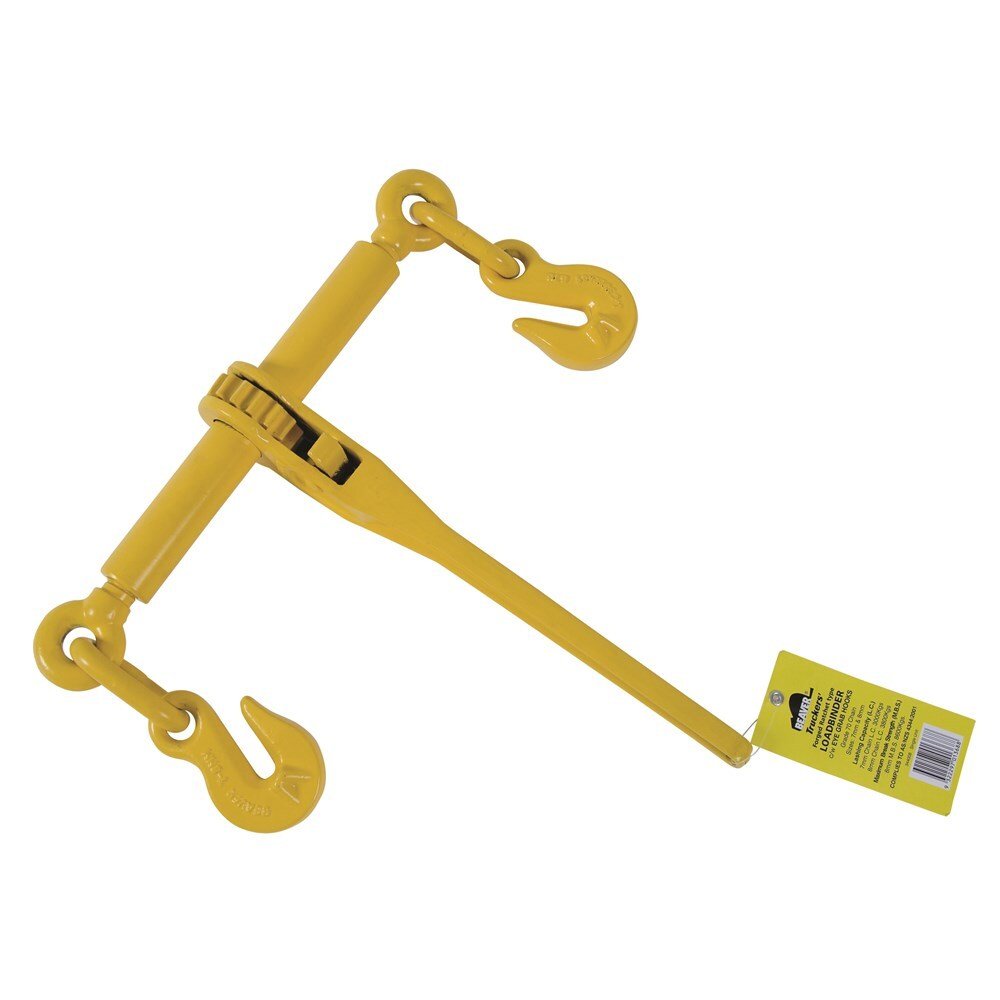

The Beaver G70 ratchet type loadbinder tensions Grade 70 transport chain. Lashing capacities (LC) run from 2,300kg to 9,000kg.

The loadbinders are to AS/NZS 4344. Beaver's note, printed against its grab hook loadbinders: using grab hooks bends the chain link the hook engages and reduces the strength of the chain by 25 percent, so the lashing capacity of the system must be reduced by 25 percent as prescribed in AS/NZS 4344. Grade 70 lashings and fittings are not approved for lifting. Do not use this product to lift or suspend loads; for lifting use a rated lifting product marked with a working load limit (WLL).

Where this product is used

• Tensioning chain over a load on a trailer or truck
• Securing loads for transport

Features

• Ratchet type loadbinder in four chain sizes, 6, 7-8, 10 and 13mm
• Winged eye grab hooks
• Yellow painted finish, to AS/NZS 4344
• Lashing capacities of 2,300, 3,800, 6,000 and 9,000kg before any grab hook reduction

Key specifications

Supplied with

• Operate by hand only, from a standing position, and stay clear of the handle, as load binding systems store energy that can release suddenly
• Inspect the loadbinder before each use for wear, bending, cracks and gouges, and replace it if any are present
• Use only the appropriate size and grade of chain with the loadbinder
• Do not use handle extensions such as pipes or cheater bars, as they can overload and weaken the system
• Check the loadbinder is tight before moving, and stop and recheck tightness frequently

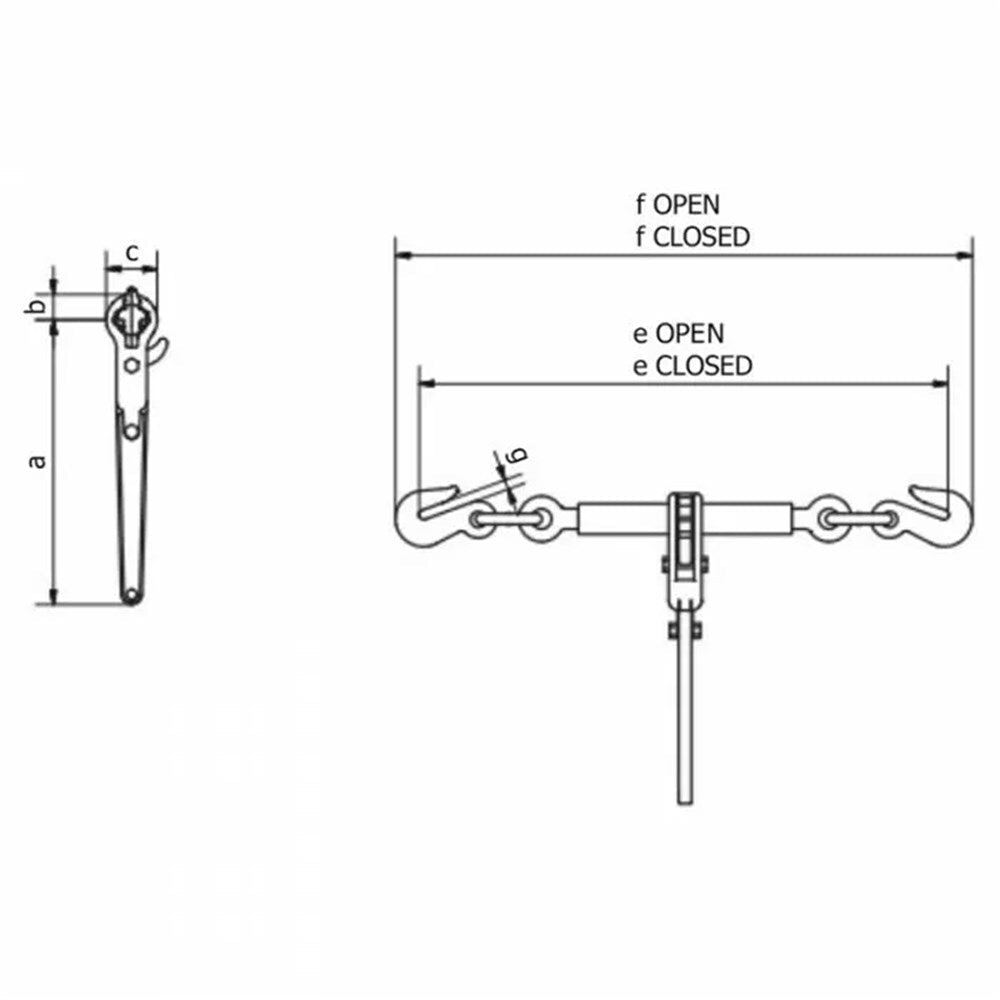

Dimensions

Choosing the right option

Choose the loadbinder to match the chain size you are tensioning, then check the lashing capacity of the whole system, including the 25 percent reduction for grab hooks, against the load. The lashing capacity of the weakest part of the system governs.
