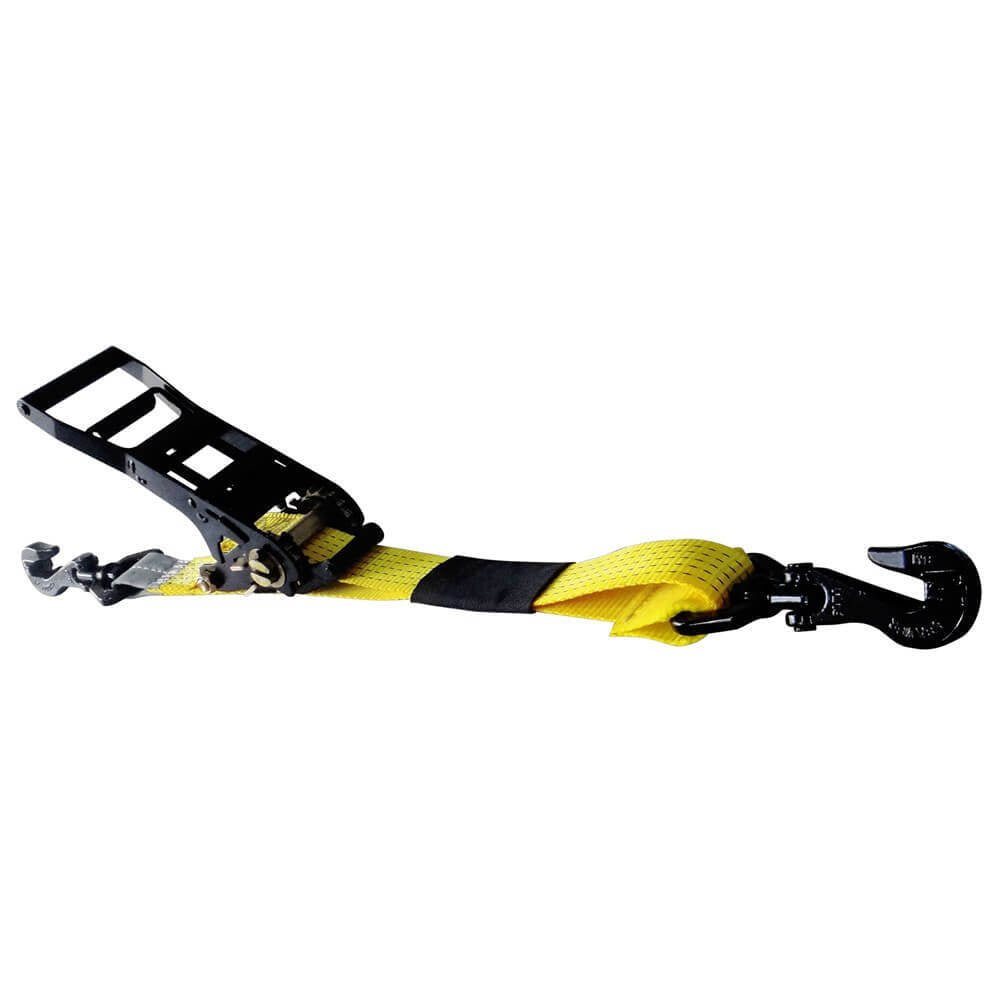

Beaver G70 Web Dog Loadbinder, 1 m x 50 mm Webbing with 8 mm Grab Hooks, 3,800 kg LC

The Beaver G70 web dog loadbinder, code 348000WF, is a 50mm ratchet assembly fitted with 8mm grab hooks and 1 m of 50mm heavy duty webbing.

The web dog is to AS/NZS 4344 and AS/NZS 4380. Beaver's note, printed against its grab hook loadbinders: using grab hooks bends the chain link the hook engages and reduces the strength of the chain by 25 percent, so the lashing capacity of the system must be reduced by 25 percent as prescribed in AS/NZS 4344. Grade 70 lashings and fittings are not approved for lifting. Do not use this product to lift or suspend loads; for lifting use a rated lifting product marked with a working load limit (WLL).

Where this product is used

• Tensioning a lashing with a short length of webbing and a grab hook, as the assembly is described by Beaver
• Tensioning chain over a load on a trailer or truck

Features

• 50mm ratchet assembly with 8mm grab hooks
• 1 m of 50mm heavy duty webbing, standard length 1 m
• 3,800kg lashing capacity before any grab hook reduction
• 3.8kg

Key specifications

Dimensions

Choosing the right option

Check the lashing capacity of the whole system, including the 25 percent grab hook reduction, covers the load, and the 1 m webbing length suits the gap you need to span. The lashing capacity of the weakest part of the system governs.
