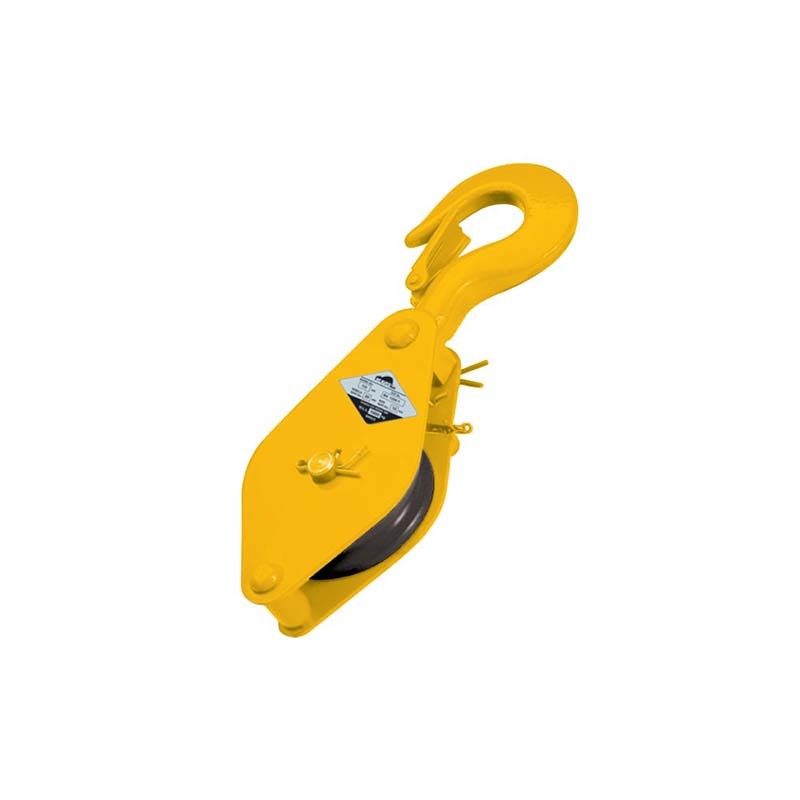

Beaver single sheave blocks with swivel hook

Beaver single hand operated sheave blocks with swivel hook are single sheave rigging blocks (pulley blocks) with an integrated swivel hook and safety latch. The single block is a heavy-duty one-handed operated single sheave block, often called a pulley block, for controlled lifting and manoeuvring of loads. Compliance with AS 2089.

The swivel hook attaches the block to an anchor point, and the sheave turns the rope or wire rope through the block to change the direction of the pull.

Where this product is used

• Changing the direction of a rope or wire rope pull through the sheave, with the block attached to an anchor point by its swivel hook
• Changing the direction of a rope or wire rope pull

Features

• Single sheave with swivel hook and safety latch
• WLL for each size, from 250kg to 1,000kg
• Sized for 5 to 12mm wire rope or 10 to 24mm fibre rope across the sizes
• The block complies with AS 2089
• 5 sizes, 63 to 152mm sheave diameter, with dimensions for each

Key specifications

Choosing the right option

The pull on the rope and the load carried by the block are not the same thing, so check the WLL against the total load the block will carry, including the pull from each rope leg. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

D. G is the sheave diameter. Beaver sells the blocks singly (unit of measure: each).

Choose the sheave diameter and rope size to suit the rope you are using, then check the WLL against the load the block will carry.
