Brady B33D-2000-2-7642 PermaSleeve HX B-7642 Double-Sided
Available

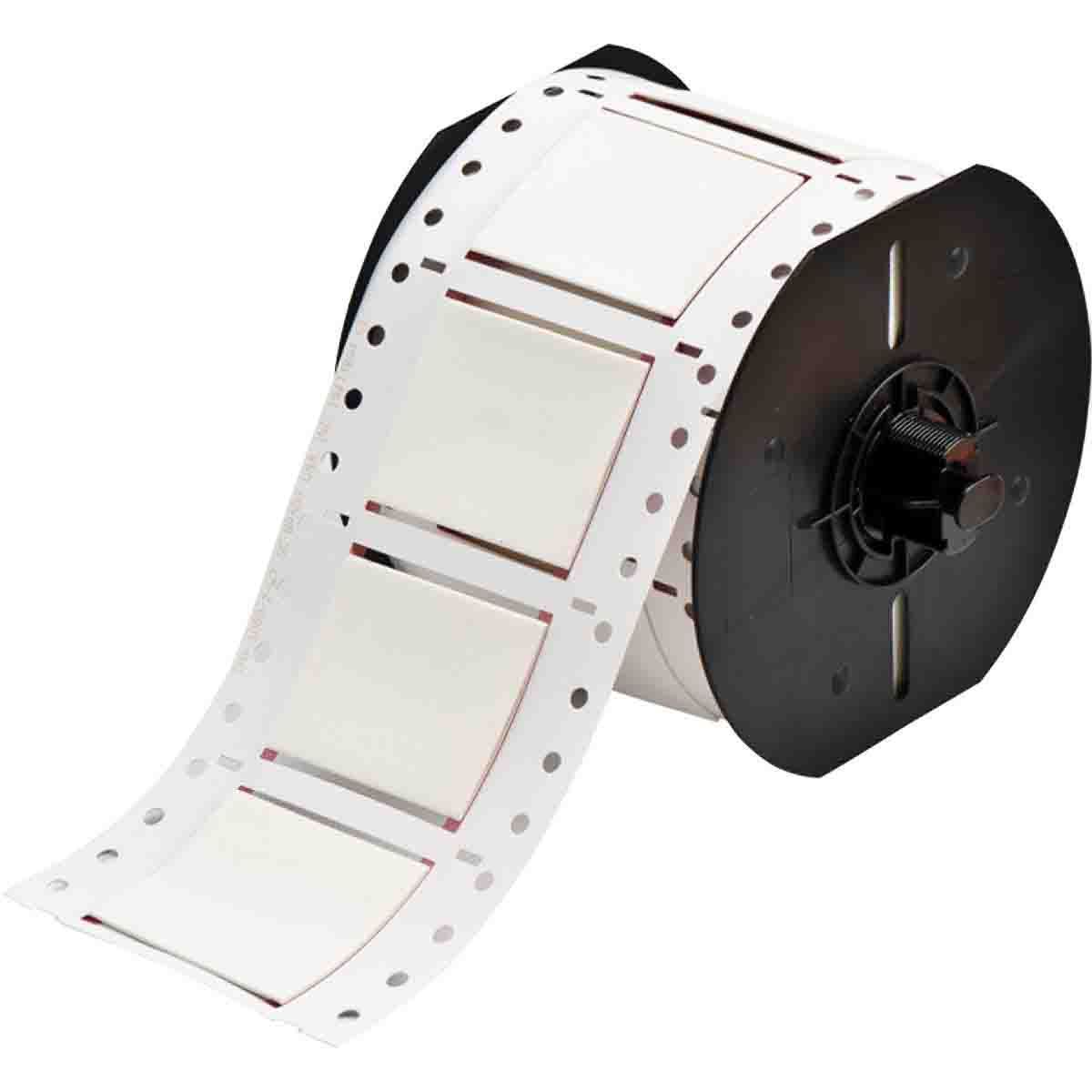

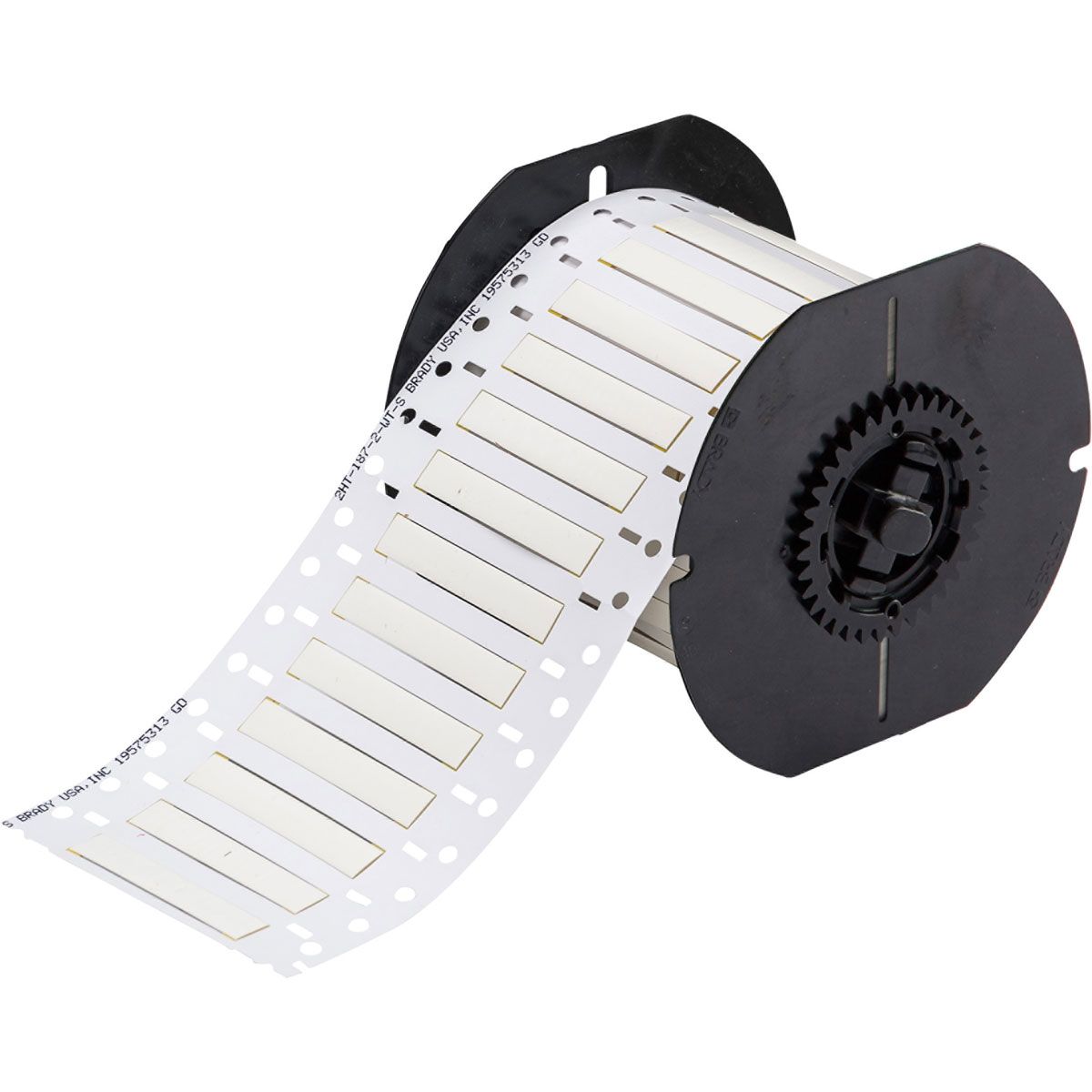

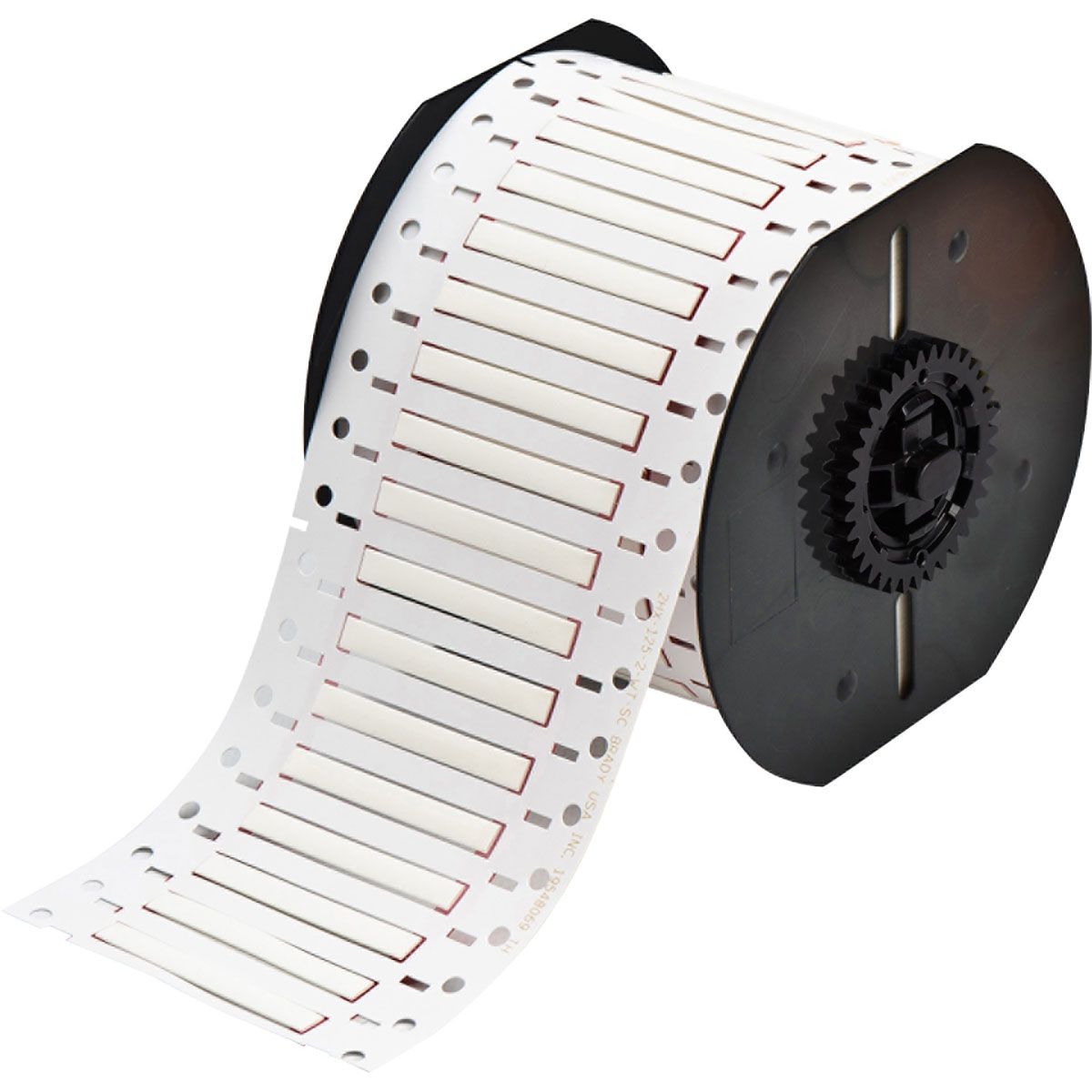

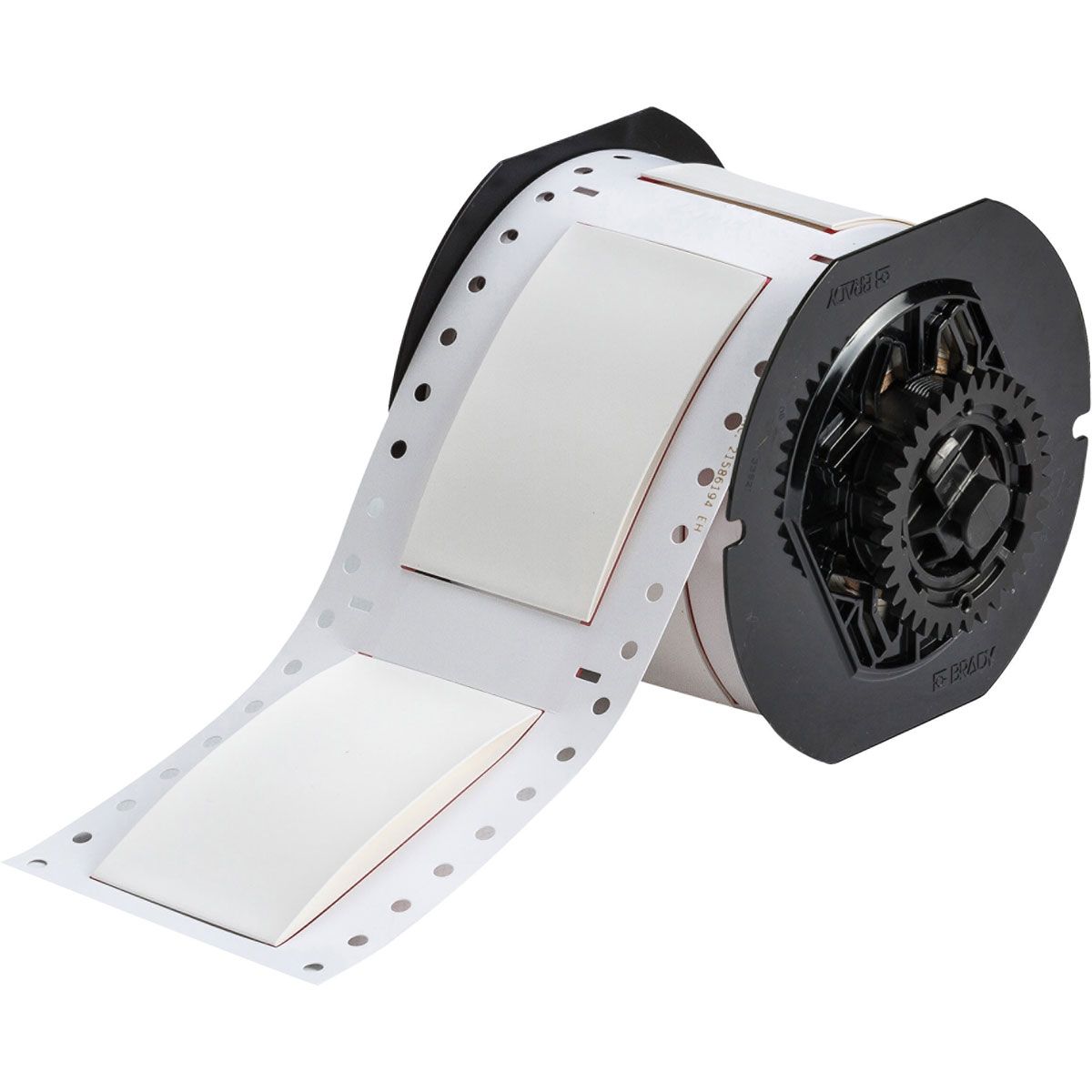

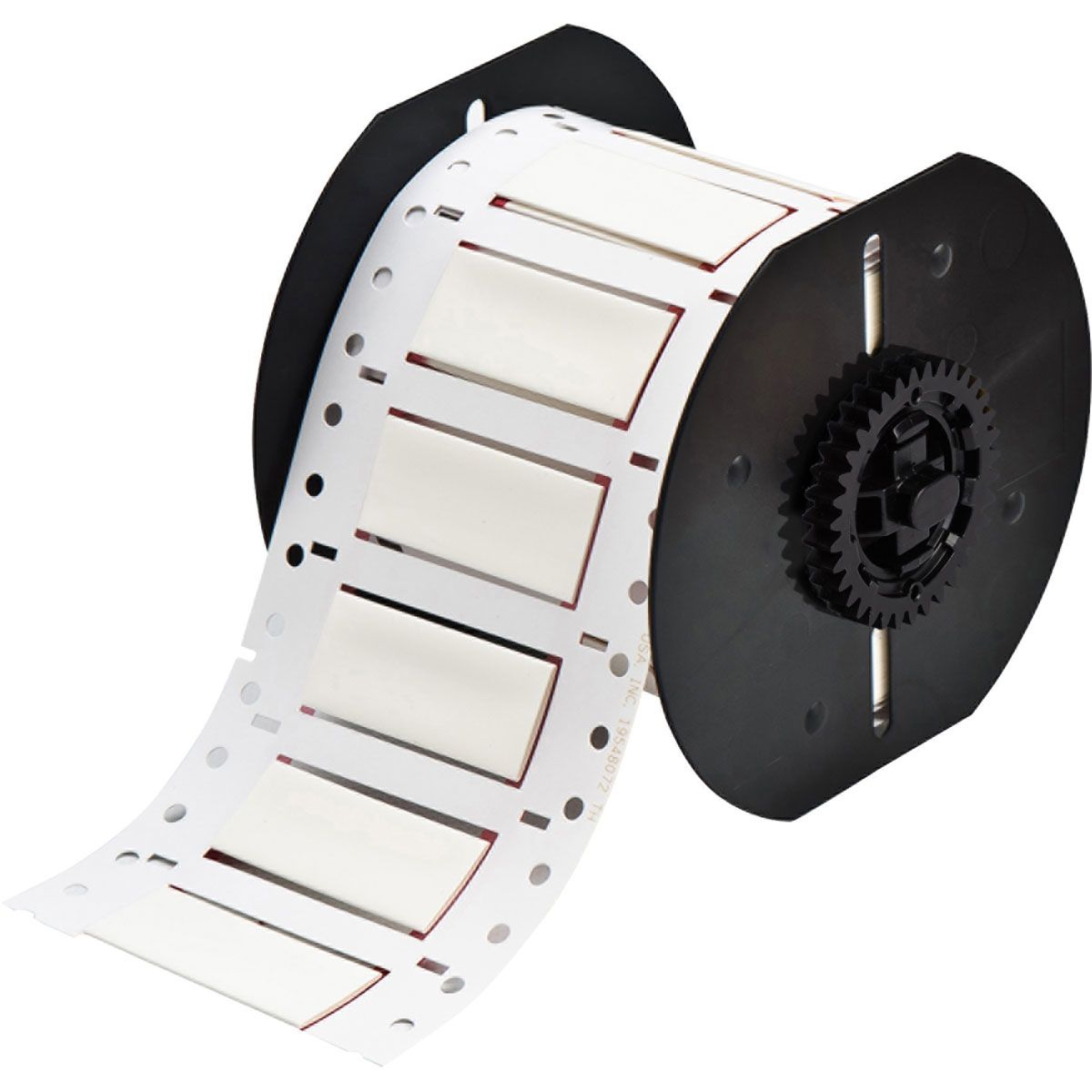

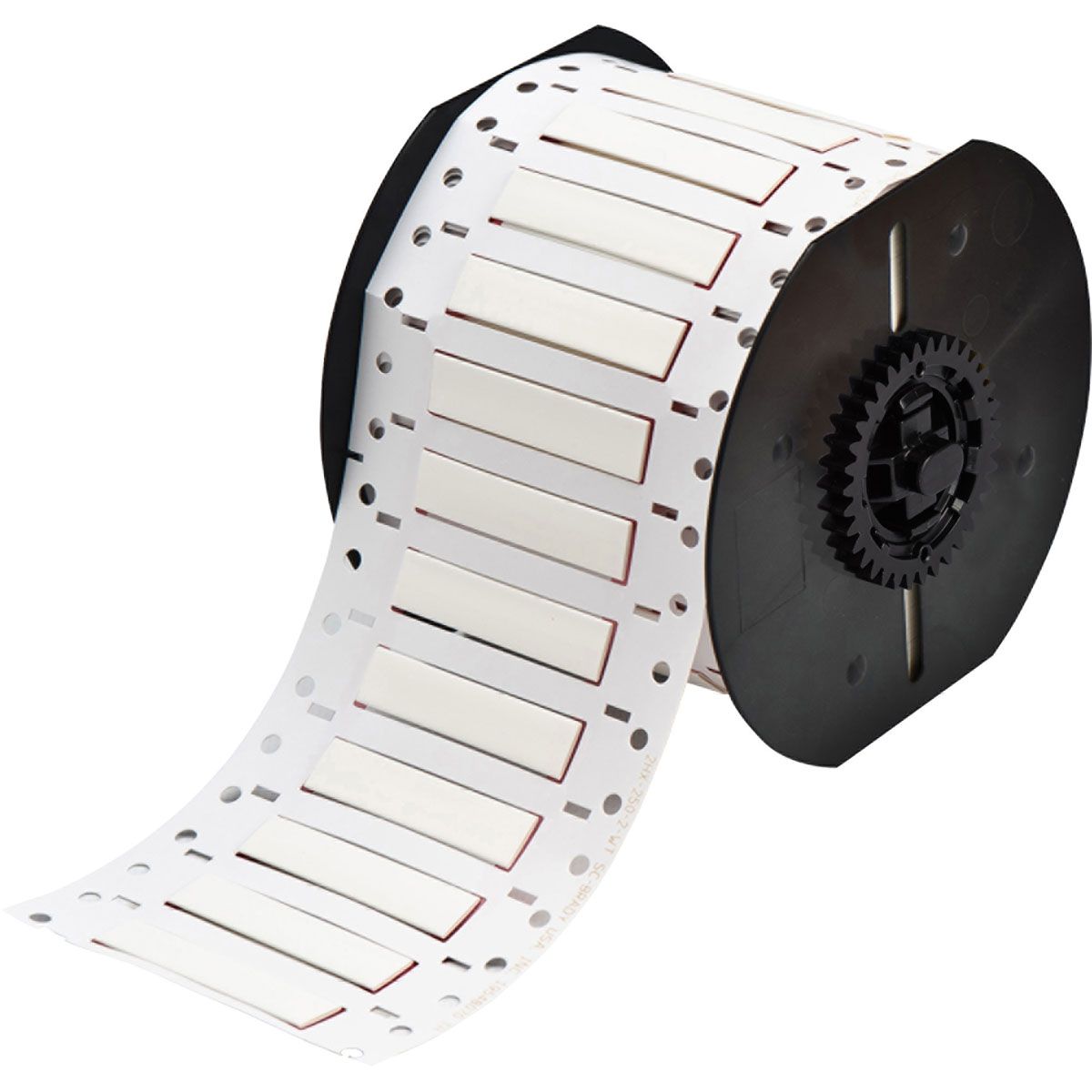

Brady PermaSleeve HX B-7642 double-sided sleeves are 2:1 heat-shrink polyolefin wire marking sleeves for the Brady BBP33, i3300, i4311 and i5300 printers. Both sides can be printed. The range has six white rolls, each 50.8mm wide, in diameters from 3.18 to 50.8mm.
Service temperature is -40 to 120 °C (-40 to 248 °F). The sleeve is chemical, corrosion, humidity, UV and weather resistant and self-extinguishing, and meets SAE-AMS-DTL-23053/5 Class 1 and 3 and SAE-AS-81531, tested per ASTM E162 and E662. The ribbon is B30-R4300, on the [B30 series printer ribbons](/products/brady-b30-series-printer-ribbon).
Where this product is used
- Wire and cable labelling
- Electrical labelling
- Marking large cables and bundles, with sleeves up to 50.8mm diameter
- Marking where the legend must be read from either side
Features
- 2:1 heat-shrink polyolefin sleeve
- Chemical, corrosion, humidity, UV and weather resistant
- Self-extinguishing
- Service temperature -40 to 120 °C
- Double-sided thermal transfer printing, die-cut
- Six white rolls, 3.18 to 50.8mm diameter
Key specifications
| Specification | Detail |
|---|---|
| Brand | Brady |
| Product | PermaSleeve HX B-7642 Double-Sided Heat-Shrink Wire Marking Sleeves for B33 Printers, White, 3.18 to 50.8mm Dia |
| Material | Heat-shrink polyolefin, B-7642, matte |
| Service temperature | -40 to 120 °C (-40 to 248 °F) |
| Printing | Double-sided, thermal transfer |
| Form | Die-cut sleeves on a roll, 50.8mm wide, white |
| Ribbon | B30-R4300 |
| Printer compatibility | BBP33, i3300, i4311, i5300 |
| Standards listed | SAE-AMS-DTL-23053/5 Class 1 and 3 and SAE-AS-81531, tested per ASTM E162 and E662 |
| 3.18 | wire diameter range (mm) 1.57 to 2.79; wire gauge range 20 AWG - 16 AWG; sleeve width (mm) 50.8 |
| 4.75 | wire diameter range (mm) 2.39 to 3.81; wire gauge range 16 AWG - 10 AWG; sleeve width (mm) 50.8 |
| 6.35 | wire diameter range (mm) 3.18 to 5.46; wire gauge range 12 AWG - 8 AWG; sleeve width (mm) 50.8 |
| 12.7 | wire diameter range (mm) 6.35 to 11.43; wire gauge range 6 AWG - 1 AWG; sleeve width (mm) 50.8 |
| 25.4 | wire diameter range (mm) 12.70 to 24.13; wire gauge range 00 AWG - 500 MCM; sleeve width (mm) 50.8 |
| 50.8 | wire diameter range (mm) 25.40 to 49.53; sleeve width (mm) 50.8 |
Choosing the right option
Pick the sleeve whose wire diameter range includes your conductor. For single-sided printing see the B-7642 HX single-sided heat-shrink sleeves.
Related Brady products: B-7642 HX single-sided heat-shrink sleeves, B-342 double-sided heat-shrink sleeves for B33 printers, B-345 PVDF high-temperature sleeves for B33 printers, Brady i3300 industrial label printer and B30 series printer ribbons.
| Option | Part number | SKU |
|---|---|---|
| 50.80 x 5.97mm | B33D-125-2-7642 | A0205431 |
| 50.80 x 8.51mm | B33D-187-2-7642 | A0205432 |
| 50.80 x 11.15mm | B33D-250-2-7642 | A0205433 |
| 50.80 x 21.62mm | B33D-500-2-7642 | A0205434 |
| 50.80 x 42.16mm | B33D-1000-2-7642 | A0205435 |
| 50.80 x 80.39mm | B33D-2000-2-7642 | A0205436 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Brady PermaSleeve HX B-7642 Double-Sided Heat-Shrink Wire Marking Sleeves for B33 Printers, White, 3.18 to 50.8 mm Dia: 50.80 x 80.39 mm
SKU: A0205436 | Model: B33D-2000-2-7642
B33D-2000-2-7642 is the 50.80 x 80.39mm option of Brady PermaSleeve HX B-7642 Double-Sided Heat-Shrink Wire Marking Sleeves for B33 Printers, White, 3.18 to 50.8mm Dia. Specifications: Material: Heat-shrink polyolefin; Sleeve Diameter as Supplied (mm): 50.8; Sleeve Width (mm): 50.8.
