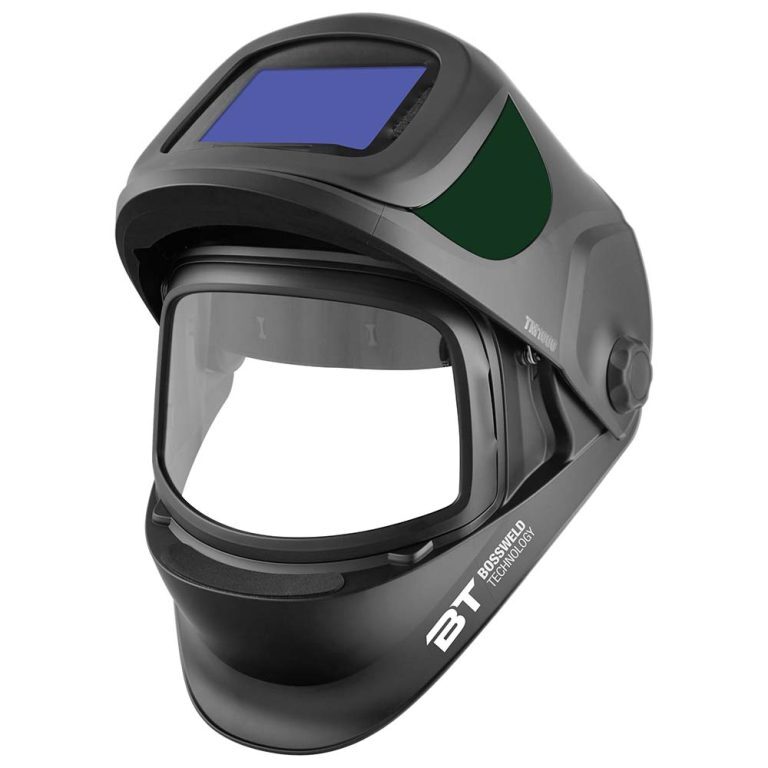

BT/Tecmen Flip Front Welding Helmet iEXP 950S

• The Bossweld TechnologyTecmen Flip Front Welding Helmet iEXP 950S is a high-quality and versatile helmet that provides exceptional optical clarity with its 1/1/1/1 highest optical class rating. It features an easy lift-up design for seamless transitions between welding and grinding operations.
• Tecmen Realens™ Technology offer ultra-clear and uniform visibility under welding conditions showing true colour. The technology enables the user to see the weld pool with complete clarity, ensuring high-quality welds every time.
• The helmet offers a panoramic view and includes shade 5 lenses on both sides for effective eye protection. It prioritises user comfort and durability, with its lightweight construction and adjustable headgear system.
• Overall, the Bossweld TechnologyTecmen Flip Front Welding Helmet iEXP 950S is a reliable choice for welders seeking superior visibility, versatility, and convenience. Ideal for use in the industrial field where welders spend extended periods of time welding.

1/1/1/1 Highest Optical Class

• To qualify for a EN379 rating, the auto-darkening lens get tested and rated in 4 categories: Optical class, Diffusion of light class, Variations in luminous transmittance class, and Angle dependence on luminous transmittance class. Each category is rated on a scale of 1 to 3, with 1 being the best (perfect) and 3 the worst.
• With no glare or interference, BT TECMEN brings ultra-clear vision to users and helps them to be more concentrated and greatly improve welding efficiency.

Classifications/Approvals

• CE, UKCA, UKNI, ANSI Z87.1, Z94.3, AS/NZS1338.1, 1337.1

Standard Inclusions

1. Flip Front Auto Darkening Welding Helmet
2. Spare outside cover lens x 5
3. Spare inside cover lens x 2
4. Side lens x 2

Helmet Specifications

• Auto Darkening Filter (ADF) Model: iEXP 950S
• Optical Class: 1 / 1 / 1 / 1
• Viewing Area: 107 x 75 mm
• Arc Sensor: 4
• Light State: DIN 3.5
• Dark State: Variable Shade 5 ~ 8 / 9 ~ 13
• Power On / Off: Manual-on/off, Auto-off
• UV / IR Protection: Up to Shade DIN 16 at all times
• Power Supply: Solar cell, Battery replaceable 2 x CR2450 lithium battery
• Battery Duration: 4000 hours
• Switching Time: 1/25,000 s. from light to dark
• Dark to Light: 0.1~1.0 s, Digital Display Control
• Low Amperage TIG Rated: ≥ 2 amps (AC/DC)
• Grinding: Yes
• Helmet Material: High Impact Resistance Nylon
• Warranty: 2 Year

Applications

• BT / Tecmen Flip Front Welding Helmet iEXP 950S can be used in many different industrial fields such as polishing, welding and metalworking.

  MIG, TIG & Stick welding
  Plasma Cutting
  Grinding



Features

• Large Viewing Area: 107 x 75mm
• Easy Lift Up for Grinding
• 1 / 1 / 1 / 1 Highest Optical Class
• See True Colours with “ReaLens™ Technology”
• Panoramic View (Shade 5)
• Dual Shade Range 5-8 / 9-13
• Four Independent Sensors
