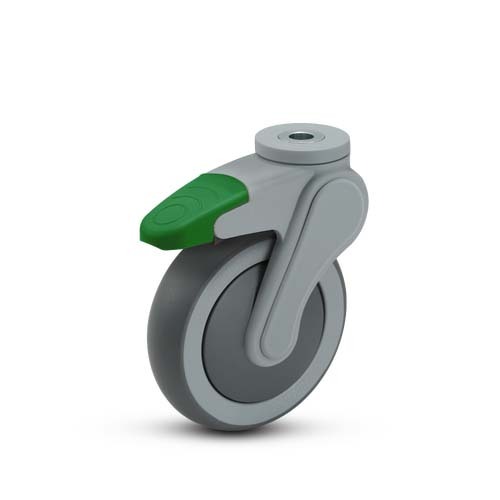

Colson 125 x 162mm Total Lock Bolt Hole Castor P6 (Avant) - Rubber

The Colson P6 (Avant) total lock bolt hole castor has a 125mm rubber wheel and a 162mm working height, and is rated for 100kg. The body is glass-filled nylon, and the wheel runs on a sealed precision ball bearing raceway with full thread guards to keep out entangling debris.

The QuikStart wheel is 70A durometer, quiet and non-marking, which suits medical, hospital and institutional equipment. The total lock brake stops both the wheel and the swivel.

Where this product is used

• Hospital and care beds
• Medical equipment and carts
• Pharmaceutical and institutional equipment

Features

• Sealed precision ball bearing raceway design, quieter than dual ball bearing construction
• QuikStart rubber wheel, 70A durometer, quiet and non-marking
• Glass-filled nylon body for load capacity and durability
• Full thread guards keep out entangling debris
• 100kg load capacity per castor

Key specifications

Choosing the right option

The P6 (Avant) series comes in swivel, total lock and direction lock versions. Pick the lock type to suit how the equipment is moved and parked, and fit a mix of locking and free-swivelling castors where the equipment needs to be steered. Check the castor against the load on each castor, not the total load, and allow for uneven floors and shock loads.
