Sutton 16mm x 610mm D640 SDS Max Speeduster Masonry Drill - 3 Cut TCT Tip

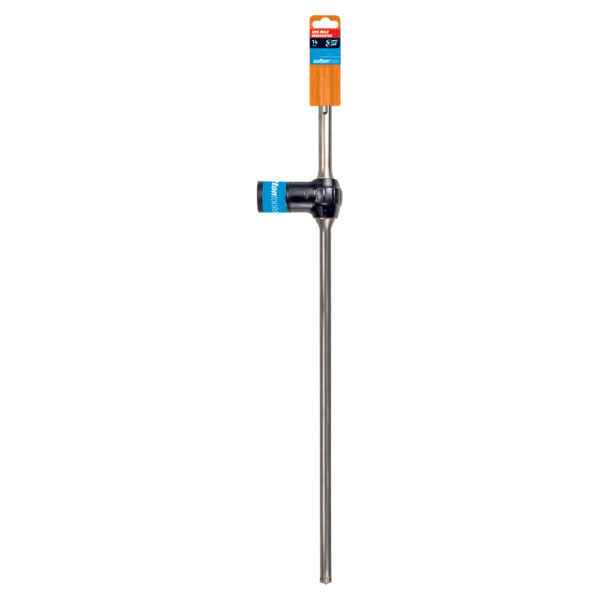

The Sutton D640 Speeduster is a 610 mm SDS Max masonry drill bit with dust extraction, designed for clean and fast drilling in reinforced concrete, concrete, granite, stone and bricks. This range has 10 sizes: 14, 16, 18, 20, 22, 25, 28, 30, 32 and 35 mm, each with a 400 mm flute length.

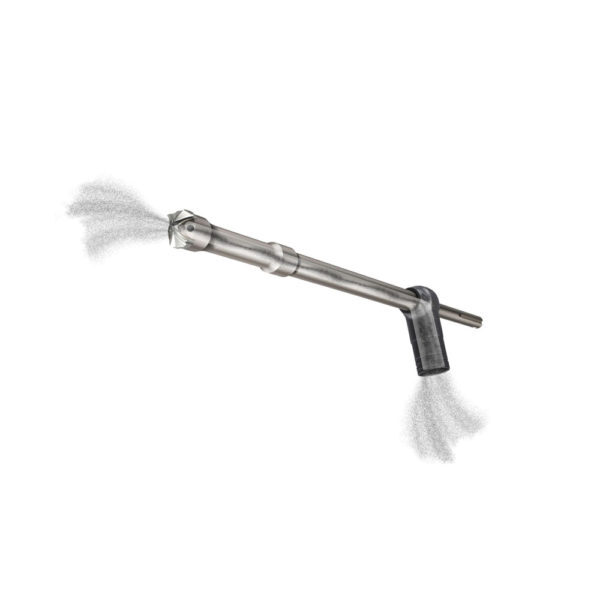

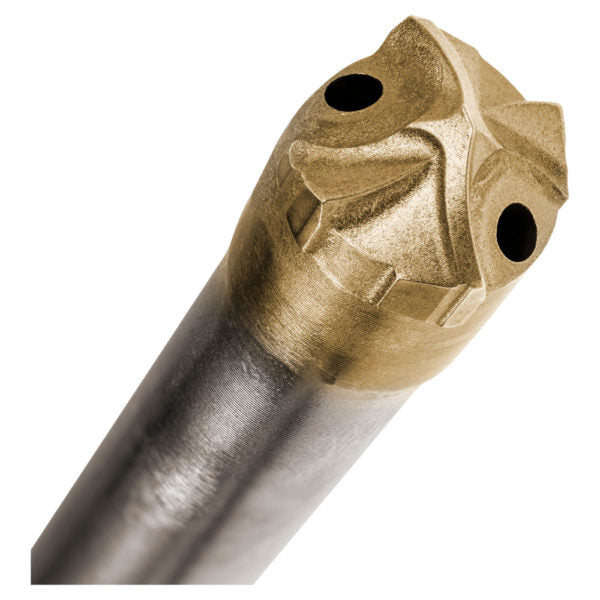

Two wide suction holes allow fast dust extraction, and a vacuum can be attached through the connecting sleeves, which suit 35 mm diameter vacuum tubes. The extraction is designed to reduce blockage while drilling, which allows faster drilling and can help extend tool life. The 22 to 35 mm sizes have a 100% carbide massive head with self-centring 10 cutters for heavy duty drilling, and the 14 to 20 mm sizes are equipped with a 3-cut TCT tip. The SDS Max shank suits all SDS Max rotary hammer drills.

Where this product is used

• Heavy duty drilling in reinforced concrete, concrete, granite, stone and bricks with an SDS Max rotary hammer.
• Drilling in spaces that need a clean environment, with the dust drawn away through the suction holes to a vacuum.
• Applications include trade, professional, plumbing and masonry work.

Sizes and item numbers

Every drill size in the range, with its Sutton item number. Overall length and flute length are in millimetres.

Drilling notes

• Use in an SDS Max rotary hammer drill with the hammer action on (rotation plus percussion).
• To extract dust, attach a vacuum through the connecting sleeves; the sleeves suit 35 mm diameter vacuum tubes.
• Apply steady, moderate pressure and let the hammer do the work; extra force does not speed up the cut.
• Match the drill diameter to the hole size the anchor or fixing manufacturer specifies.

Key specifications

Related drilling products

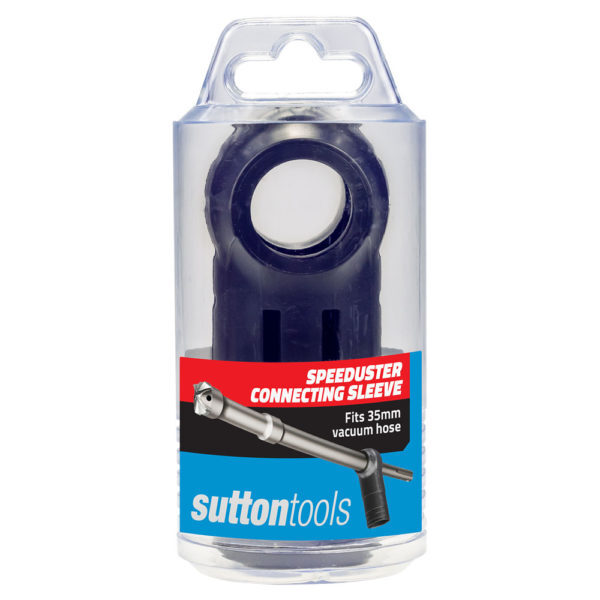

Collector and seal: D640 0001 Speeduster collector and seal. Compare other Sutton SDS Max masonry drill bits: D644 340 mm Reo Extreme, D645 540 mm Reo Extreme, D646 690 mm Reo Extreme, D647 920 mm Reo Extreme, D648 1300 mm Reo Extreme, D649 1500 mm Reo Extreme, D675 340 mm Reo Pro 3-cut and D676 540 mm Reo Pro 3-cut. Browse all masonry drill bits and sets. Need help choosing? Our guide to choosing the right drill bit and drill bit selection guide cover drill types and materials.
