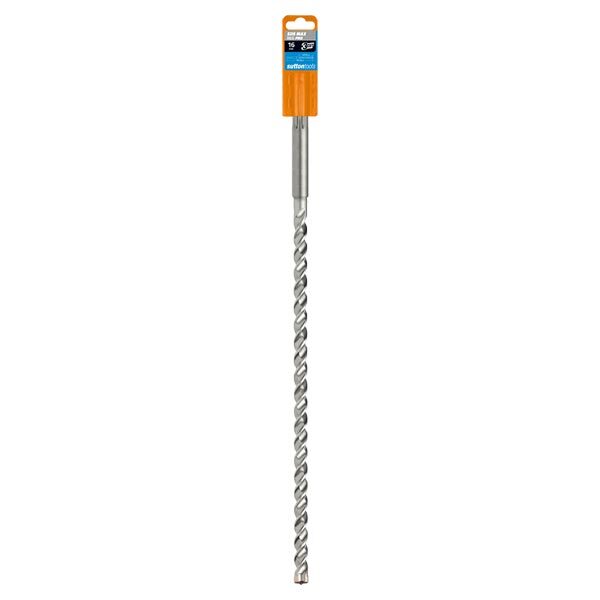

Sutton 14mm x 540mm D676 SDS Max Masonry Drill Bit - Reo Pro 3 Cut
Available
The Sutton D676 is a 540 mm SDS Max Reo Pro 3-cut masonry drill bit with a unique TCT tip and a 400 mm flute length. This range has 4 sizes: 14, 16, 18 and 20 mm. It is for reinforced concrete, including drilling through reinforcing mesh.

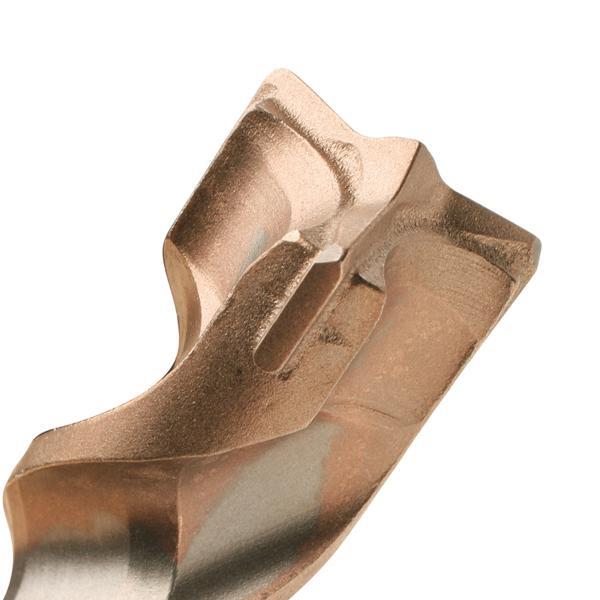

The unique TCT tip has three self-centring cutting edges, designed to prevent snagging on reinforcing mesh, and the drill is designed to drill 30% faster than conventional SDS drills. The combination spiral flute pairs a half-round spiral, which accelerates dust extraction away from the tip, with a square spiral that combines a compression channel with a depression chamber for controlled dust removal. The SDS Max shank suits all SDS Max rotary hammer drills. The sand-blasted finish is an environmentally friendly production method with zero heavy metals.
Where this product is used
- Drilling reinforced concrete, including through reinforcing mesh, with an SDS Max rotary hammer.
- Applications include trade, professional, plumbing and masonry work.
- Holes up to the 400 mm flute length.
Sizes and item numbers
Every size in the range, with its Sutton item number. Overall length and flute length are in millimetres.
| Item no. | Diameter (mm) | Overall length (mm) | Flute length (mm) | Shank |
|---|---|---|---|---|
| D676 1400 | 14 | 540 | 400 | SDS Max |
| D676 1600 | 16 | 540 | 400 | SDS Max |
| D676 1800 | 18 | 540 | 400 | SDS Max |
| D676 2000 | 20 | 540 | 400 | SDS Max |
Drilling notes
- Use in an SDS Max rotary hammer drill with the hammer action on (rotation plus percussion).
- Apply steady, moderate pressure and let the hammer do the work; extra force does not speed up the cut.
- Choose a length so the hole depth sits within the flute length. For deeper holes step up to a longer series.
- Withdraw the bit from time to time in deep holes to help clear dust, and clear the dust from the hole before fitting an anchor.
- Match the drill diameter to the hole size the anchor or fixing manufacturer specifies.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D676 (SDS Max Reo Pro 3-cut masonry drill) |
| Type | Masonry drill bit |
| Tip | Unique TCT tip, 3 self-centring cutting edges |
| Cutting edges | 3 |
| Shank | SDS Max |
| Flute | Combination spiral |
| Finish | Sand-blasted |
| Overall length | 540 mm |
| Flute length | 400 mm |
| Sizes in this range | 4 sizes, 14 to 20 mm |
Related drilling products
Compare other Sutton SDS Max masonry drill bits: D644 340 mm Reo Extreme, D645 540 mm Reo Extreme, D646 690 mm Reo Extreme, D647 920 mm Reo Extreme, D648 1300 mm Reo Extreme, D649 1500 mm Reo Extreme, D675 340 mm Reo Pro 3-cut and D640 Speeduster 610 mm with dust extraction. Browse all masonry drill bits and sets. Need help choosing? Our guide to choosing the right drill bit and drill bit selection guide cover drill types and materials.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
D676 540mm SDS Max Masonry Drill Bit - Reo Pro 3 Cut: 14
SKU: A0130445 | Model: D6761400
This is the 14mm diameter option of the D676 540mm SDS Max Masonry Drill Bit - Reo Pro 3 Cut. Key details for this option: overall length 540mm, flute length 400mm.
540mm SDS Max Masonry Drill Bit - Reo Pro 3 Cut
Unique TCT Tip: 3 cutting edge self centering tip prevents snagging on reinforced mesh. Sand-blasted finish: Environmentally friendly production method with zero heavy metals. Combination Spiral Flute: Half-round spiral accelerates dust extraction away from tip. Square spiral combines compression channel with a depression chamber for perfectly controlled dust removal. SDS Max Shank: Suits all SDS Max rotary hammer drills.
