Sutton 20mm x 340mm D675 SDS Max Masonry Drill Bit - Reo Pro 3 Cut

The Sutton D675 is a 340 mm SDS Max Reo Pro 3-cut masonry drill bit with a unique TCT tip and a 200 mm flute length. This range has 1 size: 20 mm. It is for reinforced concrete, including drilling through reinforcing mesh.

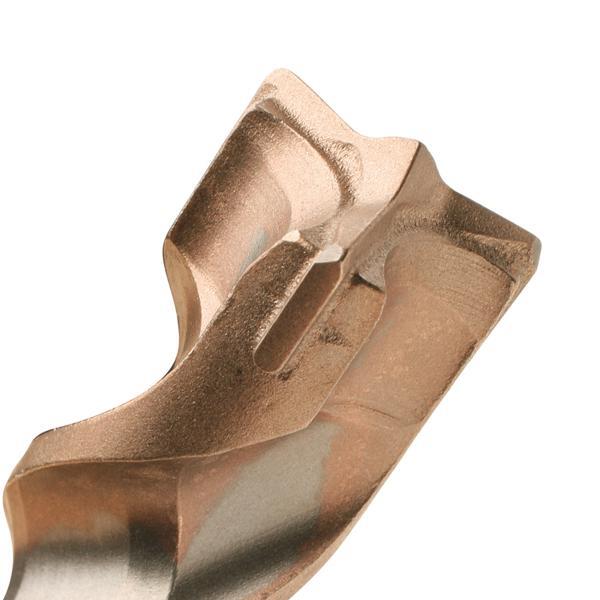

The unique TCT tip has three self-centring cutting edges, designed to prevent snagging on reinforcing mesh, and the drill is designed to drill 30% faster than conventional SDS drills. The combination spiral flute pairs a half-round spiral, which accelerates dust extraction away from the tip, with a square spiral that combines a compression channel with a depression chamber for controlled dust removal. The SDS Max shank suits all SDS Max rotary hammer drills. The sand-blasted finish is an environmentally friendly production method with zero heavy metals.

Where this product is used

• Drilling reinforced concrete, including through reinforcing mesh, with an SDS Max rotary hammer.
• Applications include trade, professional, plumbing and masonry work.
• Holes up to the 200 mm flute length.

Sizes and item numbers

Every size in the range, with its Sutton item number. Overall length and flute length are in millimetres.

Drilling notes

• Use in an SDS Max rotary hammer drill with the hammer action on (rotation plus percussion).
• Apply steady, moderate pressure and let the hammer do the work; extra force does not speed up the cut.
• Choose a length so the hole depth sits within the flute length. For deeper holes step up to a longer series.
• Withdraw the bit from time to time in deep holes to help clear dust, and clear the dust from the hole before fitting an anchor.
• Match the drill diameter to the hole size the anchor or fixing manufacturer specifies.

Key specifications
