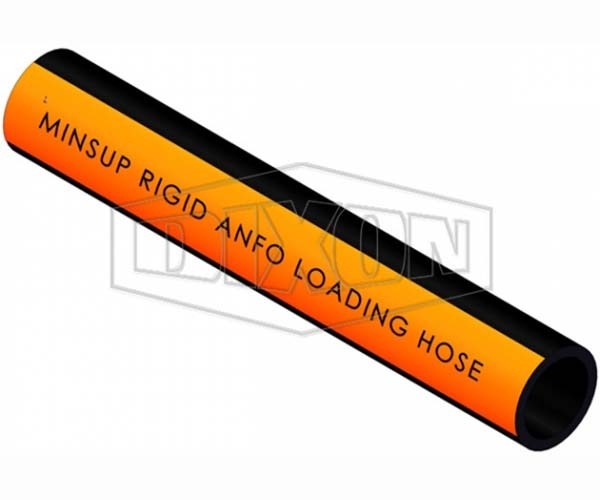

Dixon 19mm x 30m Anfo Semi Conductive Semi Rigid PVC Transfer Tube
Regular price
$930.85
Sale price
$930.85
Regular price
Inc. GST
Available
Intended Service: Explosive. Application: Explosive. Construction. Tube: PVC or PE (high density polyethylene). Reinforcement: Non-reinforced. Note. We recommend that the user of this product be fully aware of the hazards as listed in section 4 of AS2187.2 before using this product in explosive applications.
Key Specifications
| Width (mm) | 0.7 / 1 |
| Length | 30 m / 60 m |
| ID | 19.0 mm / 25.4 mm |
| OD | 27.0 mm / 30.0 mm |
| Hose ID (mm) | 19 / 25.4 |
| Working Pressure | 100 PSI (0.7 MPa) / 150 PSI (1.0 MPa) |
| Temperature Range | -20°C to 60°C / -20°C to 80°C |
| Material | Semi-Conductive, Semi-Rigid PVC / Semi-Conductive, Rigid PE |
| Intended Service | Explosive |
| Unit weight | 0.36 kg / 0.22 kg |
| Thickness | 100 / 150 |
| Hose Outside Diameter (mm) | 27 / 30 |
| Weight kg/m | 0.36 / 0.22 |
| Application | Explosive |
| Hose Length | 30 m / 60 m |
| Standards referenced | AS2187.2, BS2050 |
Where This Is Used
- Semi conductive transfer tube in pneumatic charging devices for explosive use.
Features
- Semi conductive.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
30 m
Model Number: 05/100/01/124
-
60 m
Model Number: 05/100/01/455
