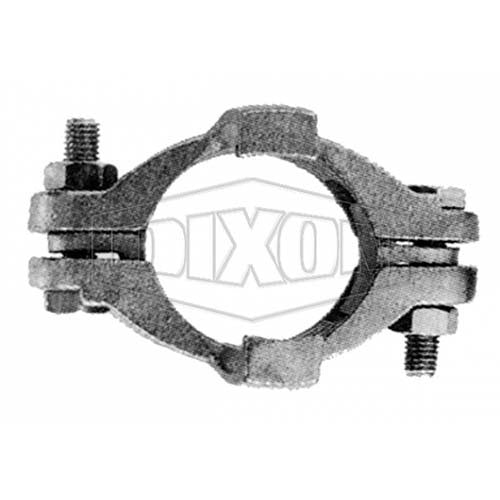

Dixon Ludecke double bolt clamp, 1" hose ID

This Dixon Ludecke double bolt clamp has safety claws and is made from malleable iron. It is a two-part clamp with loose saddles. This range covers two sizes: SK34 for 3/4" (20mm) hose ID and SK39 for 1" (25mm) hose ID.

The safety claw style as "With Safety Claws - DIN 20 039 B" comes in its Ludecke double bolt clamp table. A matching range without safety claws (SL part numbers) is sold separately.

Where this product is used

• Securing hose to hose tails and shanks on industrial hose assemblies, with the clamp chosen by hose outside diameter
• Hose assemblies where a safety claw clamp style is specified

Features

• Two parts with loose saddles
• Malleable iron
• With safety claws, DIN 20 039 B
• SK34 suits hose OD 28 to 32mm, SK39 suits hose OD 35 to 42mm

Key specifications

Choosing the right option

Measure the outside diameter of your hose on the hose tail and choose the clamp whose hose OD range covers it; the hose ID figure is a size reference.

Nuts and bolts should not be lubricated, that worn-out couplings can be dangerous and should be checked regularly and replaced, and to consult Dixon when using double bolt clamps on helical wire hose.

Related Dixon clamps: Dixon Double Bolt Clamp Without Saddles Plated Iron, Dixon Double Bolt Clamp Without Saddles Investment Cast Carbon Steel and Dixon Clamp 2 Bolt Type, 2 Gripping Fingers Zinc Plated Iron.
