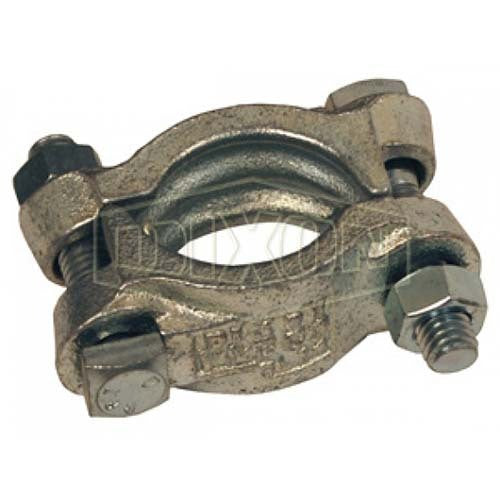

Dixon Plated iron double bolt clamp, 28.6 - 30.2

This Dixon double bolt clamp has no saddles and is made from plated iron. This range covers nine sizes, from hose OD 28.6mm to 88.9mm, and Dixon also offers a bolt torque for each part number. Its double bolt clamps are for use in industrial, agriculture, mining and various other industries, with dual gripping ridges on the inner surface and reinforced bolt lugs to prevent bending out of alignment.

Where this product is used

• Securing hose in industrial, agriculture and mining applications

Features

• Plated iron double bolt clamp, without saddles
• Dual gripping ridges on the inner surface
• Reinforced bolt lugs to prevent bending out of alignment
• Hose OD from 28.6mm to 88.9mm across nine part numbers
• Bolt torque in ft-lbs and Nm for each part number

Key specifications

Choosing the right option

Measure the outside diameter of the hose where the clamp will sit, and choose the part number whose hose OD range covers it. Ranges overlap in places (for example DL14 and DL20), so use the torque value for the exact part number.

Torque values are based on dry bolts and that lubricant on the bolts reduces clamp performance, that nuts and bolts should not be lubricated, and that worn-out couplings can be dangerous and should be checked regularly and replaced. Consult Dixon when using double bolt clamps on helical wire hose.
