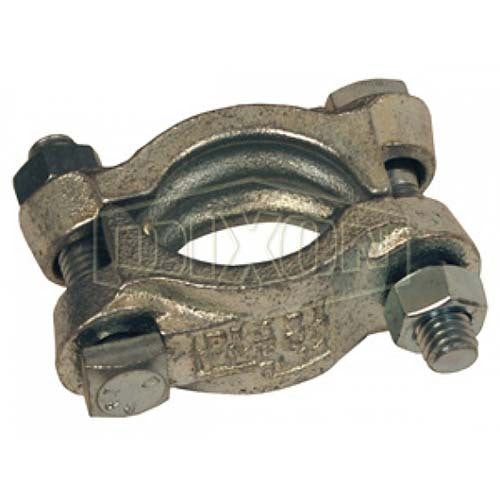

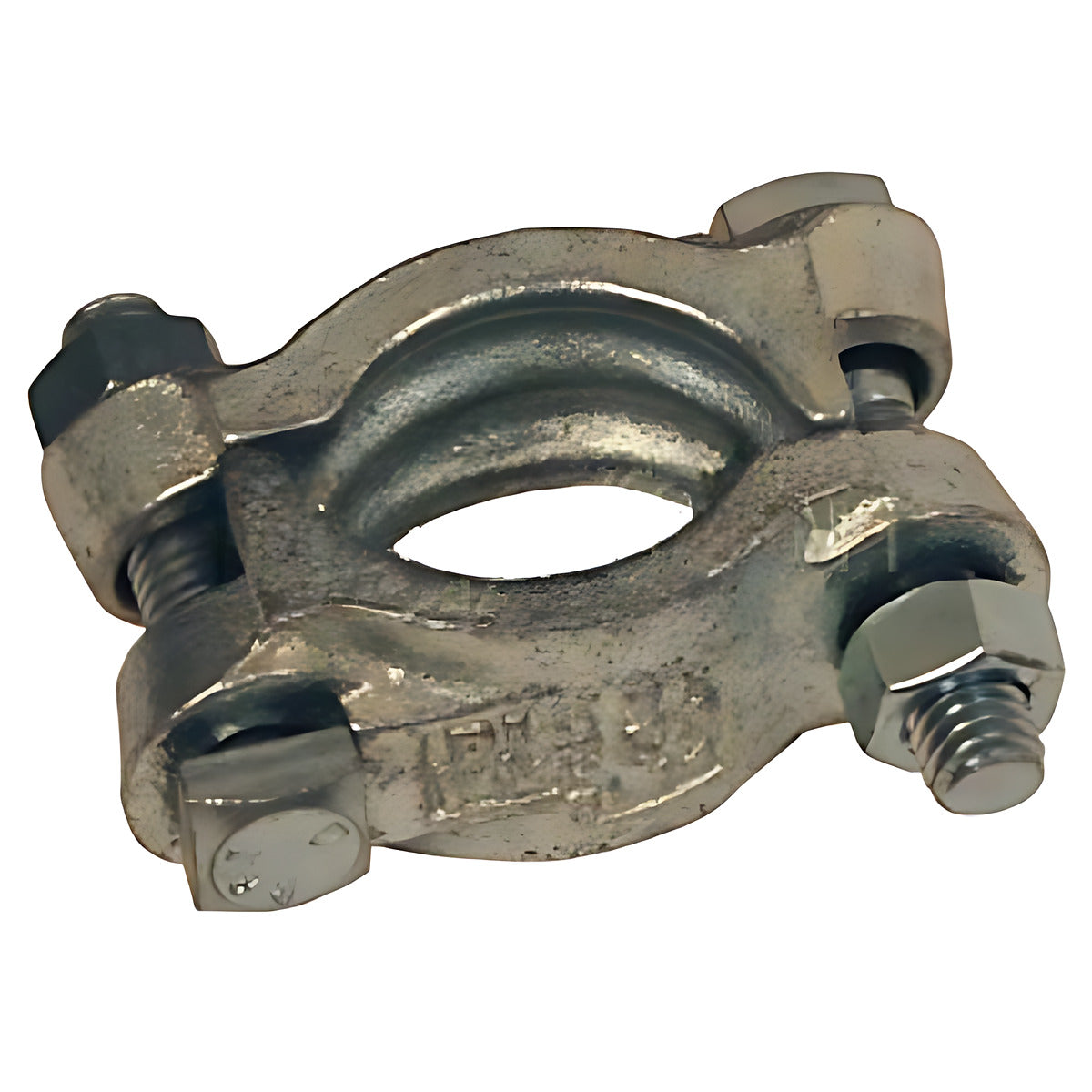

Dixon DL24 hose OD 53.6 to 58.3 mm Double Bolt Clamp Without Saddles

This Dixon double bolt clamp has no saddles. This range covers two sizes: DL24 for hose OD 53.6 to 58.3 mm and DL32 for hose OD 58.7 to 66.7 mm, each with a listed bolt torque (manufacturer-stated).

Dixon says its double bolt clamps are for use in industrial, agriculture, mining and various other industries, with dual gripping ridges on the inner surface and reinforced bolt lugs to prevent bending out of alignment (manufacturer-stated).

Where this product is used

• Securing hose in industrial, agriculture and mining applications (manufacturer-stated).
• Hose clamping on hose with an outside diameter of 53.6 to 66.7 mm.

Features

• Double bolt clamp, without saddles (manufacturer-stated)
• Dual gripping ridges on the inner surface (manufacturer-stated)
• Reinforced bolt lugs to prevent bending out of alignment (manufacturer-stated)
• DL24 for hose OD 53.6 to 58.3 mm; DL32 for hose OD 58.7 to 66.7 mm (manufacturer-stated)

Common specifications

Key specifications

Hose OD ranges and torque values are the figures in Dixon's catalogue. Dixon notes that torque values are based on dry bolts and that lubricant on the bolts reduces clamp performance, that nuts and bolts should not be lubricated, and that worn-out couplings can be dangerous and should be checked regularly and replaced. Consult Dixon when using double bolt clamps on helical wire hose (manufacturer-stated).

Selecting the right option

Measure the outside diameter of the hose where the clamp will sit and choose DL24 or DL32 from the table. Check the torque value for the exact part number. Dixon's catalogue lists a wider set of without-saddle clamps, which are linked below, and the notes under the table apply to tightening.
