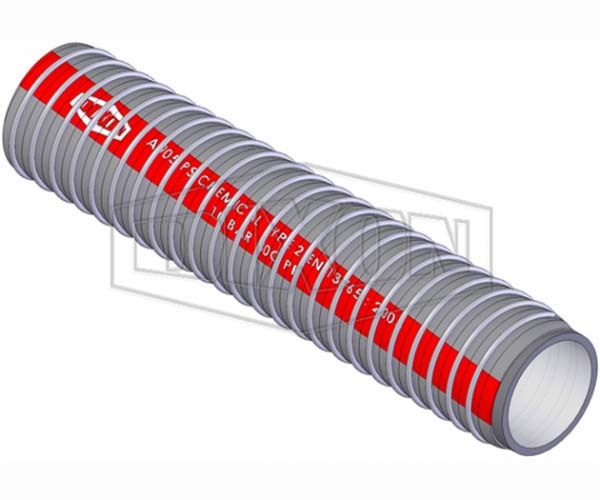

Dixon Code 952 - Composite Chemical Medium Duty Suction & Delivery Hose

Length: 40 m. ID of 50.8 mm matches standard line work without modification. Rated to 150, so you can match it to line pressure with confidence. Construction. Tube: Poly coated steel inner wire. Hose: High strength polypropylene films and fabrics,high density polyethylene film reinforcements. Polyvinyl coated polyester fabric cover. Cover: Grey with red stripe, corrugated, weather and ozone resistant. Outer wire: SS304. Branding. DIXON CHEMICAL CODE 952 MD S/D. Available Lengths. Cut Length: 5 m.

Key Specifications

Where This Is Used

• This anti-static composite hose is engineered for use with a wide range of chemicals for both suction and discharge applications.
• Primarily used with pumps, process equipment, road tankers and rail tankers.
• The hose is constructed in accordance with hose and assembly standards EN 13765 designed to be lightweight and flexible for easy handling, while still being robust, durable, and cost-effective.
• This anti-static composite hose is designed for suction and discharge use on plant or road/rail tankers with a wide range of chemicals where 100% aromatic resistance is required.

Features

• Ozone resistant.
• Weather resistant.
• Abrasion resistant.
• Chemical resistant.
• Oil resistant.
• Armatex abrasion resistant.
• Mandrel Built.
• The hose construction is lightweight and flexible for ease of handling yet remains robust hard wearing and cost effective.
