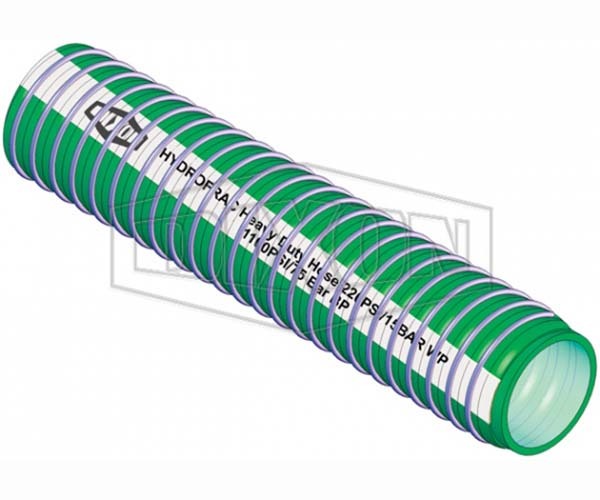

Dixon Composite hydrofrac hose, 150mm x 40 m

This Dixon composite hose is made for hydraulic fracturing duty and is also suited to pumps, process equipment, road tankers and rail tankers. It is anti-static and has a composite white tube, polypropylene/UHMWPE film and fabric reinforcement, galvanised steel outer wire, poly coated inner wire and an olive green Armatex abrasion resistant cover. Every size is rated at 230 PSI (16 bar) working pressure, 960 PSI (64 bar) burst and 0.9 bar vacuum, from -40 to 100°C, and it is constructed in accordance with EN 13765:2018 Type 3 and handles a wide range of hydrocarbons with 100% aromatic resistance.

It comes in 100, 150 and 200mm ID in 5 m and 40 m lengths.

Where this product is used

• Hydraulic fracturing suction and discharge lines
• Transfer of hydrocarbons and other fluids between pumps, process equipment, road tankers and rail tankers
• Hose runs that are dragged or laid over abrasive ground, because of the Armatex cover

Features

• Composite tube with polypropylene/UHMWPE film and fabric reinforcement
• Galvanised steel outer wire and poly coated inner wire, olive green Armatex abrasion resistant cover
• Constructed in accordance with EN 13765:2018 Type 3
• 230 PSI (16 bar) working pressure, 960 PSI (64 bar) burst, 0.9 bar vacuum
• Temperature range -40 to 100°C, anti-static

Key specifications

Choosing the right option

Choose the size from your pump and coupling bore, then check the bend radius, because the 200mm hose needs an 800mm bend radius. Composite hose uses spiral (scroll tail) camlock fittings and ferrules to match the wire pitch, and Dixon also offers a scroll tail series for this purpose. Confirm the media and temperature with Dixon for chemicals other than hydrocarbons, and check the EN 13765 type against your application.
