Dixon UHMWPE chemical hose, 25mm x 20 m

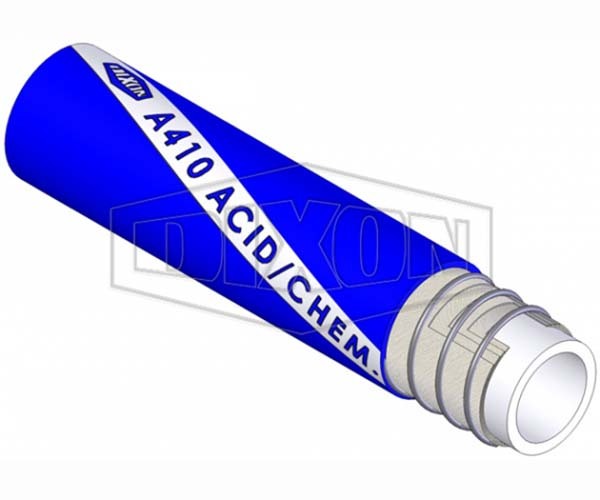

This Dixon hose has an ultra-high molecular weight polyethylene (UHMWPE) tube, a smooth blue EPDM-blend cover and a double wire helix with an antistatic copper wire, and it is mandrel built. It is a suction and discharge hose for chemicals and for food and drink liquids. It comes in the 25mm (1") and 51mm (2") hose, each as a 5 m cut length and a 20 m coil.

Where this product is used

• Suction and transfer of acids, alkalis, salts, chlorinated hydrocarbons and oxidising acids. The UHMWPE tube is resistant to a majority of chemicals, so check your own chemical against a compatibility chart
• Moving beer, wine, soft drinks, fruit juices and potable water. The tube is resistant to 96% alcohol content
• Suction lines that are steam cleaned between runs, without pressure, up to 130°C for a maximum of 30 minutes

Features

• UHMWPE tube, transparent/white, with a low friction coefficient
• Smooth blue EPDM-blend cover, ozone, weather and abrasion resistant
• Reinforcement: high tensile synthetic textile cords, double wire helix and antistatic copper wire
• Working pressure 150 PSI (10 bar), burst pressure 600 PSI
• Temperature range -40°C to 100°C
• Tube: FDA title 21 art. 177.2600 (e) for liquid foods, BfR, KTW and phthalate free

Key specifications

Choosing the right option

Match the tube to your chemical first: UHMWPE suits many chemicals, but always check the specific product, concentration and temperature. a minimum cut length of 5 m, and charges apply for cutting hose. Choose the 20 m coil to avoid cut charges on longer runs.

Related Dixon hoses: Dixon Code 951 Composite Chemical Medium Duty Suction & Delivery Hose, Dixon Code 952 - Composite Chemical Medium Duty Suction & Delivery Hose and Dixon Composite Hydrofrac Heavy Duty Suction & Delivery Hose.
