Dixon Reducing shouldered adaptor x BSP, 100 x 50
Available

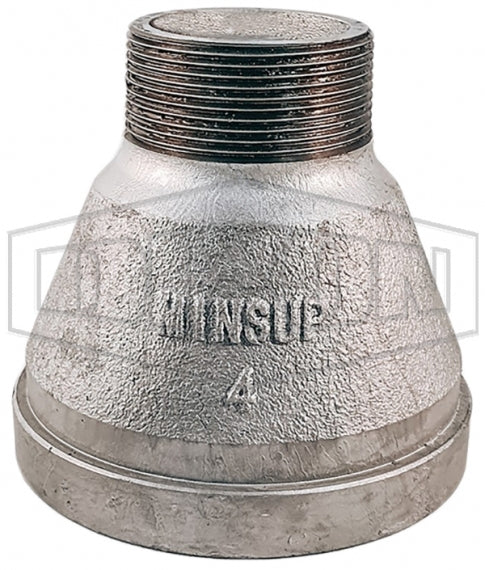

This Dixon reducing adaptor changes from a shouldered pipe end to a smaller BSP thread, so a threaded valve or fitting can connect to a shouldered end pipeline. The two 100 NB sizes are rated at 750 PSI and the 150 NB size at 580 PSI. The overall lengths are 279mm (100 x 50), 110mm (100 x 80) and 355mm (150 x 100).
Where this product is used
- Reducing from a shouldered end pipeline to a smaller BSP threaded connection in mining and construction pipework
- Connecting a valve, strainer or instrument to shouldered pipe
Features
- Shouldered end by BSP thread reducing adaptor, galvanised mild steel
- Working pressure: 750 PSI (100 NB), 580 PSI (150 NB)
- Pipe OD: 114.3mm (100 NB) and 165.1mm (150 NB)

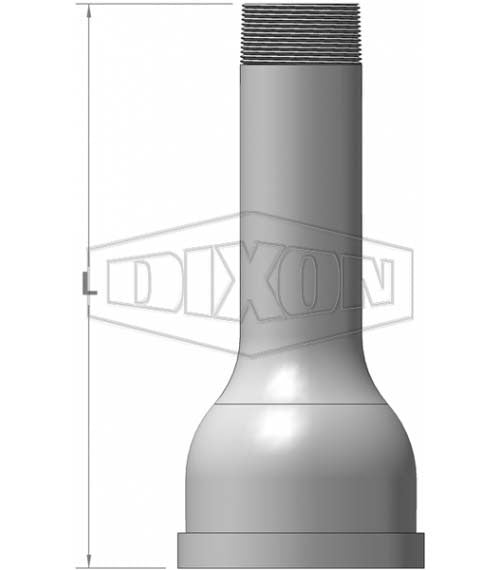

- Overall lengths: 279, 110 and 355mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Material | Mild steel, galvanised |
| Ends | Shouldered x BSP |
| Working pressure | 750 PSI (100 NB), 580 PSI (150 NB) |
| Sizes (shouldered NB x BSP mm) | 100 x 50, 100 x 80, 150 x 100 |
Choosing the right option
Check the shouldered pipe size first (100 or 150 NB), then the BSP size you are reducing to. A bolted shouldered coupling joins the shouldered end to the pipe.
The straight shouldered x BSPT male threaded adaptors directly above this fitting comes in the same section.
Related Dixon shouldered fittings: Dixon Shouldered Screwed Adaptor Short Series Galvanised Mild Steel, Dixon Shouldered Bolted Coupling - Iron and Dixon Shouldered Blank End With Female BSP Outlet Galvanised Mild Steel.
| Option | Part number | SKU |
|---|---|---|
| 100 x 50 | 08/048/13/002 | A0067535 |
| 100 x 80 | 08/048/13/011 | A0067536 |
| 150 x 100 | 08/048/13/016 | A0067537 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Reducing Shouldered Adapter x BSP Galvanised Mild Steel: 100 x 50
SKU: A0067535 | Model: 08/048/13/002
Dixon 08/048/13/002: Reducing shouldered adaptor x BSP, 100 x 50.
