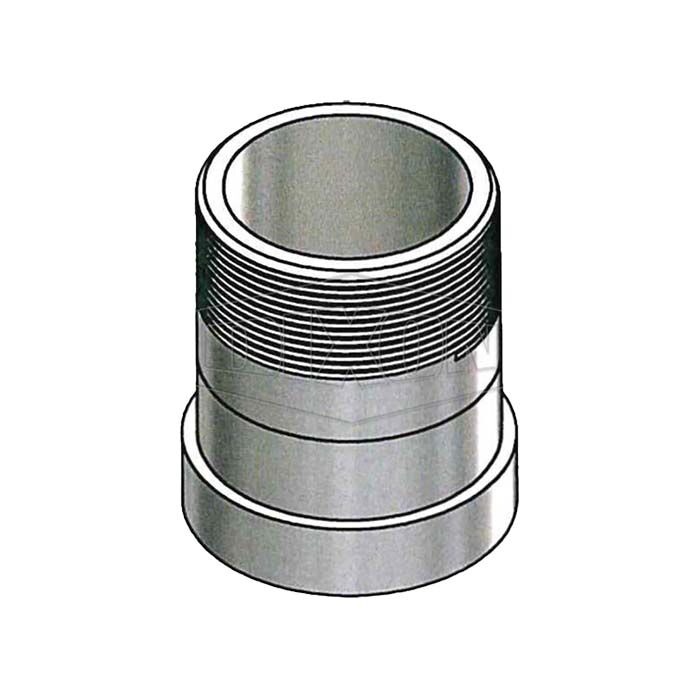

Dixon Shouldered x BSPT male adaptor, 2" (50mm)

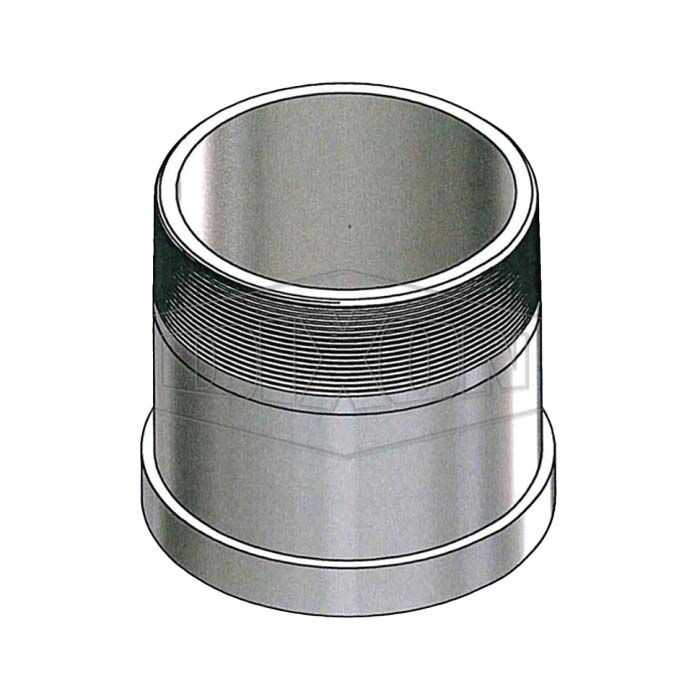

This Dixon shouldered screwed adaptor has a shouldered end for a bolted shouldered coupling and a BSPT male thread, so a shouldered line can connect to threaded valves and fittings. It comes in the short series in 50, 80, 100 and 150 NB (2" to 6"). The 50, 80 and 100 NB sizes are rated at 750 PSI and the 150 NB at 580 PSI, with short lengths of 150, 150, 75 and 150mm.

Where this product is used

• Connecting a threaded BSPT valve or fitting to shouldered end pipe in mining and construction

Features

• Shouldered x BSPT male threaded adaptor, short series
• BSP thread size equals the NB size: 50, 80, 100 or 150mm
• Working pressure: 750 PSI (50 to 100 NB), 580 PSI (150 NB)
• 08/048/10/000 and 08/048/10/003: one piece casting design, plated SG iron

Key specifications

Choosing the right option

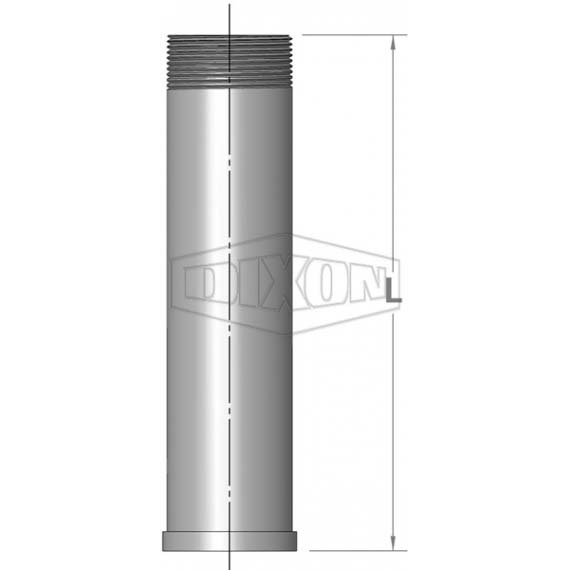

Check whether you need the short series (this product) or the long series, which is more than twice as long on the 50 and 100 NB sizes. Match the BSPT thread to your valve or fitting, and use a thread sealant suited to the fluid. A bolted shouldered coupling joins the shouldered end to the pipe.
