Dixon Roll grooved 90° elbow, 4" (100mm)

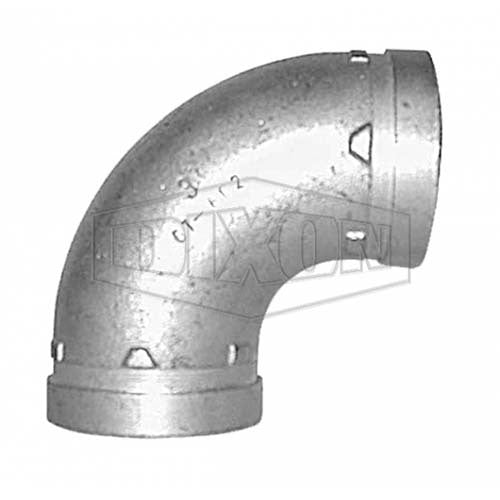

This Dixon roll grooved 90° elbow turns a grooved pipeline through a right angle. It is the short pattern, sold as Style 100S, in ductile iron (ASTM A536) with a hot dip galvanised finish (AS4680). It comes in it in 4", 6" and 8" (100, 150 and 200 NB).

The 90° elbow range is rated at 300 PSI and gives centre-to-end dimensions of 102, 140 and 175mm for these sizes. The range is comparable to Victaulic No. 001 for sizes 32 to 200 NB.

Where this product is used

• Fire protection, water transmission and treatment, and irrigation pipework where a grooved system is used instead of flanged or welded joints
• Right-angle changes of direction in roll grooved pipework

Features

• 90° elbow with roll grooved ends
• Ductile iron (ASTM A536), hot dip galvanised finish (AS4680)
• Working pressure: 300 PSI
• The range is UL listed and FM approved
• Comparable to Victaulic No. 001 (32 to 200 NB)

Key specifications

Choosing the right option

Confirm the pipe OD before ordering: Dixon also offers a 150 USA elbow with a 168.3mm OD next to the 165.1mm 150 NB size, and the two are not interchangeable. A grooved coupling and a gasket suited to the fluid are needed at each end.

Those sizes are not part of this product.
