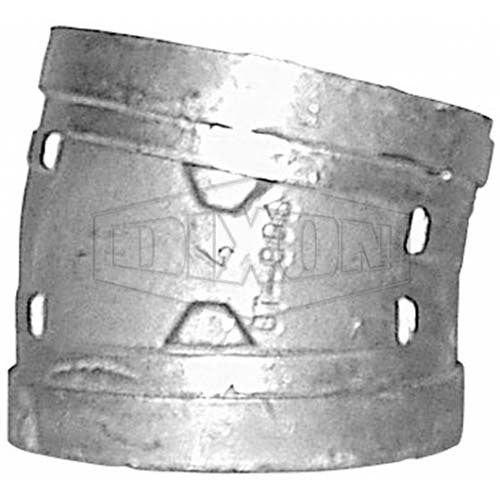

Dixon 11.25° roll grooved elbow, 4" (100mm)

This Dixon 11.25° elbow makes a very small change of direction in a roll grooved pipeline. It is ductile iron (ASTM A536) with a hot dip galvanised finish (AS4680). It comes in it in 3", 4", 6" and 8" (80, 100, 150 and 200 NB).

The range is rated at 300 PSI and gives centre-to-end dimensions of 38, 44, 51 and 51mm for these sizes. It compares it with Victaulic No. 13.

Where this product is used

• Fire protection, water transmission and treatment, and irrigation pipework where a grooved system is used instead of flanged or welded joints
• Small angle corrections in roll grooved pipework where a 22.5° or 45° elbow would turn the line too far

Features

• 11.25° bend for roll grooved pipe
• Ductile iron (ASTM A536), hot dip galvanised finish (AS4680)
• Working pressure: 300 PSI
• The grooved elbow range is UL listed and FM approved
• Comparable to Victaulic No. 13

Key specifications

Choosing the right option

An 11.25° elbow is the smallest angle in Dixon's grooved elbow range, which also has 22.5°, 45° and 90° patterns. Pick the angle that matches the change of direction you need, and confirm the pipe OD before ordering. Each end needs a grooved coupling and a gasket suited to the fluid.

Related Dixon grooved elbows: Dixon Roll Grooved 45° Elbow Short - Style 101S - Galvanised and Dixon Roll Grooved 90° Elbow Short - Style 100S - Galvanised.

Couplings: Dixon Roll Grooved Rigid Coupling - Galvanised and Dixon Roll Grooved Coupling Flexible Heavy Duty Galvanised.
