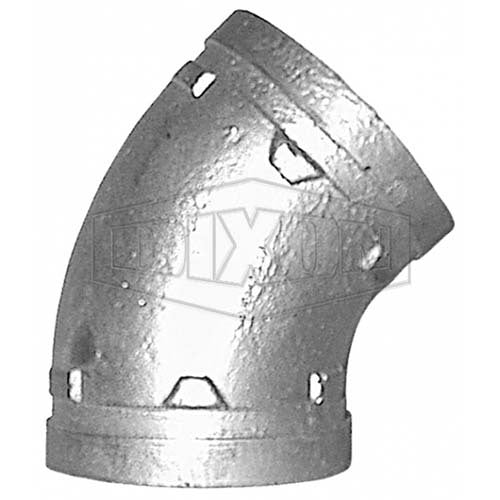

Dixon FWG-11-114S 4" (100 mm) Roll Grooved 45° Elbow Short - Style 101S - Galvanised

This Dixon roll grooved 45° elbow turns a grooved pipeline through half a right angle. It is the short pattern, sold as Style 101S in the store, in ductile iron (ASTM A536) with a hot dip galvanised finish (AS4680) (manufacturer-stated).

The store lists it in 4", 6" and 8" (100, 150 and 200 NB). Dixon rates the 45° elbow range at 300 PSI and gives centre-to-end dimensions of 76, 89 and 108 mm for these sizes. Dixon compares it with Victaulic No. 003 for sizes 32 to 200 NB (manufacturer-stated).

Where this product is used

• Fire protection, water transmission and treatment, and irrigation pipework where a grooved system is used instead of flanged or welded joints (manufacturer-stated).
• Offsets and changes of direction at 45° in roll grooved fire services and irrigation pipework.

Features

• 45° elbow with roll grooved ends (manufacturer-stated)
• Ductile iron (ASTM A536), hot dip galvanised finish (AS4680) (manufacturer-stated)
• Working pressure: 300 PSI (manufacturer-stated)
• Dixon lists the grooved elbow range as UL listed and FM approved (manufacturer-stated)
• Comparable to Victaulic No. 003 (32 to 200 NB) (manufacturer-stated)

Common specifications

Key specifications

Dixon also lists this elbow in 32 to 80 NB, 250 and 300 NB, and a 150 USA size (FWG-11-168, 168.3 mm pipe OD). Those sizes are not part of this product.

Selecting the right option

Two 45° elbows make a 90° turn with a gentler sweep than a single 90° elbow. Confirm the pipe OD before ordering and allow for a grooved coupling and gasket at each end.
