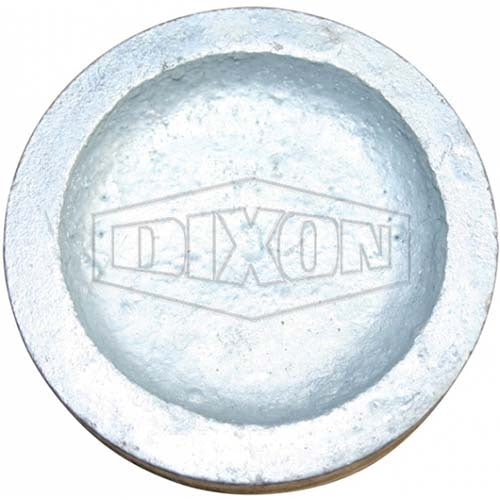

Dixon FWG-60-60 2" (50 mm) Roll Grooved End Cap - Galvanised
Available
This Dixon roll grooved end cap closes the end of a grooved pipe run, with the cap held on by a grooved coupling in the same way as any other joint. It is ductile iron (ASTM A536) with a hot dip galvanised finish (AS4680) (manufacturer-stated).
The store lists six sizes from 2" to 8" (50 to 200 NB). Dixon rates the range at 300 PSI, lists it as UL listed and FM approved, and compares it with Victaulic No. 6. The cap range is also made in 32 and 40 NB, which are not part of this product (manufacturer-stated).
Where this product is used
- Closing the end of a roll grooved line in fire protection, water and irrigation pipework (manufacturer-stated).
Features
- Roll grooved end cap (manufacturer-stated)
- Ductile iron (ASTM A536), hot dip galvanised finish (AS4680) (manufacturer-stated)
- Working pressure: 300 PSI (manufacturer-stated)
- Dixon lists the range as UL listed and FM approved (manufacturer-stated)
- Comparable to Victaulic No. 6 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | Ductile iron (ASTM A536) |
| Finish | Hot dip galvanised (AS4680) (manufacturer-stated) |
| Ends | Roll grooved |
| Working pressure | 300 PSI |
| Approvals | UL listed and FM approved (manufacturer-stated) |
| Comparable to | Victaulic No. 6 (manufacturer-stated) |
| Model number | XGQT06 |
Key specifications
| Dixon part number | Size (NB) | Pipe OD (mm) | Working pressure |
|---|---|---|---|
| FWG-60-114 | 4" (100 mm) | 114.3 | 300 PSI |
| FWG-60-165 | 6" (150 mm) | 165.1 | 300 PSI |
| FWG-60-219 | 8" (200 mm) | 219.1 | 300 PSI |
| FWG-60-60 | 2" (50 mm) | 60.3 | 300 PSI |
| FWG-60-76 | 2-1/2" (65 mm) | 76.1 | 300 PSI |
| FWG-60-88 | 3" (80 mm) | 88.9 | 300 PSI |
Dixon also lists an end cap with a BSP outlet (for example FWG-60-114T, 100 x 25) for gauges and drains; it is not part of this product.
Selecting the right option
An end cap needs a grooved coupling and a gasket to hold it on, so allow for one coupling per cap. A rigid coupling holds the cap stiffly, while a flexible coupling allows some movement at the joint. If you need a drain, vent or gauge point at the end of the line, ask us about the end cap with a BSP outlet.
Related products
Related Dixon grooved fittings: Dixon Roll Grooved x Female BSP Concentric Reducer Galvanised, Dixon Roll Grooved Equal Tee Short Style 110S - Galvanised and Dixon Roll Grooved 90° Elbow Short - Style 100S - Galvanised. Couplings: Dixon Roll Grooved Rigid Coupling - Galvanised and Dixon Roll Grooved Coupling Flexible Heavy Duty Galvanised.
