Dixon A60505020 51 mm x 20 m Rubber Food & Beverage Discharge Hose
Available

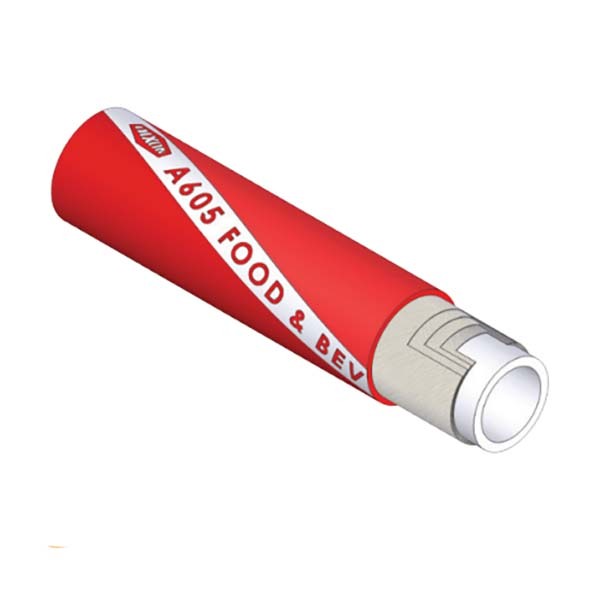

This Dixon hose is a flexible discharge hose with a white food grade natural rubber tube, a smooth red EPDM-blend cover and high tensile textile cord reinforcement (manufacturer-stated). It has a Mylar layline and an embossed tape line, and it is mandrel built.
Dixon's industrial hose catalogue rates it at 150 PSI (10 bar) working pressure and 450 PSI (30 bar) burst, for -40°C to 95°C, with steam cleaning without pressure up to 130°C for a maximum of 30 minutes (manufacturer-stated). Dixon calls it a discharge hose, and its reinforcement is textile cord with no helix listed, so it is not listed for suction duty. This listing covers 25, 38 and 51 mm.
Where this product is used
- Transferring alcoholic beverages up to 36% alcohol content, including beer and wine (manufacturer-stated).
- Moving other beverages and food products, including soft drinks, fruit juices and potable water (manufacturer-stated).
- Discharge lines that are steam cleaned without pressure, up to 130°C for a maximum of 30 minutes (manufacturer-stated).
Features
- Food grade natural rubber tube, white; tube resistant to 36% alcohol content (manufacturer-stated)
- Smooth wrapped EPDM-blend cover, red (manufacturer-stated)
- Reinforcement: high tensile synthetic textile cords (manufacturer-stated)
- Abrasion, weather and ozone resistant (manufacturer-stated)
- Working pressure 150 PSI (10 bar); burst pressure 450 PSI (30 bar) (manufacturer-stated)
- Temperature range -40°C to 95°C (manufacturer-stated)
- Listed as FDA approved food grade (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | Natural rubber, food grade, white |
| Cover | EPDM blend, smooth wrapped finish, red |
| Reinforcement | High tensile synthetic textile cords |
| Working pressure | 150 PSI (10 bar) |
| Burst pressure | 450 PSI (30 bar) |
| Temperature range | -40°C to 95°C |
| Steam cleaning | Without pressure, up to 130°C for a maximum of 30 minutes |
| Food contact listing | FDA approved food grade (manufacturer-stated) |
| Sizes | 25.4, 38.1 and 50.8 mm hose ID |
Key specifications
| Dixon part number | Pack | Hose ID (mm) | OD (mm) | Working PSI (bar) | Burst PSI (bar) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|
| A605025 | 5 m cut length | 25.4 | 37.0 | 150 (10) | 450 (30) | 150 | 0.55 |
| A60502520 | 20 m coil | 25.4 | 37.0 | 150 (10) | 450 (30) | 150 | 0.55 |
| A60504020 | 20 m coil | 38.1 | 50.0 | 150 (10) | 450 (30) | 300 | 1.65 |
| A605050 | 5 m cut length | 50.8 | 64.0 | 150 (10) | 450 (30) | 350 | 1.70 |
| A60505020 | 20 m coil | 50.8 | 64.0 | 150 (10) | 450 (30) | 350 | 1.70 |
Figures are from Dixon's industrial hose catalogue. The catalogue ID is 25.4, 38.1 and 50.8 mm; the store size options round these to 25, 38 and 51 mm. The store has no 5 m cut-length variant of the 38 mm hose.
Selecting the right option
This hose is for discharge, not suction: if you need vacuum, choose a helix-reinforced hose such as the Foodboss or crush-resistant food hoses linked below. Dixon's older Hygienic Product Range catalogue states this hose is not recommended for fatty foods (manufacturer-stated), so confirm with Dixon before using it with fats or oils. Dixon's Hygienic Product Range catalogue also states a minimum cut length of 5 m, and charges apply for cutting hose (manufacturer-stated).
Related products
Related Dixon hoses: Dixon Rubber Premium Food & Wine Suction & Delivery Hose Crush Proof, Dixon Rubber Foodboss Milk Food & Beverage Suction & Delivery Hose and Dixon Wine & Beverage Heavy Duty Suction & Delivery Hose.
