Dixon Foodboss milk and beverage hose, 20mm x 5 m
Out of stock

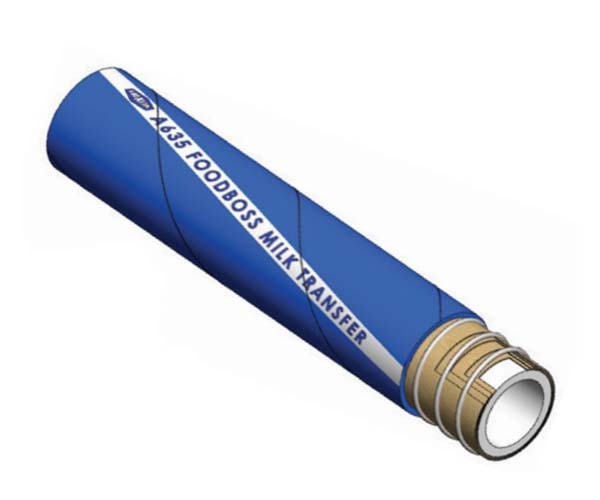

This Dixon Foodboss hose is a flexible, spiral-reinforced hose with a food grade natural rubber tube (white), a blue natural rubber blend cover and textile cords with a double embedded steel wire helix. It is mandrel built, with a smooth wrapped finish. It for milk transfer, tanker loading and unloading, and dairy bays, and rates it at 90 PSI (6 bar) working pressure, 270 PSI burst and 0.9 bar vacuum, for -40°C to 95°C.
It comes in the 20mm and 63.5mm hose in cut lengths, 20 m coils and a 60 m coil.
Where this product is used
- Transporting milk and loading and unloading tankers, dairy unloading bays, and equipment within processing and filling facilities
- Moving alcoholic beverages up to 36% alcohol content, including beer, wine and cider, and liquid foods such as soft drinks, fruit juices and potable water
- Hose runs that are steam cleaned without pressure, up to 130°C for a maximum of 30 minutes
Features
- Food grade tube: natural rubber, white
- Cover: smooth wrapped natural rubber blend, blue
- Reinforcement: high tensile synthetic textile cords with double embedded steel wire helix
- Abrasion, weather and ozone resistant
- Working pressure 90 PSI (6 bar), burst pressure 270 PSI, vacuum 0.9 bar
- Temperature range -40°C to 95°C
- FDA approved, with FDA title 21 art. 177.2600 (e) for liquid foods, BfR, KTW and phthalate free
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Tube | Natural rubber, food grade, white |
| Cover | Natural rubber blend, smooth wrapped finish, blue |
| Reinforcement | High tensile synthetic textile cords, double embedded steel wire helix |
| Working pressure | 90 PSI (6 bar) |
| Burst pressure | 270 PSI |
| Vacuum | 0.9 bar |
| Temperature range | -40°C to 95°C |
| Steam cleaning | Without pressure, up to 130°C for a maximum of 30 minutes |
| Food contact compliant | FDA title 21 art. 177.2600 (e) for liquid foods, BfR, KTW, phthalate free |
| Sizes | 20mm and 63.5mm hose ID |
Choosing the right option
Check the temperature and the product: the hose is rated -40°C to 95°C, and steam cleaning is without pressure only. Confirm the details with Dixon for critical dairy duty.
Related Dixon hoses: Dixon Rubber Food, Milk & Beverage Suction & Delivery Hose, Dixon Rubber Premium Food & Wine Suction & Delivery Hose Crush Proof and Dixon Rubber Food & Beverage Delivery Hose.
| Option | Part number | SKU |
|---|---|---|
| 20 / 5 | A635020 | A0068559CUT |
| 20 / 20 | A635020020 | A0068559C20 |
| 63.5 / 5 | A635065 | A0068563CUT |
| 63.5 / 20 | A635065020 | A0068563C20 |
| 63.5 / 60 | A635065060 | A0068563C60 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Rubber Foodboss Milk Food & Beverage Suction & Delivery Hose: 20 / 5
SKU: A0068559CUT | Model: A635020
Dixon A635020: Foodboss milk and beverage hose, 20mm x 5 m.
