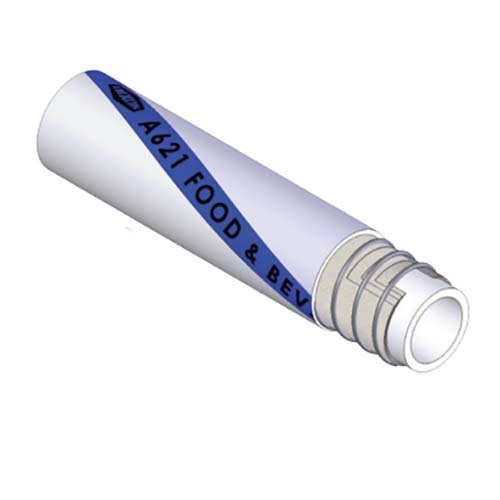

Dixon Rubber Food, Milk & Beverage | AIMS Industrial

• Service temperature For oily products -40°C to 120°C., suitable for the conditions on real industrial sites.
• Rated to 1","Color: White","Hose Outside Diameter (mm): 90","Weight kg/m: 2.89","Application: Food & Alcohol","Working Pressure (psi): 150","Hose Length: 20 m","Burst Pressure: 450 psi","Hose Inside Diameter (mm): 76","Vacuum Rating M/h20: 9","Bend Radius (mm): 300"], so you can match it to line pressure with confidence.

Construction

• Tube: White, smooth food quality rubber. In accordance with FDA and 3A sanitary standards, NBR / EPDM blend.
• Cover: Blue/White, smooth (wrapped finish) synthetic rubber, abrasion and ozone resistant. CR - Neoprene
• Reinforcement: High strength synthetic cord plus helix wire

Available Lengths

• Cut Length: 5 m
• Coil Length: 20 m
