Dixon A625025 25.4 mm x 5 m Rubber Food & Wine Suction Hose Crush Proof
Out of stock

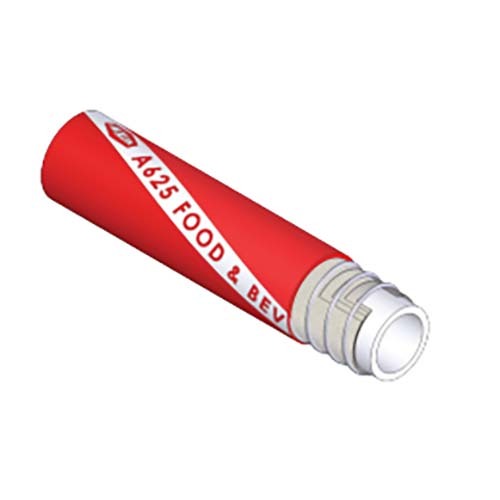

This Dixon hose is a crush-resistant food and wine hose with a white food grade IIR butyl tube, a smooth red EPDM-blend cover and textile cord reinforcement with an embedded PET helix (manufacturer-stated). It is mandrel built.
Dixon's industrial hose catalogue rates it at 150 PSI (10 bar) working pressure, 450 PSI burst and 0.9 bar vacuum, for -40°C to 120°C, with steam cleaning without pressure up to 140°C for a maximum of 30 minutes (manufacturer-stated). This listing covers 25.4, 38, 50.8 and 63.5 mm ID, each as a 5 m cut length and a 20 m coil.
Where this product is used
- Transferring beverages up to 96% alcohol content, including beer and wine (manufacturer-stated).
- Moving other beverages and foodstuffs, including soft drinks, fruit juices and potable water (manufacturer-stated).
- Suction lines where a crush-resistant helix is wanted, and runs that are steam cleaned without pressure up to 140°C for a maximum of 30 minutes (manufacturer-stated).
Features
- Food grade IIR butyl tube, white (manufacturer-stated)
- Crush resistant PET helix, embedded in textile cord reinforcement (manufacturer-stated)
- Smooth wrapped EPDM-blend cover, red (manufacturer-stated)
- Abrasion, weather and ozone resistant (manufacturer-stated)
- Working pressure 150 PSI (10 bar); burst pressure 450 PSI; vacuum 0.9 bar (manufacturer-stated)
- Temperature range -40°C to 120°C (manufacturer-stated)
- Listed as FDA approved food grade (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | IIR butyl, food grade, white |
| Cover | Smooth wrapped EPDM blend, red |
| Reinforcement | High tensile synthetic textile cords, embedded PET helix |
| Working pressure | 150 PSI (10 bar) |
| Burst pressure | 450 PSI |
| Vacuum | 0.9 bar |
| Temperature range | -40°C to 120°C |
| Steam cleaning | Without pressure, up to 140°C for a maximum of 30 minutes |
| Food contact listing | FDA approved food grade (manufacturer-stated) |
| Sizes | 25.4, 38, 50.8 and 63.5 mm hose ID |
Key specifications
| Dixon part number | Pack | Hose ID (mm) | OD (mm) | Working PSI (bar) | Burst PSI | Vacuum (bar) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|
| A625025 | 5 m cut length | 25.4 | 37.0 | 150 (10) | 450 | 0.9 | 115 | 0.90 |
| A625025020 | 20 m coil | 25.4 | 37.0 | 150 (10) | 450 | 0.9 | 115 | 0.90 |
| A625040 | 5 m cut length | 38.1 | - | 150 (10) | 450 | 0.9 | 180 | 1.57 |
| A625040020 | 20 m coil | 38.1 | - | 150 (10) | 450 | 0.9 | 180 | 1.57 |
| A625050 | 5 m cut length | 50.8 | 65.0 | 150 (10) | 450 | 0.9 | 245 | 1.91 |
| A625050020 | 20 m coil | 50.8 | 65.0 | 150 (10) | 450 | 0.9 | 245 | 1.91 |
| A625065 | 5 m cut length | 63.5 | 79.5 | 150 (10) | 450 | 0.9 | 310 | 2.82 |
| A625065020 | 20 m coil | 63.5 | 79.5 | 150 (10) | 450 | 0.9 | 310 | 2.82 |
Figures are from Dixon's industrial hose catalogue. The OD of the 38.1 mm hose is not shown because Dixon's documents disagree on it (52.0 mm in the industrial hose catalogue, 50.0 mm in the 2025 Vintage Catalogue). The catalogue ID is 38.1 mm; the store size option is 38 mm.
Selecting the right option
Check the temperature and the product: the hose is rated -40°C to 120°C, and steam cleaning is without pressure only. For long runs choose the 20 m coil; Dixon's Hygienic Product Range catalogue states a minimum cut length of 5 m, and charges apply for cutting hose (manufacturer-stated). Confirm dimensions with Dixon if clearance is tight.
Related products
Related Dixon hoses: Dixon Rubber Food & Beverage Delivery Hose, Dixon Rubber Foodboss Milk Food & Beverage Suction & Delivery Hose and Dixon Wine & Beverage Heavy Duty Suction & Delivery Hose.
