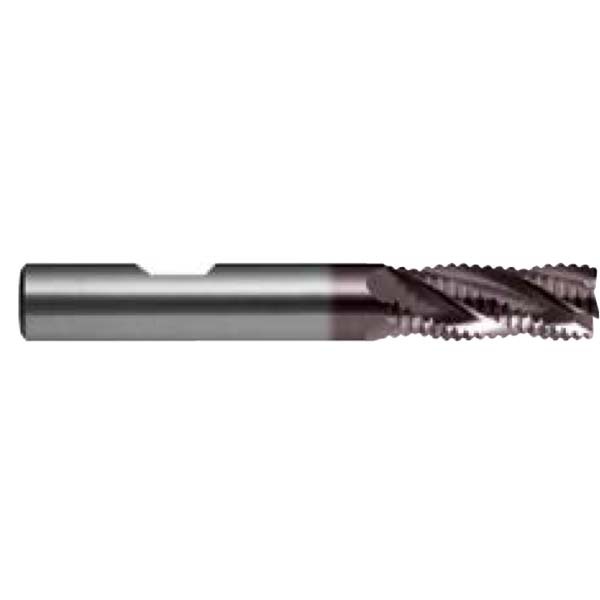

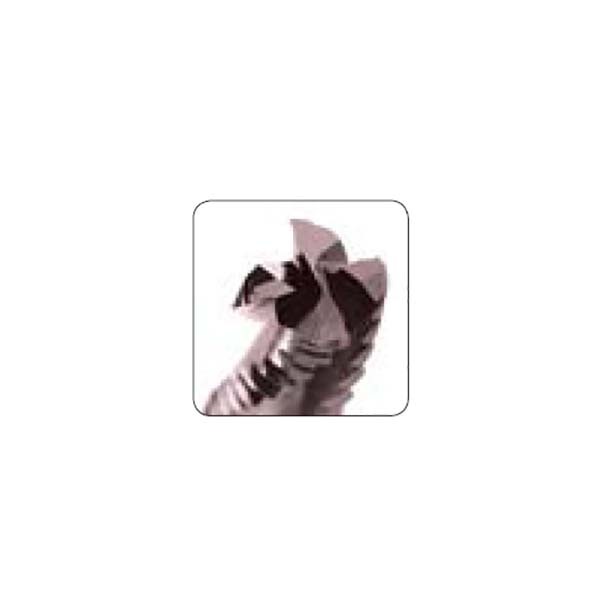

Sutton E548 8mm Roughing Endmill 3 Flute - Carbide VHM - TiAlN - Regular
Available
The Sutton E548 is a roughing endmill with 3 to 4 flutes, depending on size, made from solid carbide (VHM), with a TiAlN coating. It is in the regular length series. This listing covers 8 metric sizes from 4 mm to 20 mm.
The cutting edge has a 30° helix with NR (normal) geometry and the designation is N. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h6 shank tolerance and js14 cutting diameter tolerance. The cutting length is to DIN 6527 L.
Where this product is used
- Roughing.
- Heavy cuts, where the NR geometry allows for them.
- Materials up to 1600 N/mm2.
Design features
- Solid carbide (VHM) construction.
- TiAlN coating for longer tool life.
- 3 to 4 flutes, 30° helix with NR (normal) geometry.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) js14, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

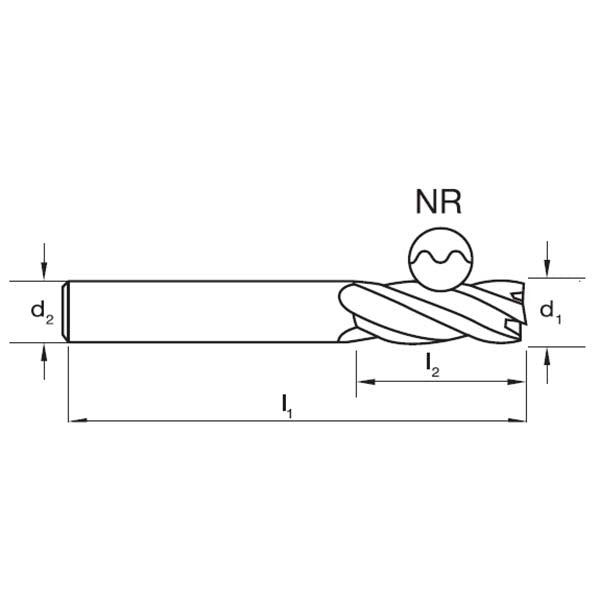

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E548 0400 | 4 | 57 | 11 | 6 | 3 |
| E548 0500 | 5 | 57 | 13 | 6 | 3 |
| E548 0600 | 6 | 57 | 13 | 6 | 3 |
| E548 0800 | 8 | 63 | 19 | 8 | 3 |
| E548 1000 | 10 | 72 | 22 | 10 | 4 |
| E548 1200 | 12 | 83 | 26 | 12 | 4 |
| E548 1600 | 16 | 92 | 32 | 16 | 4 |
| E548 2000 | 20 | 104 | 38 | 20 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E548 |
| Type | Roughing Endmill, 3-4 flute, regular length |
| Material | solid carbide (VHM) |
| Finish | TiAlN |
| Helix / geometry | R30 NR |
| Designation | N |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | js14 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 8 sizes, 4 to 20 mm |
Related products
Related Sutton carbide roughing endmills: E547 metric roughing endmill (regular), TiAlN, plain shank, E549 metric roughing endmill (regular), AlCrN, plain shank, E550 metric roughing endmill (regular), AlCrN, Weldon flat shank.
