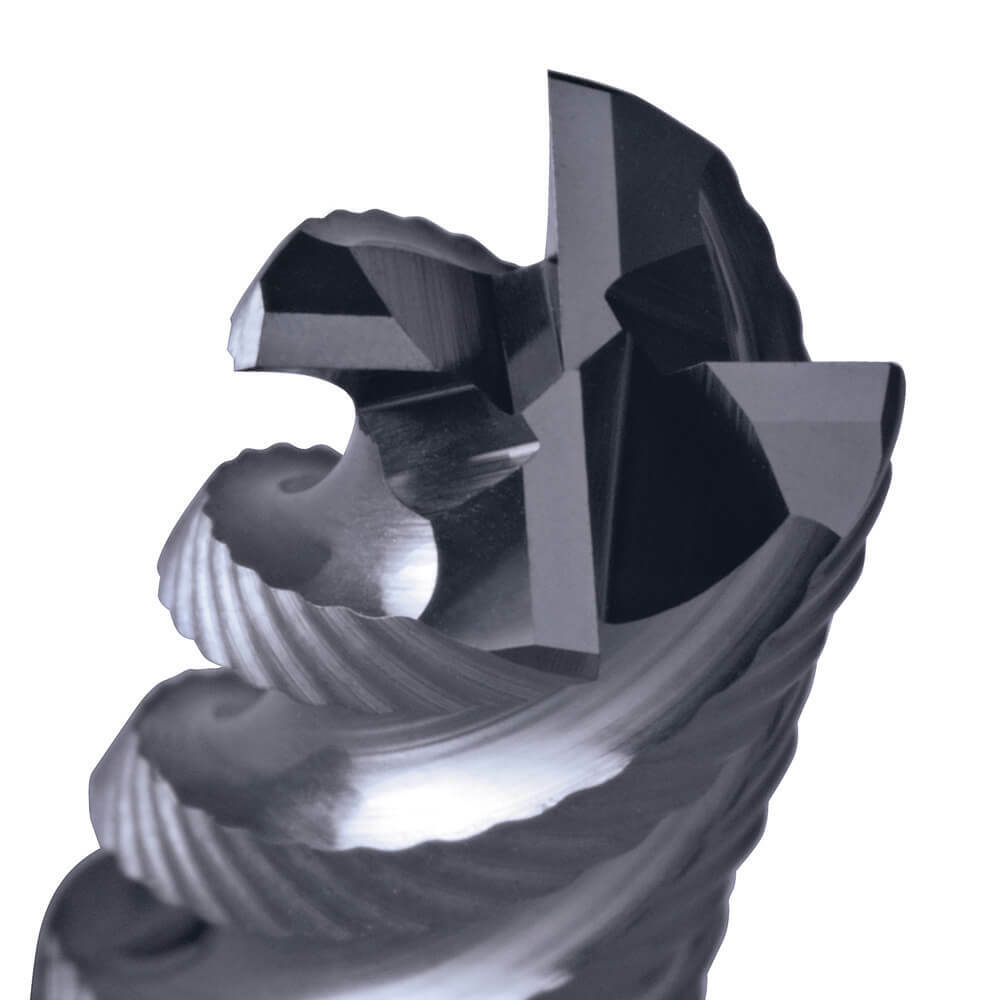

Sutton E549 4mm Roughing Endmill 3 Flute - Carbide VHM Ultra - AlCrN - Regular
Available
The Sutton E549 is a roughing endmill with 3 to 6 flutes, depending on size, made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the regular length series. This listing covers 9 metric sizes from 4 mm to 25 mm.
The cutting edge has a 45° helix with HRS geometry and the designation is UNI. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and h10 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Heavy cuts in short and long chipping materials, where the HRS geometry allows for them.
- Materials up to 1600 N/mm2.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 3 to 6 flutes, 45° helix with HRS geometry.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) h10, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

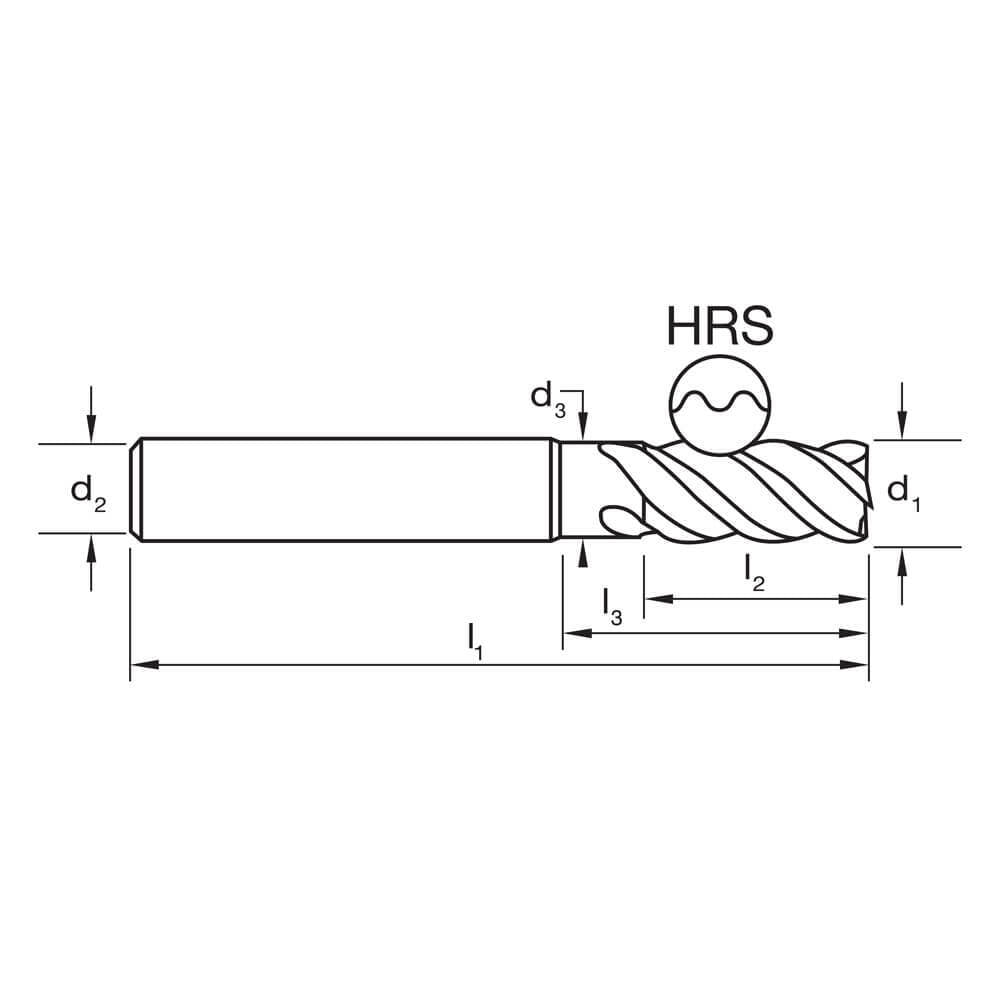

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes |
|---|---|---|---|---|---|---|---|
| E549 0400 | 4 | 57 | 11 | 19 | 6 | 3.7 | 3 |
| E549 0500 | 5 | 57 | 13 | 20 | 6 | 4.6 | 4 |
| E549 0600 | 6 | 57 | 16 | 21 | 6 | 5.5 | 4 |
| E549 0800 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 |
| E549 1000 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 |
| E549 1200 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 |
| E549 1600 | 16 | 92 | 32 | 44 | 16 | 15.5 | 5 |
| E549 2000 | 20 | 104 | 38 | 54 | 20 | 19 | 6 |
| E549 2500 | 25 | 120 | 45 | 60 | 25 | 24.5 | 6 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E549 |
| Type | Roughing Endmill, 3-6 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R45 HRS |
| Designation | UNI |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 9 sizes, 4 to 25 mm |
Related products
Related Sutton carbide roughing endmills: E550 metric roughing endmill (regular), AlCrN, Weldon flat shank, E548 metric roughing endmill (regular), TiAlN, Weldon flat shank, E547 metric roughing endmill (regular), TiAlN, plain shank.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

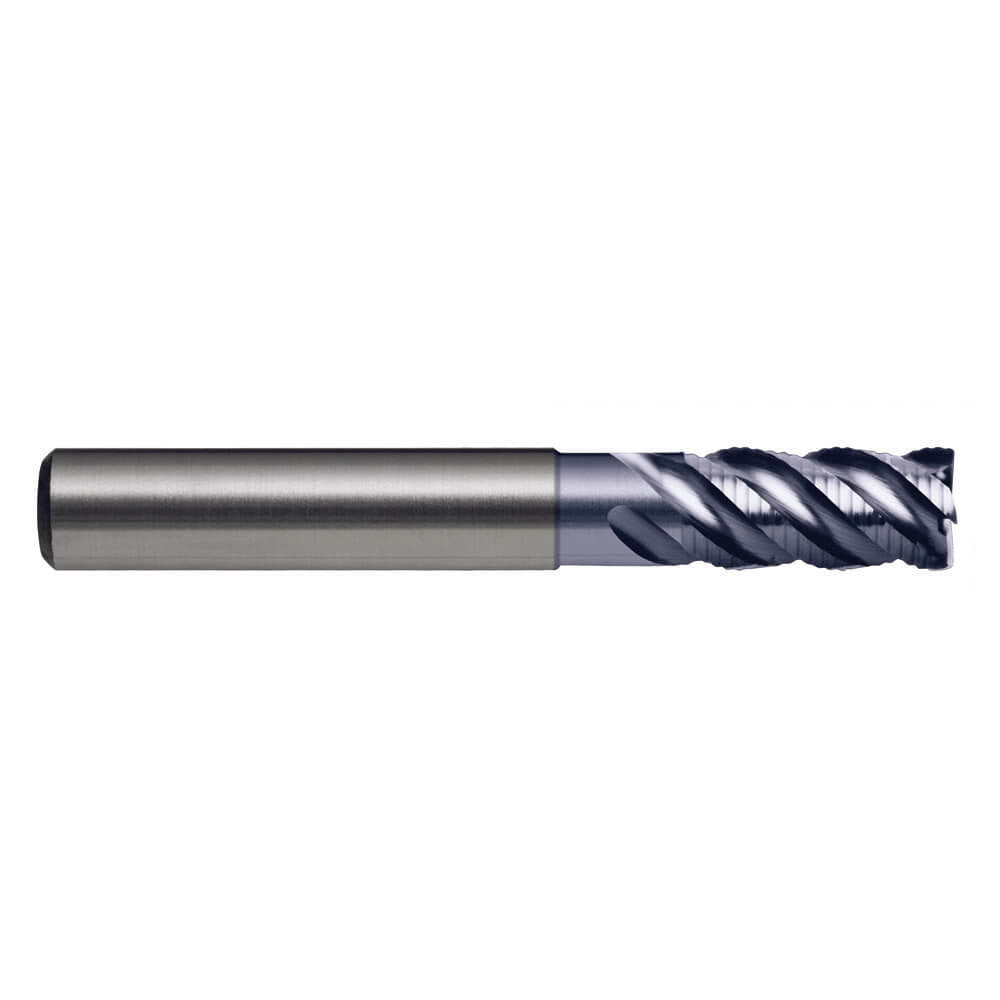

Sutton E549 Metric 3-6 Flute Roughing Endmill - Carbide VHM Ultra - AlCrN - Regular - HA: 57 / 4
