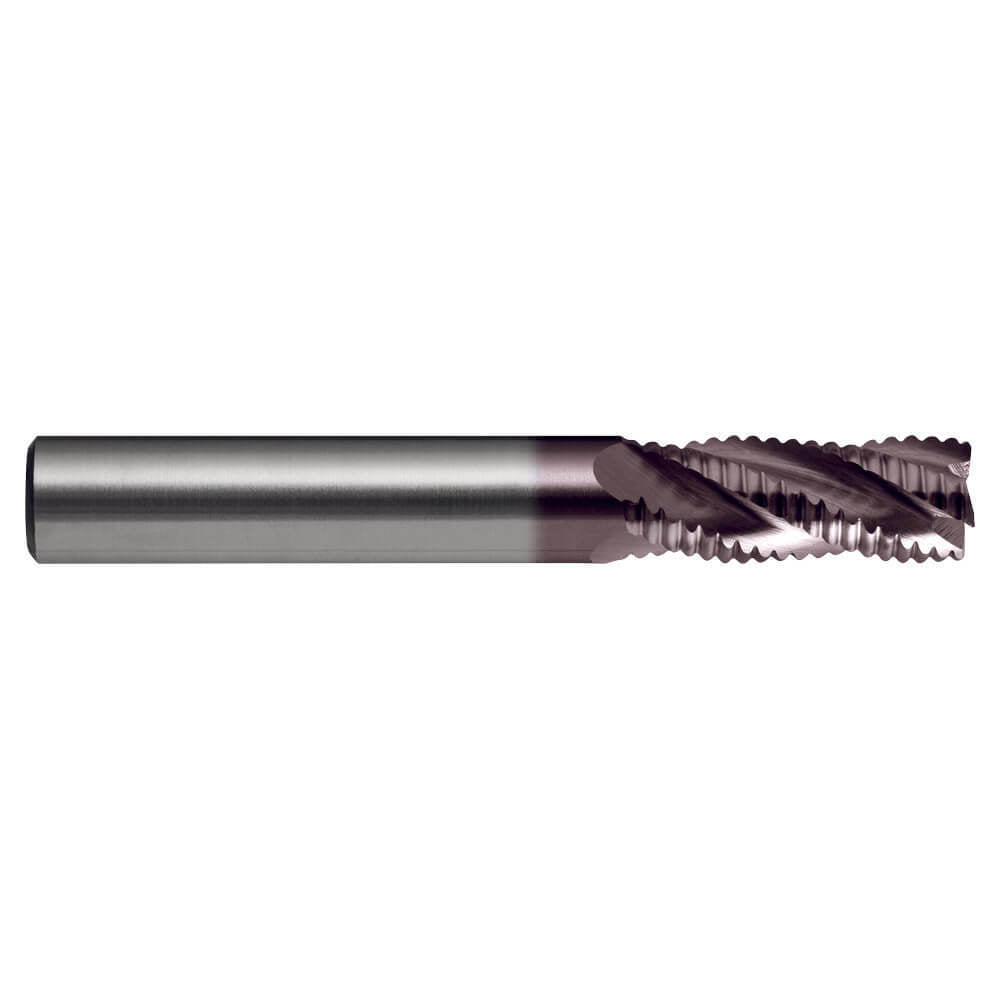

Sutton E547 4mm Roughing Endmill 3 Flute - Carbide VHM - TiAlN - Regular
Available
The Sutton E547 is a roughing endmill with 3 to 4 flutes, depending on size, made from solid carbide (VHM), with a TiAlN coating. It is in the regular length series. This listing covers 8 metric sizes from 4 mm to 20 mm.

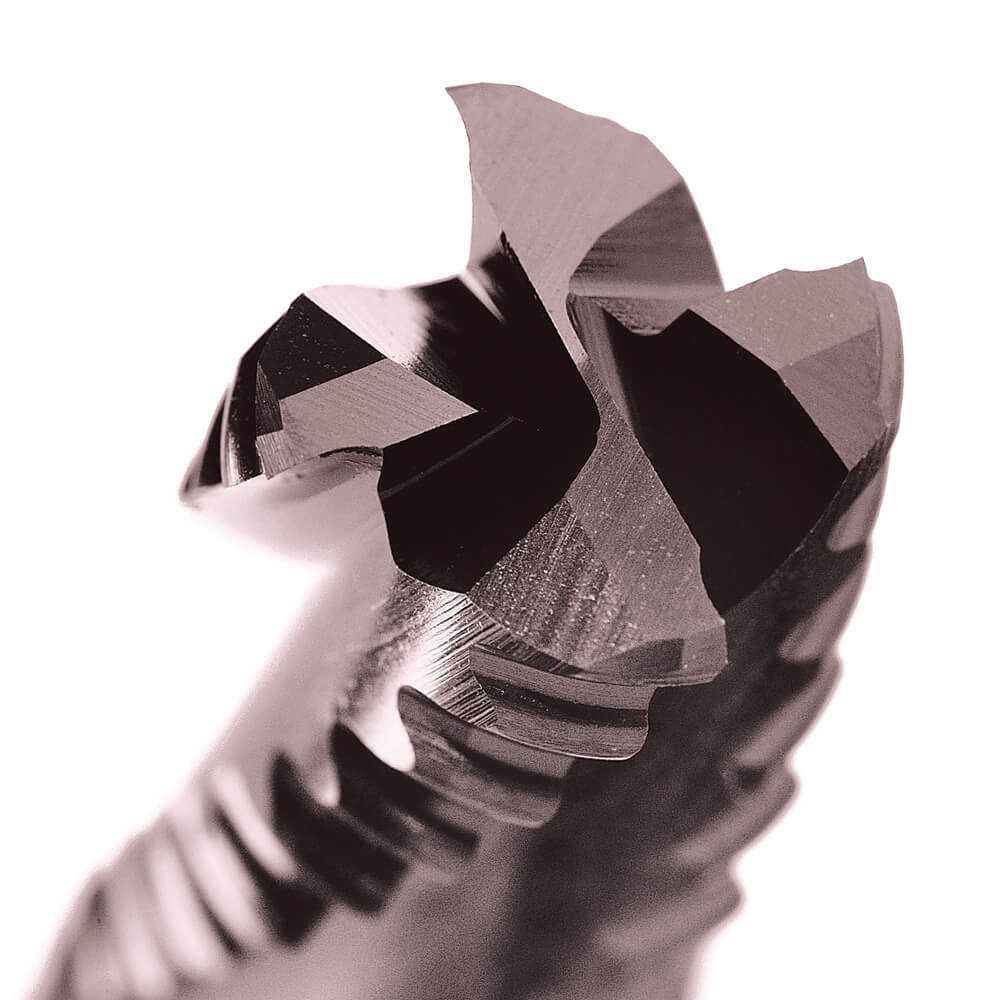

The cutting edge has a 30° helix with NR (normal) geometry and the designation is N. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and js14 cutting diameter tolerance. The cutting length is to DIN 6527 L.
Where this product is used
- Roughing.
- Heavy cuts, where the NR geometry allows for them.
- Materials up to 1600 N/mm2.
Design features
- Solid carbide (VHM) construction.
- TiAlN coating for longer tool life.
- 3 to 4 flutes, 30° helix with NR (normal) geometry.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) js14, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

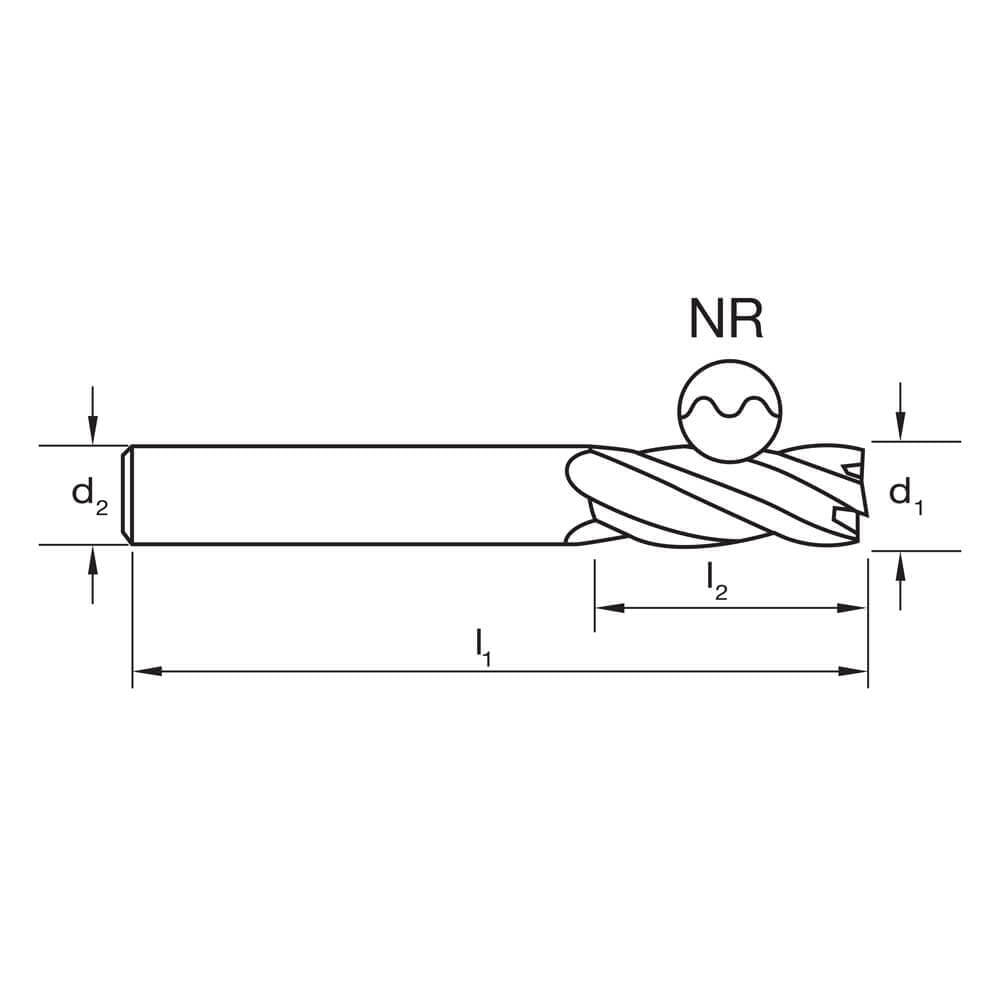

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E547 0400 | 4 | 57 | 11 | 6 | 3 |
| E547 0500 | 5 | 57 | 13 | 6 | 3 |
| E547 0600 | 6 | 57 | 13 | 6 | 3 |
| E547 0800 | 8 | 63 | 19 | 8 | 3 |
| E547 1000 | 10 | 72 | 22 | 10 | 4 |
| E547 1200 | 12 | 83 | 26 | 12 | 4 |
| E547 1600 | 16 | 92 | 32 | 16 | 4 |
| E547 2000 | 20 | 104 | 38 | 20 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E547 |
| Type | Roughing Endmill, 3-4 flute, regular length |
| Material | solid carbide (VHM) |
| Finish | TiAlN |
| Helix / geometry | R30 NR |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | js14 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 8 sizes, 4 to 20 mm |
Related products
Related Sutton carbide roughing endmills: E548 metric roughing endmill (regular), TiAlN, Weldon flat shank, E549 metric roughing endmill (regular), AlCrN, plain shank, E550 metric roughing endmill (regular), AlCrN, Weldon flat shank.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton E547 Metric 3-4 Flute Roughing Endmill - Carbide VHM - TiAlN - Regular - HA: 57 / 4
SKU: A0009800 | Model: E5470400
This is the 57mm overall length, cutting tip 4 option of the Sutton E547 Metric 3-4 Flute Roughing Endmill - Carbide VHM - TiAlN - Regular - HA. Key details for this option: overall length 57mm, flute length 11mm.
Description
The Sutton E547 is a roughing endmill with 3 to 4 flutes, depending on size, made from solid carbide (VHM), with a TiAlN coating. It is in the regular length series. This listing covers 8 metric sizes from 4 mm to 20 mm.
The cutting edge has a 30° helix with NR (normal) geometry and the designation is N. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and js14 cutting diameter tolerance. The cutting length is to DIN 6527 L.
