Sutton E5500400 4 x 57mm 3 Flute Roughing Endmill Carbide AlCrN Regular

Sutton E5500500 5 x 57mm 4 Flute Roughing Endmill Carbide AlCrN Regular

Sutton E5500800 8 x 63mm 4 Flute Roughing Endmill Carbide AlCrN Regular

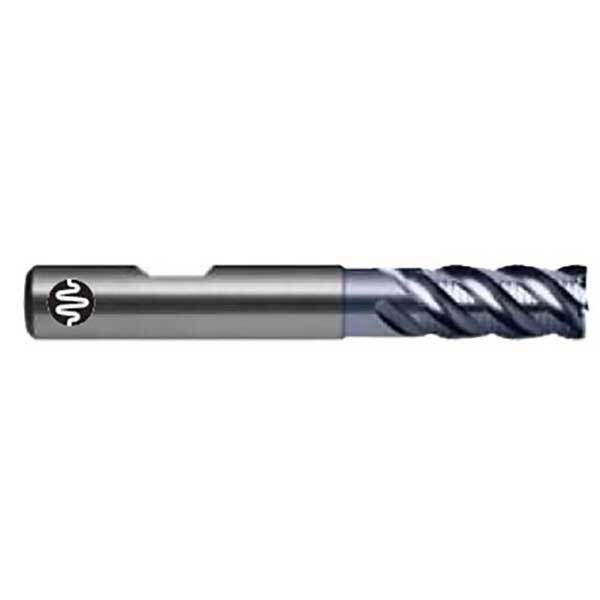

Sutton E5501000 10 x 72mm 4 Flute Roughing Endmill Carbide AlCrN Regular

Sutton E5501200 12 x 83mm 4 Flute Roughing Endmill Carbide AlCrN Regular

Sutton E5501400 14 x 83mm 4 Flute Roughing Endmill Carbide AlCrN Regular

Sutton E5501600 16 x 92mm 5 Flute Roughing Endmill Carbide AlCrN Regular

Sutton E5501800 18 x 92mm 5 Flute Roughing Endmill Carbide AlCrN Regular

Sutton E5502000 20 x 104mm 6 Flute Roughing Endmill Carbide AlCrN Regular

Sutton E5502500 25 x 120mm 6 Flute Roughing Endmill Carbide AlCrN Regular

Description +

Rougher - HRS (fine) - R45 UNI - Regular - Harmony

For roughing applications

Specifications +

Specifications

Designation: UNI
Material: VHM-ULTRA
Finish: AlCrN
Helix Angle: R45
Shank Tolerance: h6

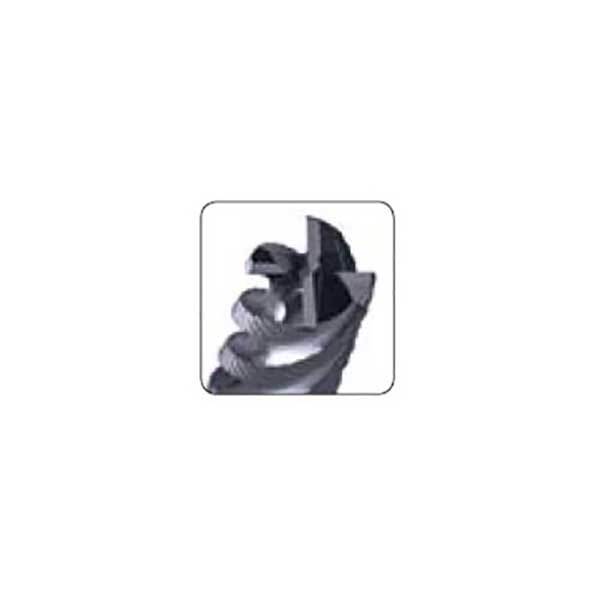

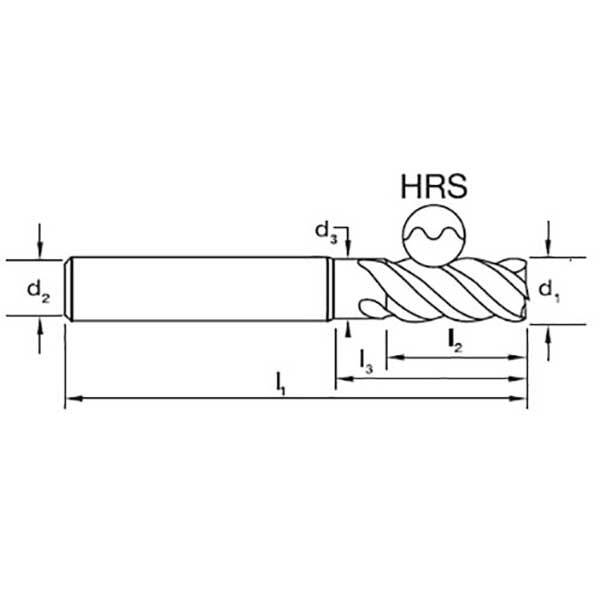

Geometry: 45 HRS
Standard: DIN6527L

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
Optimal for Stainless Steel – Austenitic- 180 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Cast Iron, Malleable – Ferritic- 130 HB
Optimal for Cast Iron, Malleable – Pearlitic- 230 HB

Features & Benefits +

Features

VHM-ULTRA grade of carbide for high performance
HRS geometry allows for heavy cuts in short & long chipping materials
Suitable for materials up to 1600 N/mm2
AlCrN for longer tool life

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E550 3 Flute Endmill Carbide

SKU: A0129467

Type: Rougher Endmill

$47.21

Inc. GST

Buy It Now

Available

The Sutton E550 3 Flute Endmill Carbide by Sutton Tools is a Rougher Endmill with VHM-ULTRA material. It provides capacity up to 1600 N/mm2 and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB.
