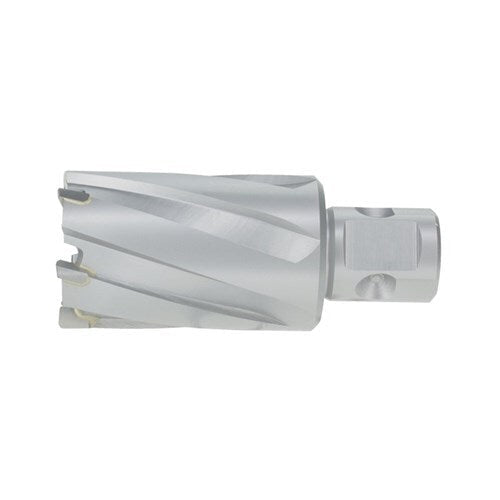

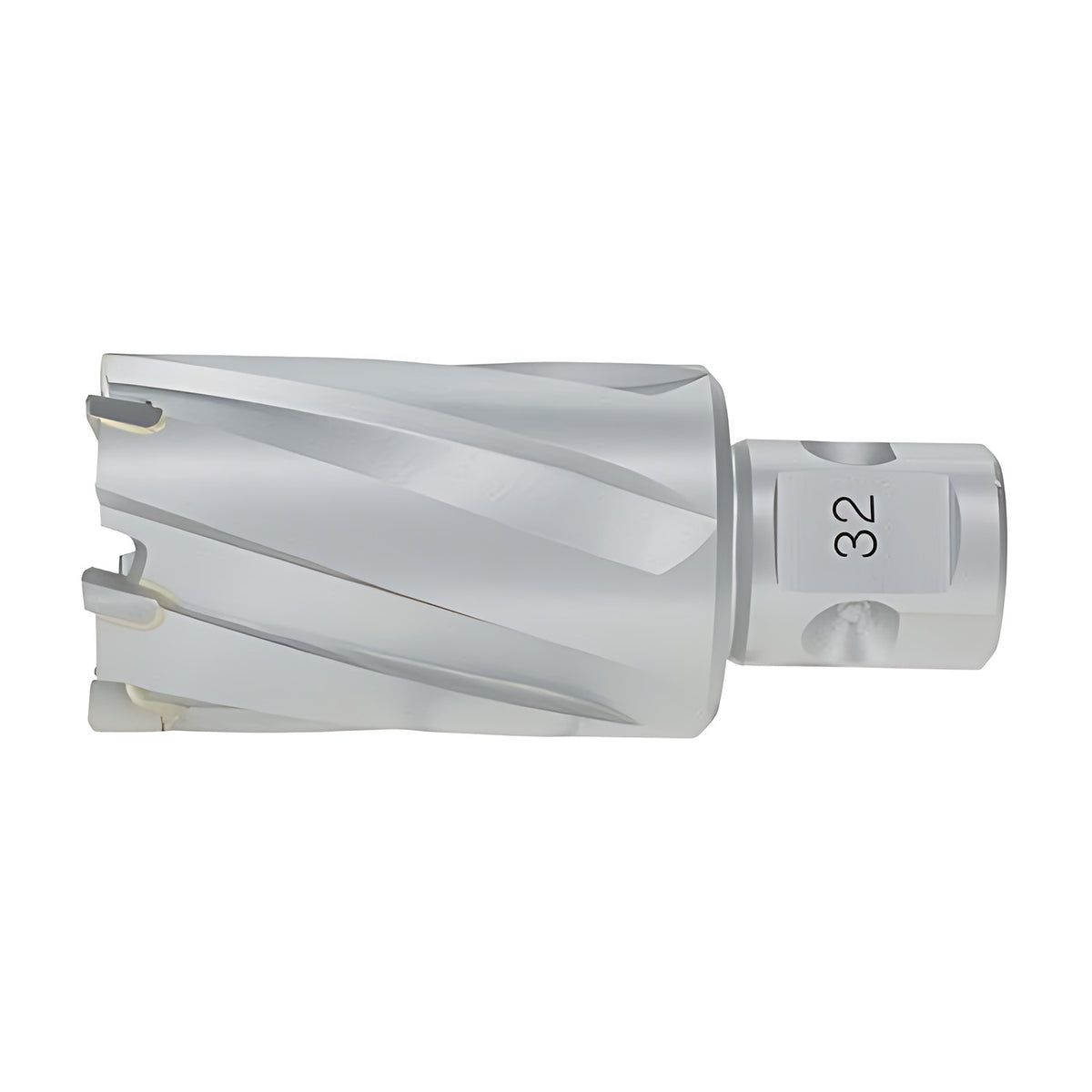

Euroboor HMSU.120 12 x 35mm TCT Annular Cutter

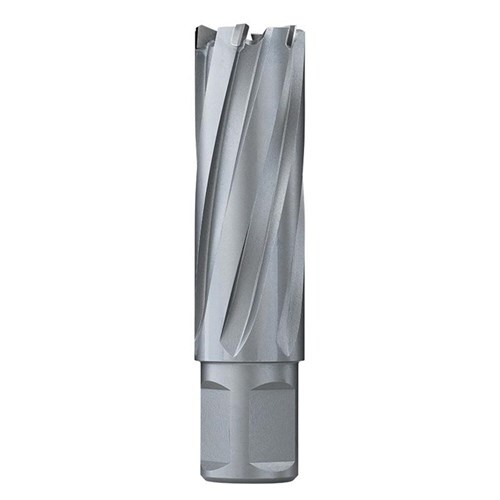

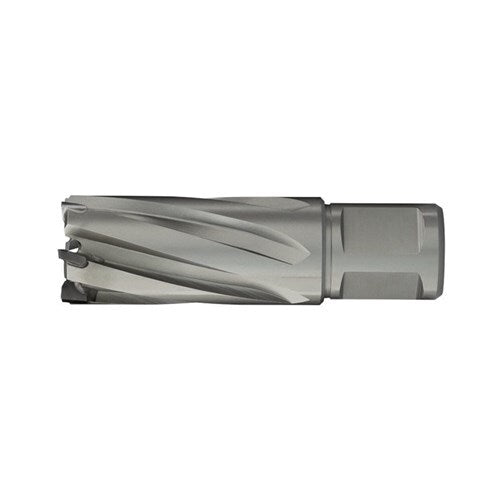

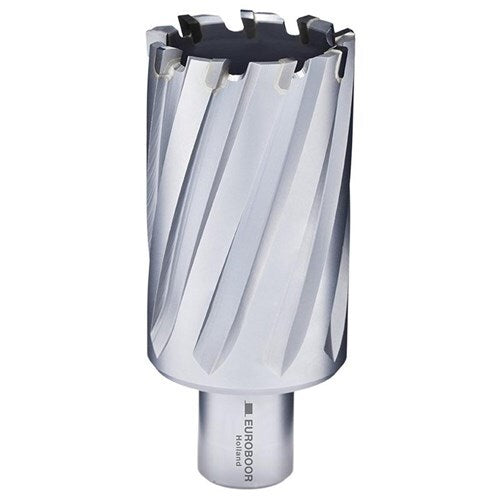

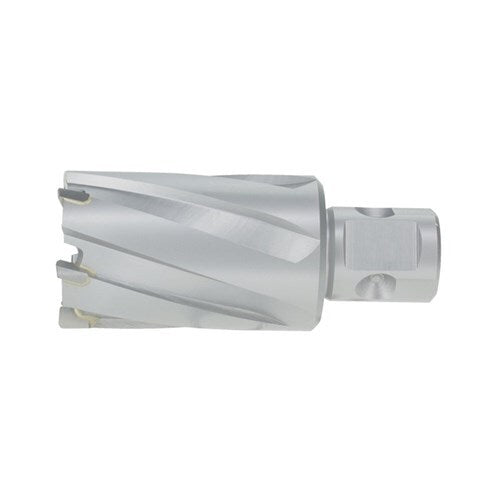

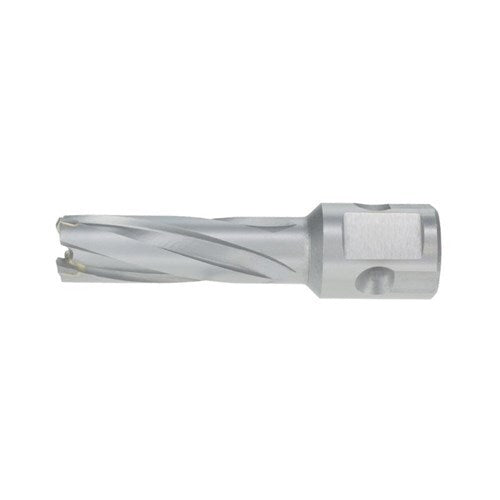

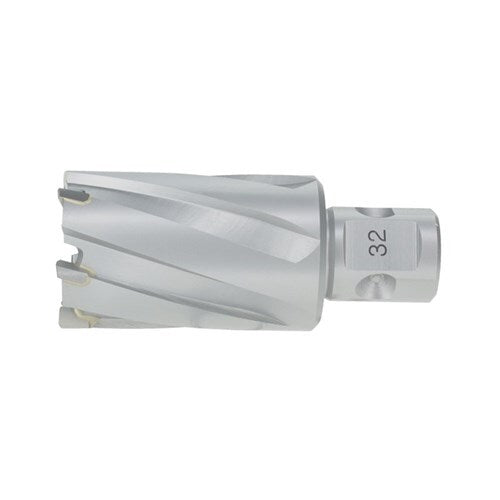

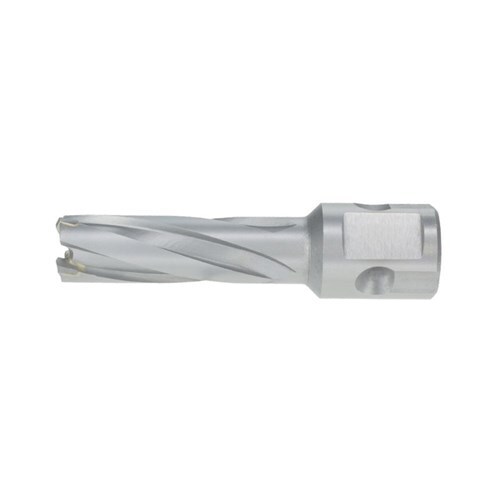

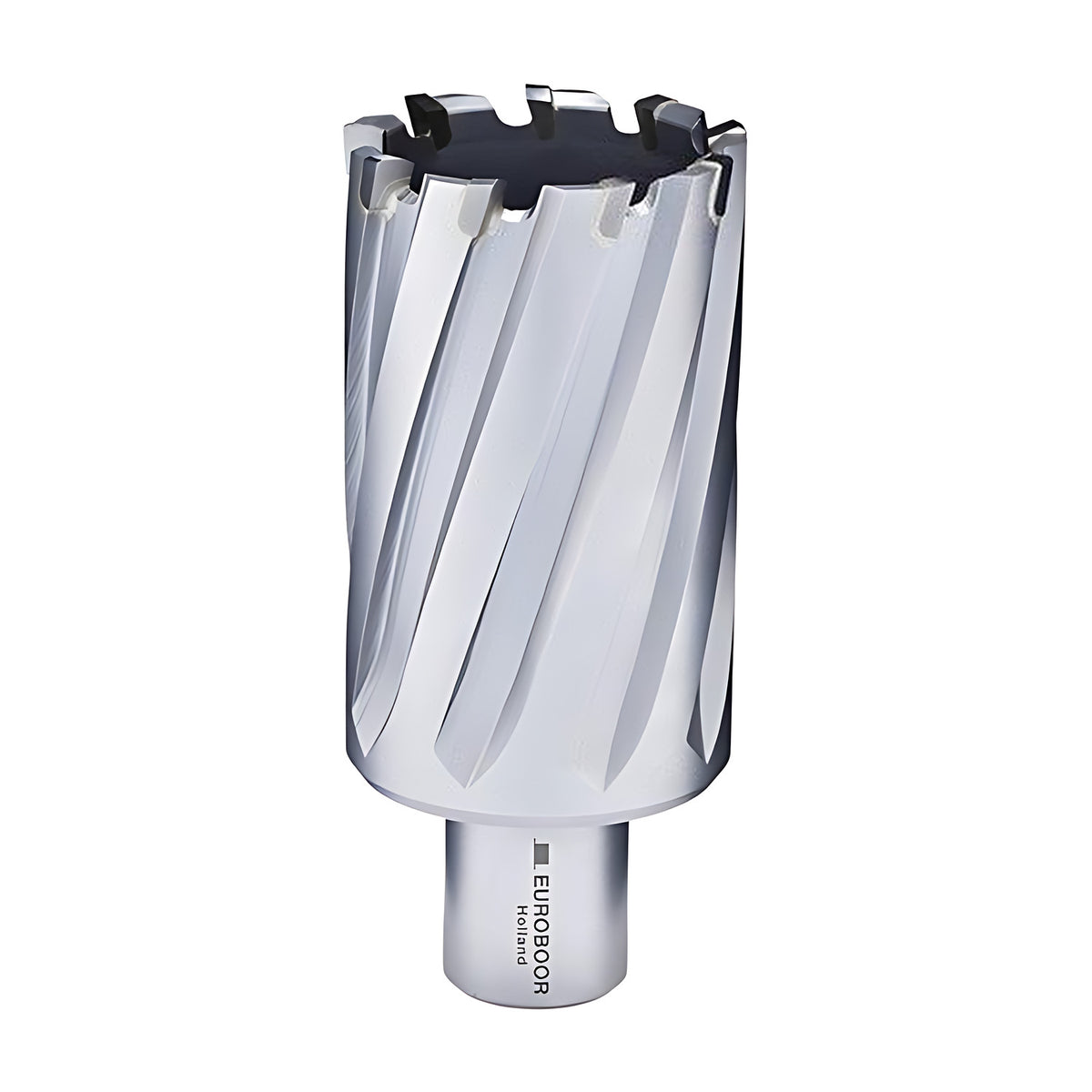

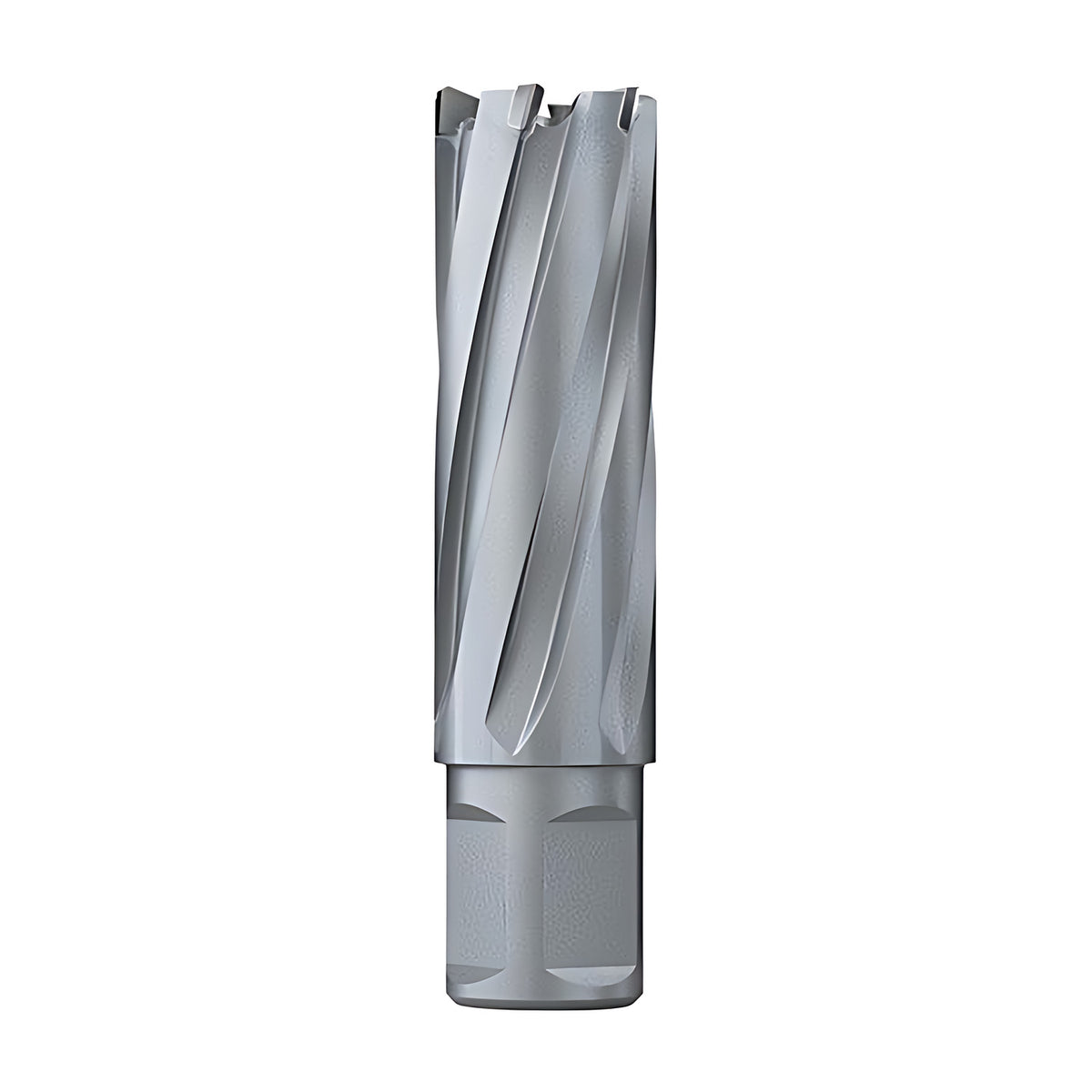

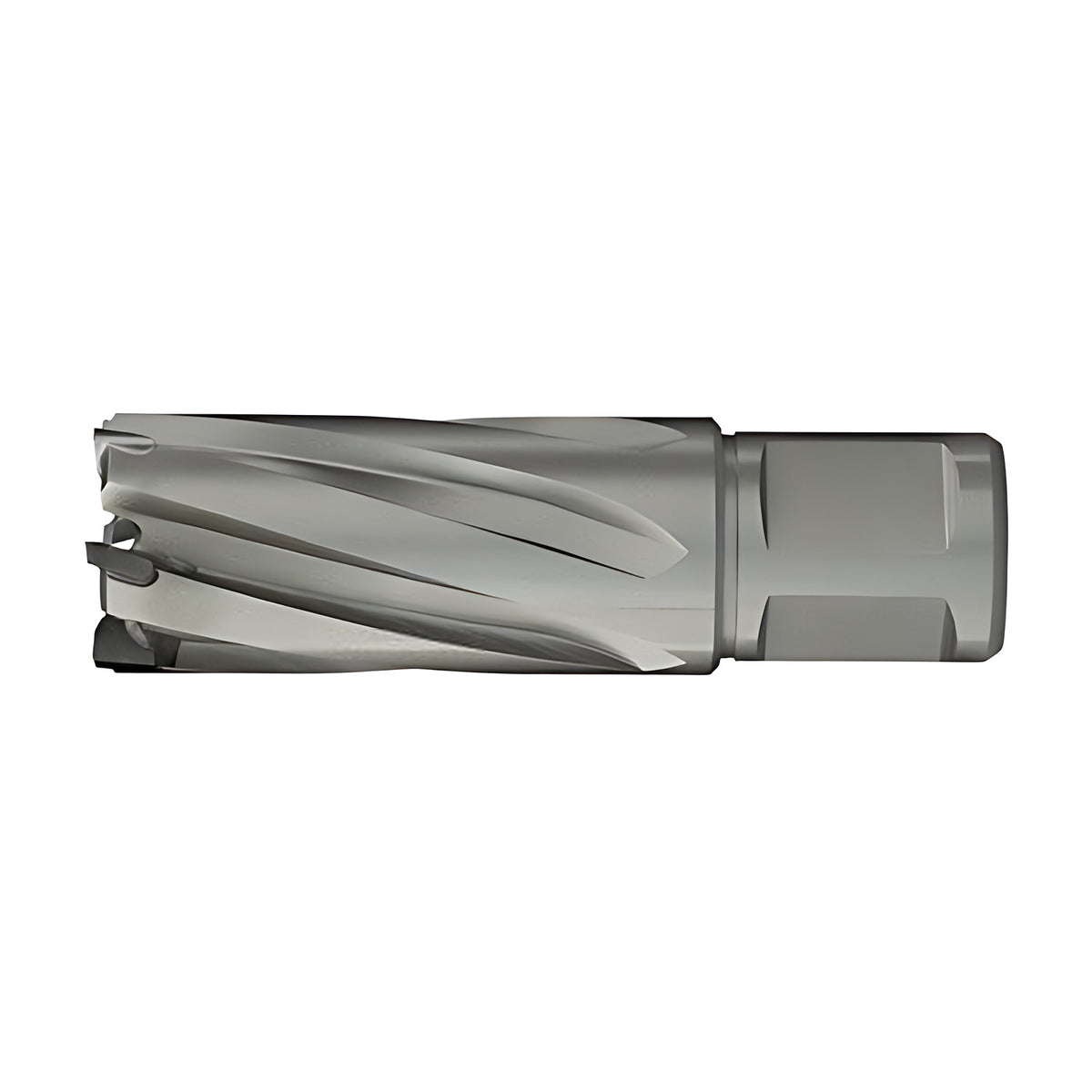

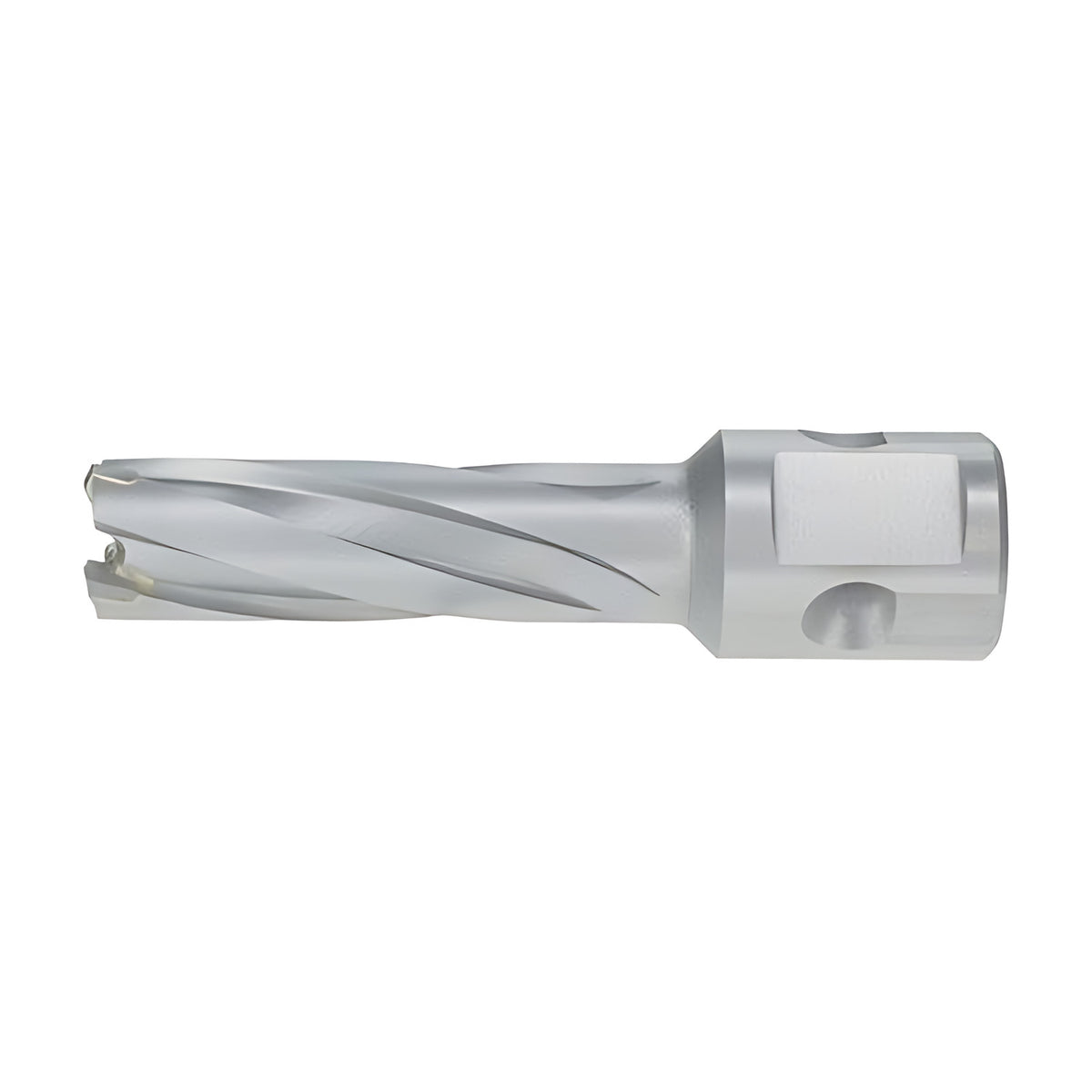

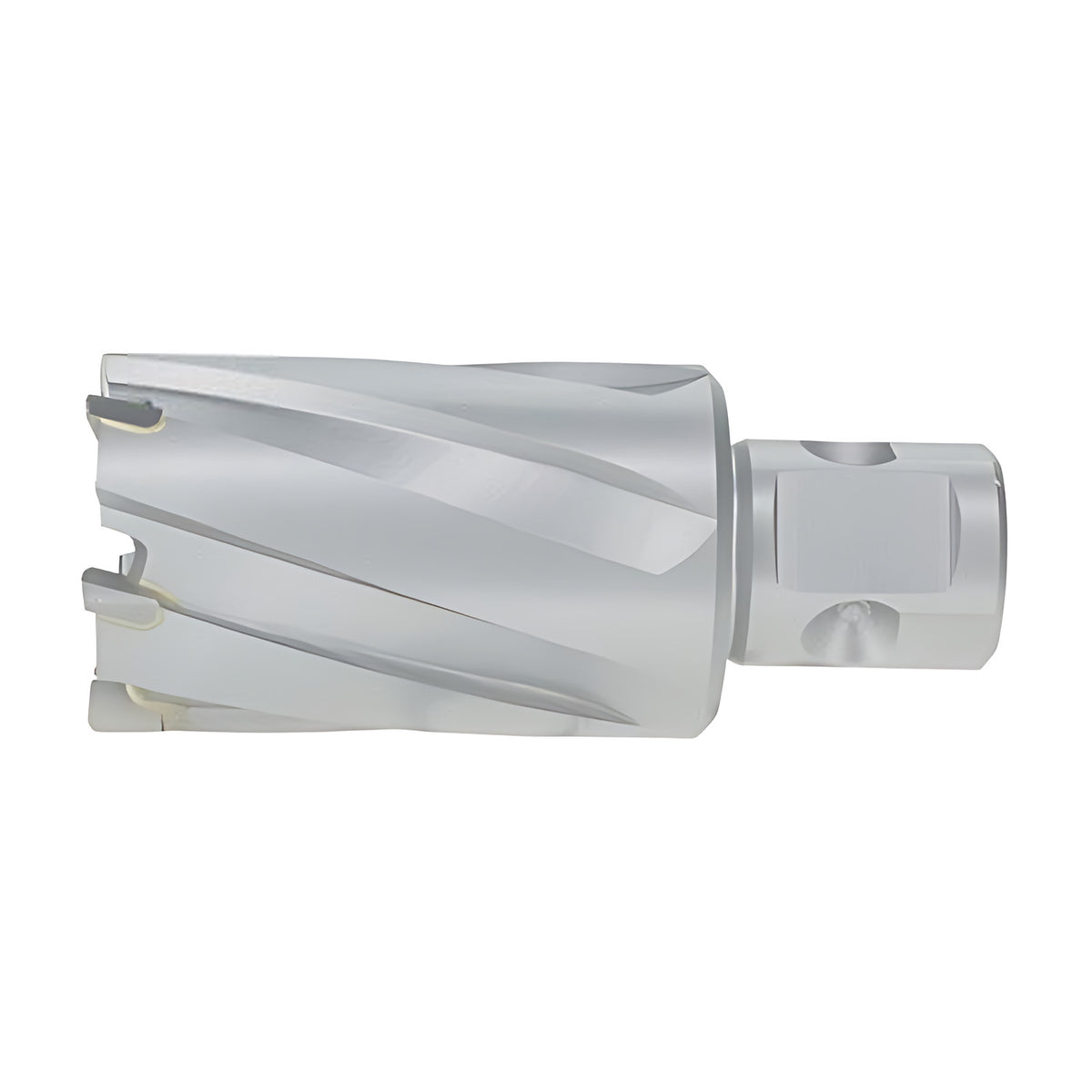

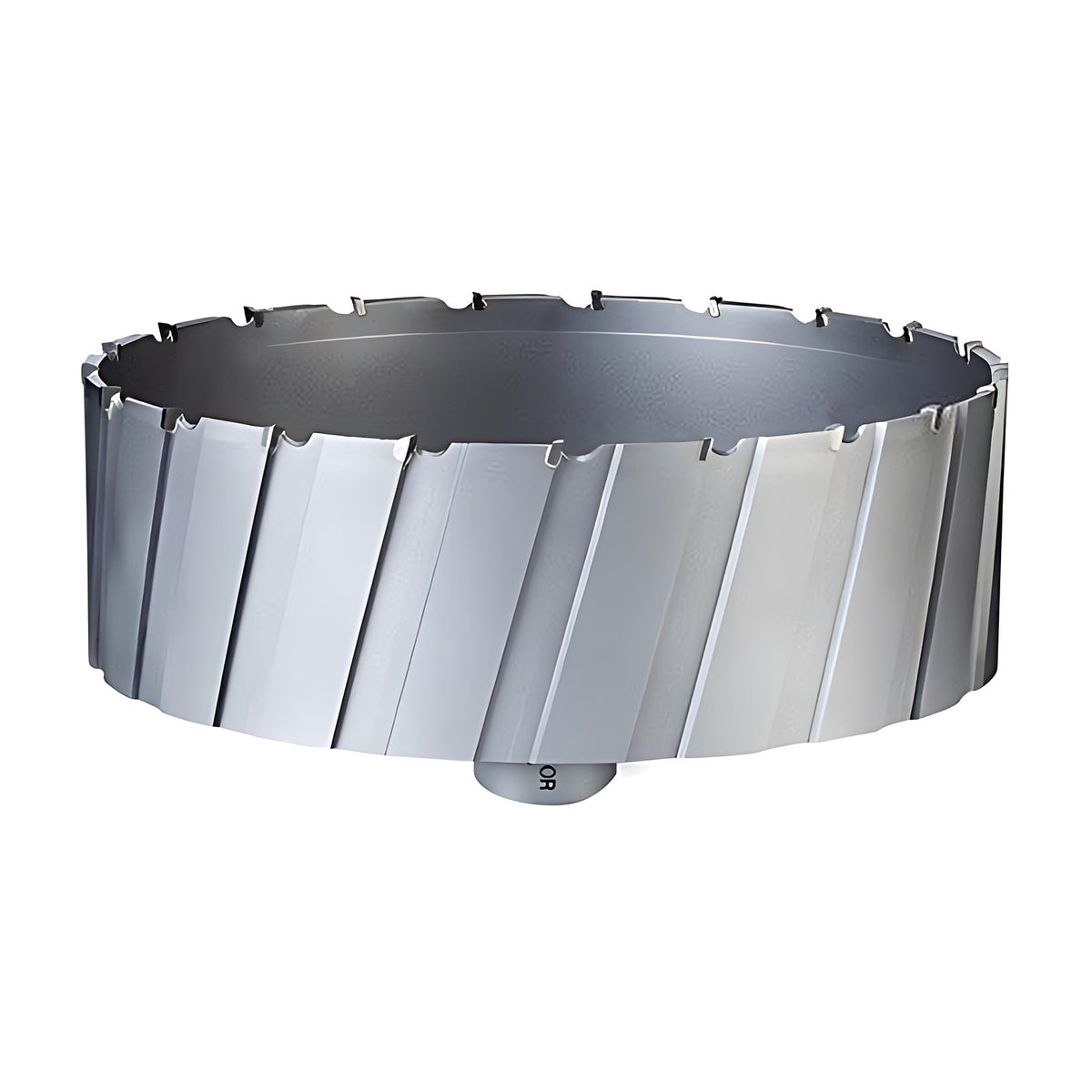

Euroboor 35mm depth of cut TCT annular cutters are tungsten carbide tipped cutters with a 19.05mm (3/4") Nitto/Weldon shank, produced for very hard and difficult materials such as Hardox, stainless steel and railway tracks (manufacturer-stated). This page lists 35 sizes from 12mm to 52mm diameter.

Sizes run in 1mm steps from 12mm to 40mm, then in 2mm steps to 52mm. The Euroboor catalogue lists IBC.70 as the pilot pin for 12mm to 16mm and IBC.85 for 17mm to 52mm (manufacturer-stated).

Euroboor states that the cutting teeth are tungsten carbide, precision welded to a body made from a strong, specially selected alloy, that TCT cutters excel at higher cutting speeds and need a higher speed than HSS cutters, and that the teeth can be sharpened (manufacturer-stated).

Where this product is used

• Drilling stainless steel on a magnetic drilling machine
• Drilling very hard materials such as Hardox
• Drilling aluminium and exotic materials such as Inconel and Hastelloy
• Drilling railway tracks

Features

• Tungsten carbide tipped cutter with a 35mm depth of cut (manufacturer-stated)
• 12mm to 52mm diameters (manufacturer-stated)

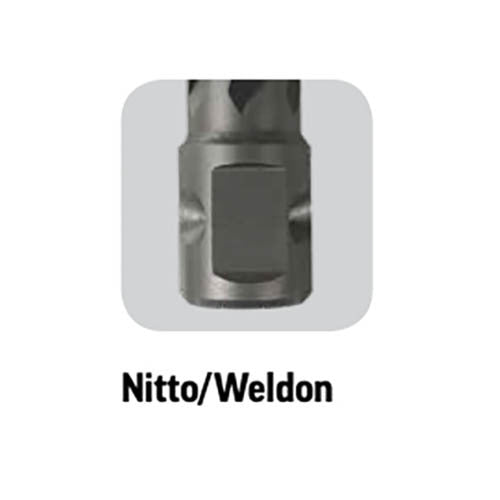

• 19.05mm (3/4") Nitto/Weldon shank (manufacturer-stated)
• Pilot pin IBC.70 for 12mm to 16mm, IBC.85 for 17mm to 52mm (manufacturer-stated)
• Tungsten carbide teeth precision welded to the cutter body (manufacturer-stated)
• Teeth can be sharpened (manufacturer-stated)

Common specifications

Key specifications

Sizes, depth of cut and pilot pins are from the Euroboor catalogue (manufacturer-stated).

Selecting the right option

Pick the diameter, then the pilot pin shown for that size in the table. This is the 35mm depth of cut TCT series; for a deeper cut see the Euroboor 55mm depth of cut TCT cutters. TCT cutters need a higher speed than HSS cutters (manufacturer-stated), and for plain steel work the 30mm depth of cut HSS cutters or 55mm depth of cut HSS cutters may be the more usual choice. Pilot pins are listed in the Euroboor ejection pilot pin range.

Related products

See also the Euroboor ejection pilot pins, and the MT2 arbor and MT3 arbor for connecting a Weldon cutter to a drilling machine.
