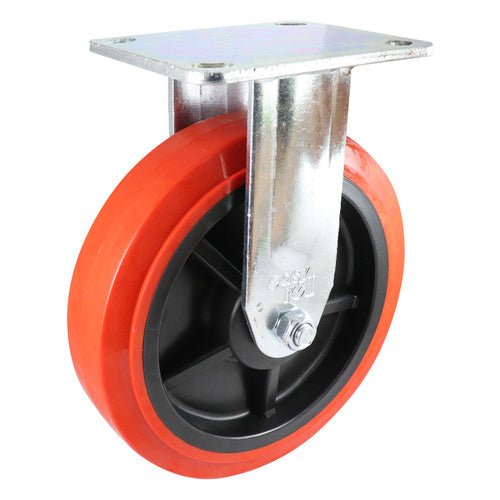

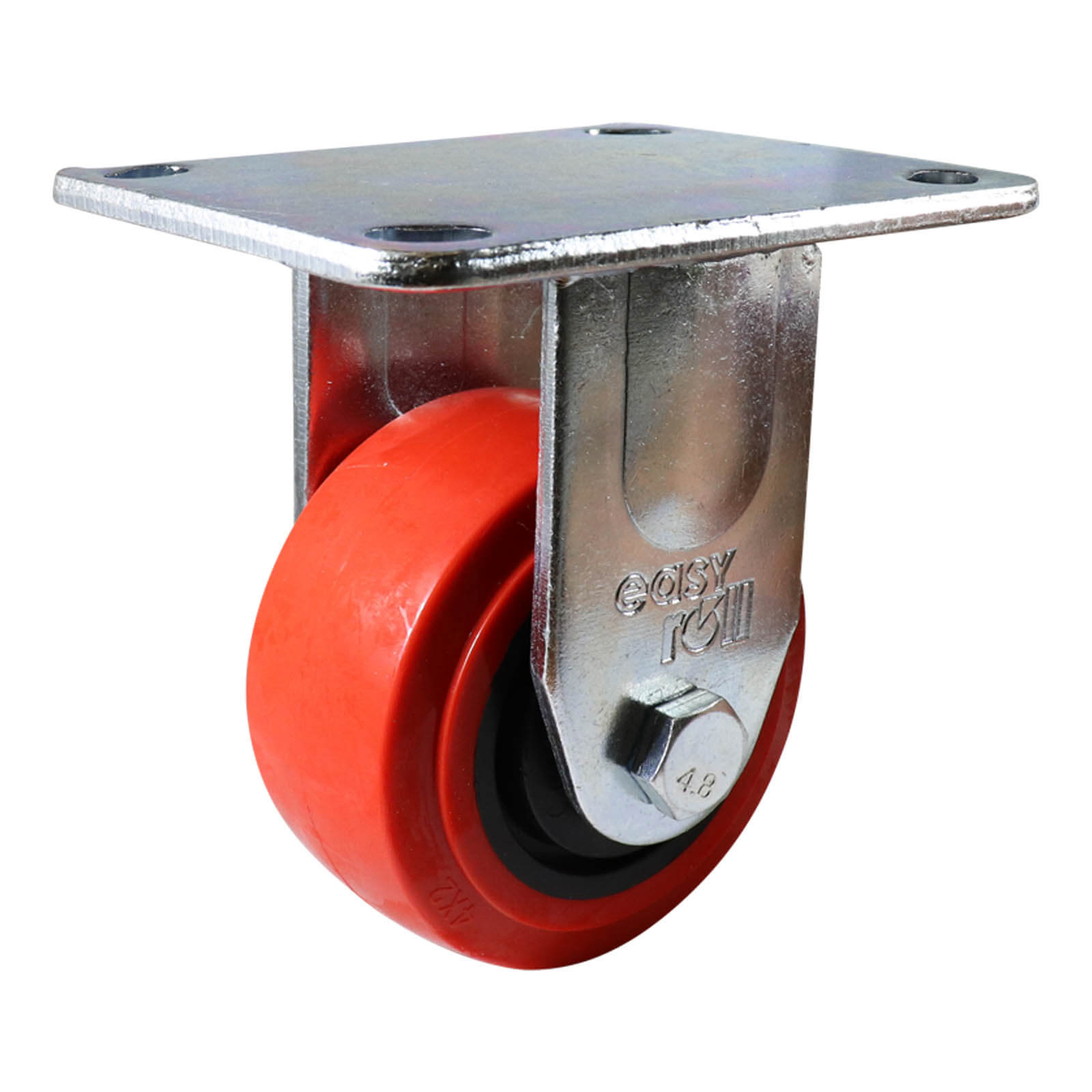

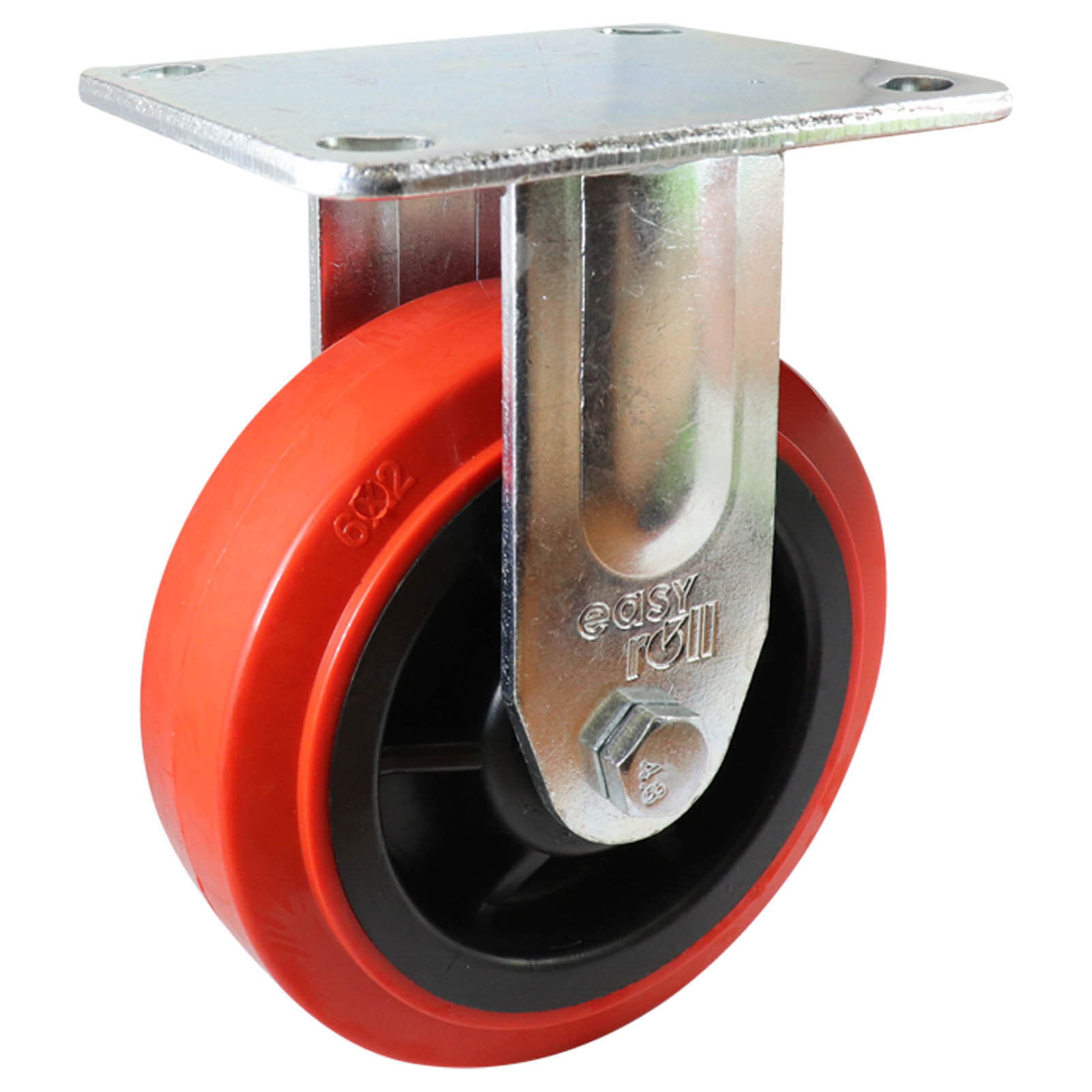

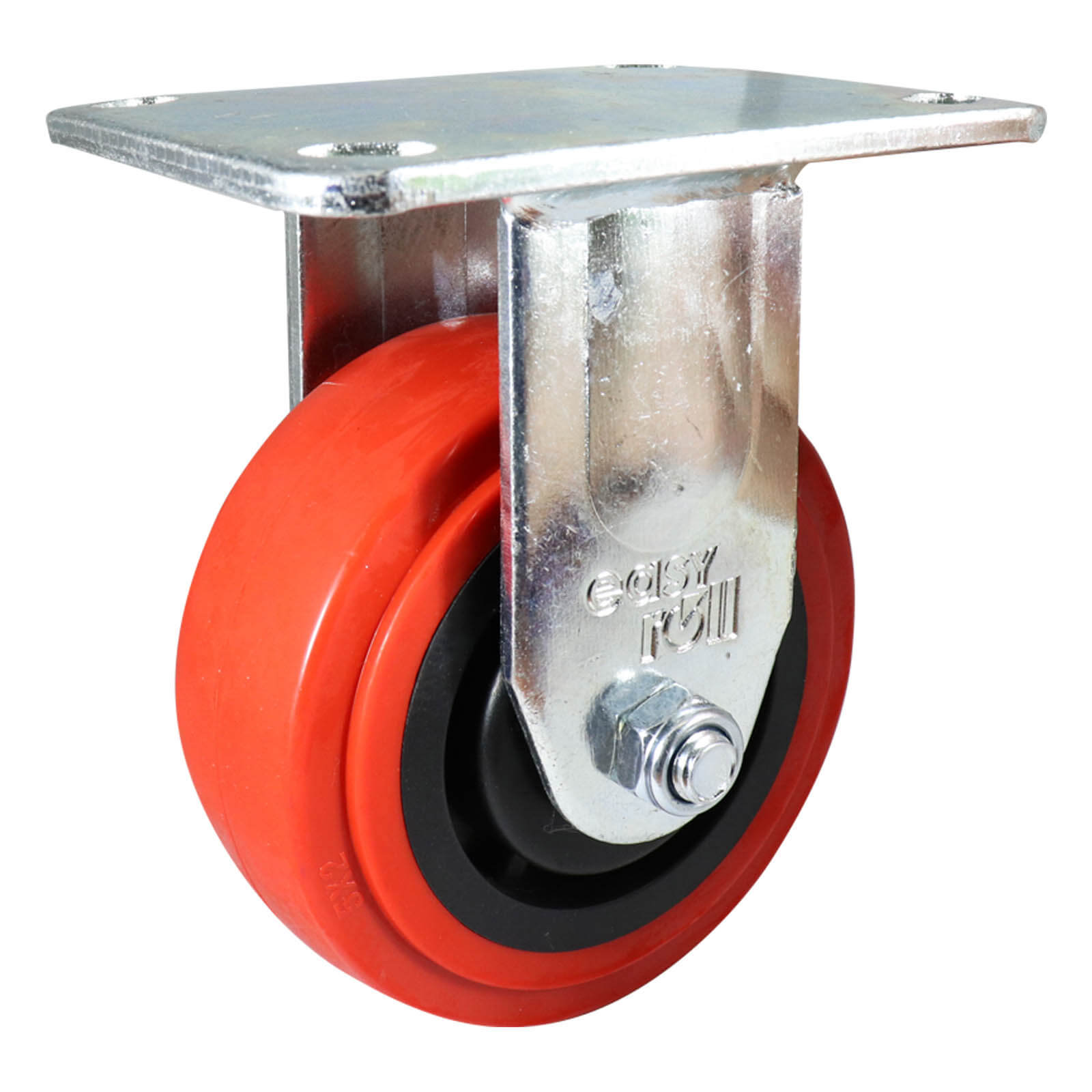

EasyRoll j3 series fixed plate castor J33AZ84K100

The EasyRoll J3 series fixed plate castor is fitted with a red urethane wheel and is available in 100, 125, 150 and 200mm wheel diameters. Load capacity is 210kg to 400kg per castor depending on the wheel size. The top plate is 135 x 110mm with hole centres of 105 x 80mm.

The J3 series is suited to general and stock picking trolleys, dollies and stillages and catering and industrial laundry equipment. It has precision wheel bearings.

Where this product is used

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Features

• Red urethane wheel in 100, 125, 150 and 200mm
• Load capacity 210kg to 400kg per castor
• Heavy duty fabricated construction withstands high impact loads
• Dust sealing rings extend the life of the bearings
• Grease nipple to the headset bearings
• All wheels come with precision bearings
• Robust brake assembly with an adjustable brake

Key specifications

Choosing the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Polyurethane wheels: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. It is the best all-round choice and suited to all surfaces, including irregular ones. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
