Gates 2/XPB4000 (9685-40002) Quad-Power
Available
This Gates PowerBand V-belt XPB section is a genuine Gates product engineered for reliable power transmission across industrial, agricultural and automotive applications. Gates V-belts are manufactured to ISO and RMA standards and stocked by AIMS Industrial for fast supply across Australia.
Where this product is used
Gates V-belts cover the full range of industrial, agricultural and automotive drive applications. Common end uses include:
- Industrial drive systems — air compressors, pumps, fans, blowers and generators across manufacturing and utilities
- Agricultural machinery including combine harvesters, grain augers, irrigation pumps and crop-processing equipment
- HVAC and refrigeration plant — chillers, cooling towers, air handlers and refrigeration compressors
Key specifications
| Specification | Detail |
|---|---|
| Belt Section | XPB |
| Series | Quad-Power 4 PowerBand — Quad-Power 4 raw-edge, moulded-notch belts joined into a matched multi-rib set with a tie band |

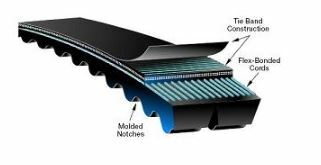

| Construction | Raw edge, moulded-notch (cogged) construction proportional to cross-section; exclusive EPDM compound; precision-ground sidewalls; Flex-Bonded polyester tensile cords; enhanced blue adhesion layer; double Flex-Weave textile backing; non-self-igniting; static conductive (ISO 1813 & RMA IP3-3). Single strands joined with a tie band (PowerBand) to keep the set matched as one unit. |

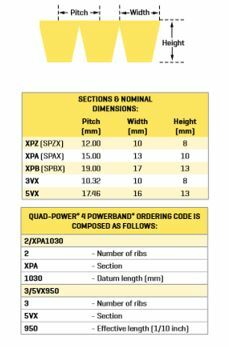

| Rib Pitch | 19.00 mm |
| Nominal Dimensions (Width x Height, per rib) | 17 x 13 mm |
| Temperature Range | -50°C to +130°C |
| Belt Matching | Meets Gates UNISET tolerances — any belt of the same section and length matches any other; no belt-matching required. |
Selecting the right option
Select by belt section first, then by pitch length. Classical sections run A, B, C, D, E (or Z in metric) — cross-reference to the metric ISO equivalent (13A, 17A, 22A) where needed. Narrow sections (3V/SPA, 5V/SPB, 8V/SPC) carry more power in the same envelope. The XP series (XPZ/XPA/XPB/XPC) are notched versions for improved flex efficiency. Gates PowerBand banded belts join multiple strands — specify these for long centre distances, vertical drives or where belt whip is an issue. Looking for an automotive serpentine belt? Automotive Micro-V drives use the K section — see our automotive Micro-V range and match by OE reference or by rib count and pitch length. When in doubt, call AIMS — power transmission is our specialty and we'll confirm the right cross-reference.
