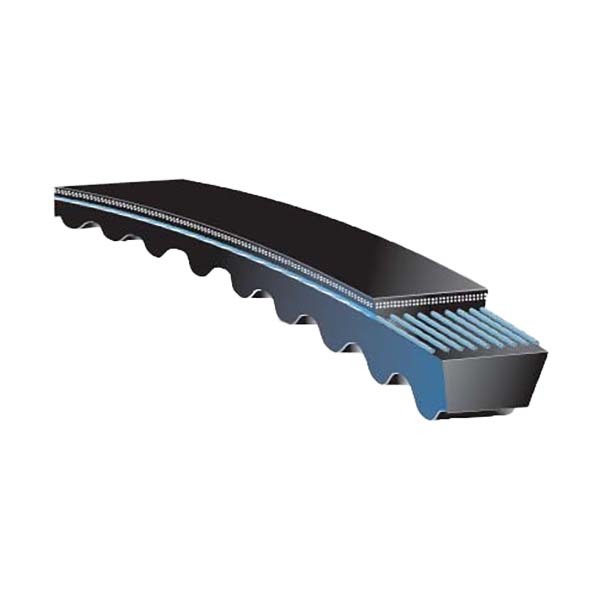

Gates AX21 (9012-2021) Tri-Power Notched

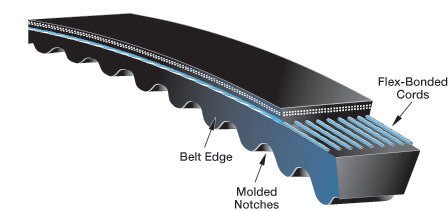

Gates Tri-Power notched (cogged) classical V-belts AX section offer improved flexibility over standard wrapped belts, allowing operation on smaller sheave diameters with reduced heat build-up. The cogged construction increases the power rating of classical A/B/C section drives without changing the sheave profile.

Where this product is used

Gates V-belts cover the full range of industrial, agricultural and automotive drive applications. Common end uses include:

• Industrial drive systems — air compressors, pumps, fans, blowers and generators across manufacturing and utilities
• Agricultural machinery including combine harvesters, grain augers, irrigation pumps and crop-processing equipment
• HVAC and refrigeration plant — chillers, cooling towers, air handlers and refrigeration compressors

Key specifications

Selecting the right option

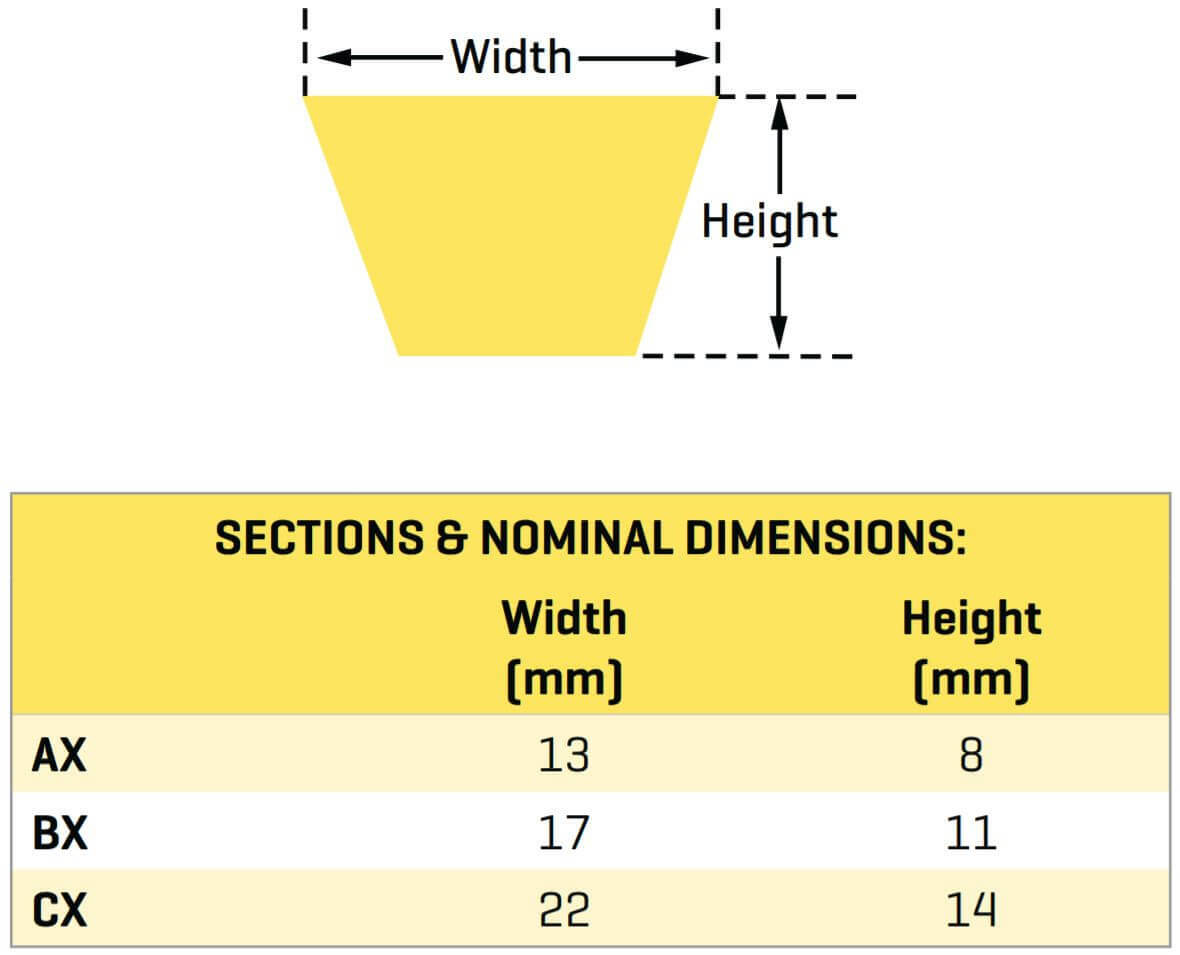

Select by belt section first, then by pitch length. Classical sections run A, B, C, D, E (or Z in metric) — cross-reference to the metric ISO equivalent (13A, 17A, 22A) where needed. Narrow sections (3V/SPA, 5V/SPB, 8V/SPC) carry more power in the same envelope. The XP series (XPZ/XPA/XPB/XPC) are notched versions for improved flex efficiency. Gates PowerBand banded belts join multiple strands — specify these for long centre distances, vertical drives or where belt whip is an issue. Looking for an automotive serpentine belt? Automotive Micro-V drives use the K section — see our automotive Micro-V range and match by OE reference or by rib count and pitch length. When in doubt, call AIMS — power transmission is our specialty and we'll confirm the right cross-reference.
