Loc-Line magnetic manifold kit

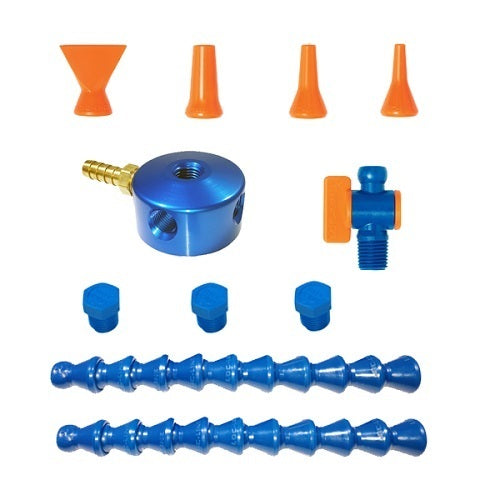

Loc-Line 40463 is the 1/4" magnetic base manifold kit for the 1/4" Loc-Line modular hose system (Lockwood Products, USA). the range pack list is two 5-3/4" long segments, one 1/4" MNPT valve, a 1" flare nozzle, 1/4", 1/8" and 1/16" round nozzles, a magnetic base manifold, three 1/4" plugs and one 1/4" barb.

A Prop 65 warning applies to 40463 (see the specification).

Where this product is used

• Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
• Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning

Features

• Pack list: 2 hose segments, 1 MNPT valve, 1 flare nozzle, 3 round nozzles, 1 magnetic base manifold, 3 plugs, 1 barb
• Single 1/4" male NPT valve in the pack (the range calls it a 1/4" MNPT valve)
• Made for the 1/4" Loc-Line modular hose system
• System: 1/4" Loc-Line modular hose

Key specifications

Supplied with

• 2 x 5-3/4" long hose segments
• 1 x 1/4" MNPT valve
• 1 x 1" flare nozzle
• 1 x 1/4" round nozzle
• 1 x 1/8" round nozzle
• 1 x 1/16" round nozzle
• 1 x Mag. Base Manifold
• 3 x 1/4" Plugs
• 1 x 1/4" Barb

Choosing the right option

Choose 40463 for a 1/4" magnetic base manifold with two segments, one valve and four nozzles in one part number. For the manifold alone see 40400; for five valves, eight segments and eight nozzles see the super kit 40480. 1/4" parts do not fit hose from another system.

Other magnetic base manifold parts: magnetic base manifold (40400), magnetic base manifold super kit (40480).

Parts in the kit: 1/4" male NPT valves (21192, 29452), 1/4" round nozzles, 1/8" round nozzles.

See also: 1/4" brass hose barb (40488).
