Loc-Line magnetic manifold super kit

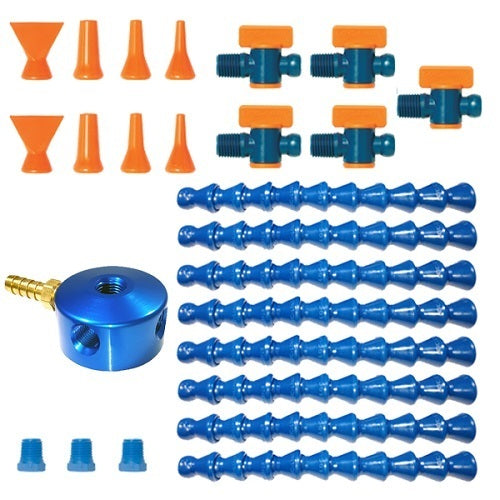

Loc-Line 40480 is the 1/4" magnetic base manifold super kit for the 1/4" Loc-Line modular hose system (Lockwood Products, USA). the range pack list is eight 5-3/4" long segments, five 1/4" MNPT valves, two 1" flare nozzles, two each of the 1/4", 1/8" and 1/16" round nozzles, a magnetic base manifold, three 1/4" plugs and one 1/4" barb.

It has the largest pack list of the three magnetic base manifold parts (40400, 40463 and 40480). A Prop 65 warning applies to 40480 (see the specification).

Where this product is used

• Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
• Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning

Features

• Pack list: 8 hose segments, 5 MNPT valves, 2 flare nozzles, 6 round nozzles, 1 magnetic base manifold, 3 plugs, 1 barb
• Five 1/4" MNPT valves in the pack (the range calls them 1/4" MNPT valves)
• Made for the 1/4" Loc-Line modular hose system
• System: 1/4" Loc-Line modular hose

Key specifications

Supplied with

• 8 x 5-3/4" long hose segments
• 5 x 1/4" MNPT valves
• 2 x 1" flare nozzles
• 2 x 1/4" round nozzles
• 2 x 1/8" round nozzles
• 2 x 1/16" round nozzles
• 1 x Mag. Base Manifold
• 3 x 1/4" Plugs
• 1 x 1/4" Barb

Choosing the right option

Choose 40480 when you want a 1/4" magnetic base manifold with five valves, eight segments and eight nozzles in one part number. For fewer parts see the kit 40463 (one valve, two segments) or the manifold alone, 40400. 1/4" parts do not fit hose from another system.

Smaller magnetic base manifold packs: 1/4" magnetic base manifold kit (40463), magnetic base manifold (40400).

Parts in the kit: 1/4" male NPT valves (21192, 29452), 1/4" round nozzles, 1/8" round nozzles.

See also: 1/4" brass hose barb (40488).
