Loc-Line 1/4" modular hose
Available

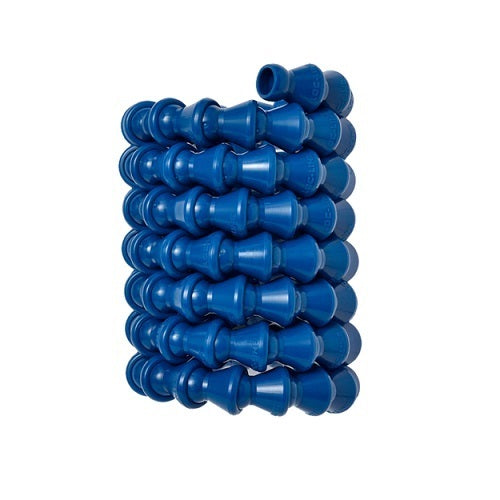

Loc-Line 49419 is a 5 ft coil of 1/4" modular hose. It belongs to the 1/4" Loc-Line modular hose system (Lockwood Products, USA), where 1 segment counts as 10 elements. This is the base part number 49419, with no colour suffix.
The hose is a ball and socket assembly with enough friction between the parts for it to stay in position once set. The 1/4" system has a standard line pressure of 55 PSI with a flow rate of 250 gal/hr, and up to 110 PSI with element clamps on all joints, fully tightened. every application has variables that affect the maximum hose pressure; testing is recommended whenever possible. Standard acetal parts, which include the blue, black, grey and white colours, with a maximum operating temperature of 170 °F and a melting point of 329 °F.
Where this product is used
- Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
- Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning
Features
- Ball and socket hose that stays in position once set
- Contents (1) 5 ft coil, the range counts 1 segment as 10 elements
- Standard line pressure 55 PSI at 250 gal/hr for the 1/4" system, up to 110 PSI with element clamps on all joints, fully tightened
- Acetal: maximum operating temperature 170 °F, melting point 329 °F
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loc-Line |
| System | 1/4" Loc-Line modular hose |
| Pack contents | (1) 5 ft coil |
| Hose construction | 1 segment = 10 elements |
| Colour suffixes | -BLK (black), -G (grey) and -W (white) |
| Line pressure, 1/4" system | 55 PSI standard, up to 110 PSI with element clamps on all joints, fully tightened |
| Flow rate, 1/4" system | 250 gal/hr |
| Acetal temperature data | Maximum operating temperature 170 °F, melting point 329 °F |
Choosing the right option
It is available in the base part number only. The colour suffixes for this hose are -BLK (black), -G (grey) and -W (white), added to the part number when ordering. Match every nozzle, fitting and clamp to the hose system: a 1/4" system part does not fit hose from another system. Use element clamps on all joints if you want to work above the standard line pressure.
Other 1/4" hose parts: 1/4" hose, 50 ft coil (49421), 1/4" hose segments, bulk 25 ft (49420), 1/4" hose segments, pack of 2 (41401).
Matching 1/4" system parts: 1/4" round nozzles, 1/8" round nozzles, 1/4" NPT connectors.
Acid resistant 1/4" hose parts: acid resistant 1/4" hose, 50 ft coil, acid resistant 1/4" hose segment pack.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Loc-Line Hose - 5 Foot Coil for 1/4" Modular Hose
SKU: A0106992 | Model: 49419
Loc-Line 49419 is a 1/4" modular hose. System: 1/4" Loc-Line modular hose. Pack contents: (1) 5 ft coil.
