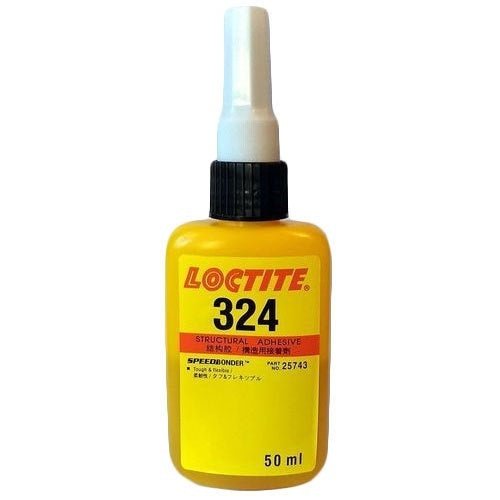

Loctite AA 324 Structural Adhesive 50ml

Loctite AA 324, also known as Loctite 324, is a one-component structural acrylic adhesive based on urethane methacrylate ester. It is a transparent light amber liquid of medium viscosity and needs no mixing.

It is a general purpose structural adhesive formulated for toughness and impact strength, and it cures anaerobically with Activator 7387. Henkel names electric motors and loudspeaker hardware, for bonding ferrites and plated materials, as typical uses.

Where this product is used

• General purpose structural bonding where toughness and impact strength matter
• Electric motors
• Loudspeaker hardware, for bonding ferrites and plated materials
• Bonding with Activator 7387 on one or both surfaces, tested on grit-blasted steel
• Joints with a recommended bondline of 0.1 mm, up to a maximum of 0.5 mm

Features

• One component, no mixing
• Urethane methacrylate ester chemistry, formulated for toughness and impact strength
• Cures anaerobically with Activator 7387
• Transparent light amber liquid, medium viscosity at 17,000 mPa·s
• 18 N/mm² lap shear on grit-blasted steel at a 0 mm gap (24 h at 23 °C, activator on one side)
• Tensile strength 34 N/mm² with 170 % elongation at break (cured 7 days at 23 °C)
• Full strength typically in 24 to 72 hours

Key specifications

Selecting the right option

Loctite AA 324 and Loctite AA 330 Structural Acrylic Adhesive Cartridge 300ml are both activator-cured acrylics with a recommended bondline of 0.1 mm. The cartridge grade is the higher viscosity of the two.

The activator for Loctite AA 324 is Loctite 7387 Activator 100ml.

Using it

Apply Activator 7387 to one surface and the adhesive to the other, then assemble and hold clamped until the adhesive has fixtured. The recommended bondline gap is 0.1 mm.

For larger gaps, up to a maximum of 0.5 mm, or for a faster cure, apply the activator to both surfaces and assemble within 1 minute.

Cure speed depends on the materials, the gap and the temperature; the cure-speed graphs are in the Henkel data sheet. Full strength is typically reached in 24 to 72 hours.

Storage and handling

Store unopened, in a dry place, between 8 °C and 21 °C. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.

Limits and safety

Not normally recommended for plastics, particularly thermoplastics, where stress cracking could result. Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidising materials. The Henkel data sheet states no operating temperature range. Read the safety data sheet before use.

Frequently asked questions

How strong is Loctite AA 324?

Lap shear on grit-blasted steel after 24 hours at 23 °C with Activator 7387 on one side is 18 N/mm² at a 0 mm gap and 11 N/mm² at a 0.5 mm gap (ISO 4587).

What bond gap should I use with Loctite AA 324?

The recommended bondline gap is 0.1 mm. For gaps up to a maximum of 0.5 mm, apply the activator to both surfaces and assemble within 1 minute.

Do I need an activator with Loctite AA 324?

Yes. It is an anaerobic adhesive used with Activator 7387, applied to one surface, or to both for larger gaps or a faster cure.

How long until Loctite AA 324 reaches full strength?

Typically 24 to 72 hours, depending on the bond gap, the materials and the conditions. Hold the parts clamped until the adhesive has fixtured.

Can I use Loctite AA 324 on plastics?

It is not normally recommended for plastics, particularly thermoplastics where stress cracking could result.

Is Loctite 324 the same as Loctite AA 324?

Yes. The Henkel data sheet is titled Loctite AA 324 and states that the product is known as Loctite 324.
