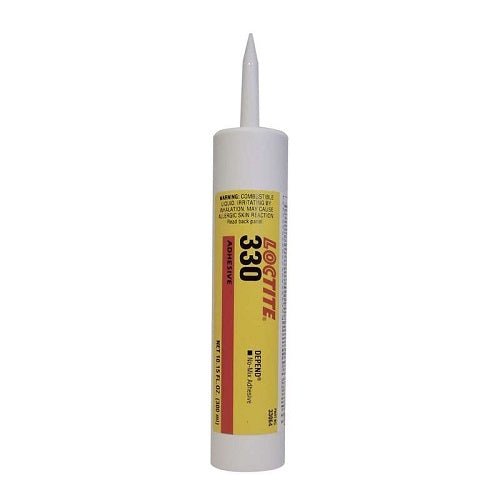

Loctite AA 330 Structural Acrylic Adhesive Cartridge 300ml
Available
Loctite AA 330, also known as Loctite 330, is a one-component, high viscosity acrylic adhesive based on urethane methacrylate ester. It needs no mixing and cures with Loctite Activator 7387 or 7386.
It is a general-purpose adhesive for metal, wood, ferrite, ceramic and plastic. Typical uses include tool handles, appliances, sporting goods and decorative trim.
Where this product is used
- Tool handles
- Appliances
- Sporting goods
- Decorative trim
- General bonding of metal, wood, ferrite, ceramic and plastic
Features
- One component, no mixing
- Activator cure with Loctite Activator 7387 or 7386
- High viscosity: 45,000 to 90,000 mPa·s (Brookfield RVT, 25 °C)
- 15 to 30 N/mm² lap shear on grit-blasted mild steel with activator on one side
- 16.5 N/mm² or more lap shear with activator on both surfaces
- Registered to NSF Category P1 as a sealant where there is no possibility of food contact (regional approval)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loctite |
| Chemical type | Urethane methacrylate ester |
| Colour (uncured) | Slightly cloudy, colourless to pale yellow liquid |
| Components | One component, no mixing |
| Cure | Activator cure, Activator 7387 or 7386 |
| Viscosity (Brookfield RVT, 25 °C, spindle 7, 20rpm) | 45,000 to 90,000 mPa·s |
| Recommended bondline / maximum gap | 0.1mm / 0.5mm (activator on both surfaces) |
| Assembly time | Within 15 minutes with activator on one surface; within 1 minute with activator on both |
| Lap shear, activator on one side (grit-blasted mild steel, 24 h at 22 °C, ISO 4587) | 15 to 30 N/mm² |
| Lap shear, activator on both sides (same conditions) | 16.5 N/mm² or more |
| Tensile strength (ISO 6922, activator on one side, 24 h at 22 °C) | 12 to 22 N/mm² |
| Full strength | Typically 24 to 72 hours |
| Storage | 8 °C to 21 °C, unopened, dry |
Choosing the right option
Loctite AA 330 is the higher viscosity of the two activator-cured acrylics here and comes as a cartridge. For a medium viscosity liquid in a smaller pack, see Loctite AA 324 Structural Adhesive 50ml.
The activator is Loctite 7387 Activator 100ml.
See also: Loctite AA 324 Structural Adhesive 50ml, Loctite 7387 Activator 100ml, Loctite 3801 Epoxy Adhesive Syringe 29.5ml, Loctite HY 4070 Universal Repair Hybrid Adhesive 11g.
Using it
Apply the activator to one surface and the adhesive to the other, and assemble within 15 minutes. For larger gaps or a faster cure, apply the activator to both surfaces and assemble within 1 minute.
Hold the parts clamped until the adhesive has fixtured.
Full strength is typically reached in 24 to 72 hours, depending on bond gap, materials and conditions. The recommended bondline is 0.1mm, with a maximum gap of 0.5mm.
Storage and handling
Store unopened, in a dry place, between 8 °C and 21 °C. Storage below 8 °C or above 28 °C can adversely affect the properties of the product. Do not return used product to the container.
Limits and safety
Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidising materials. Resistance to acetone and unleaded petrol is low. The NSF P1 registration is a regional approval; confirm it with your local Henkel Technical Service Centre. Read the safety data sheet before use.
Not well.
After 350 hours it keeps 10% of its initial strength in acetone and 20% in unleaded petrol.
